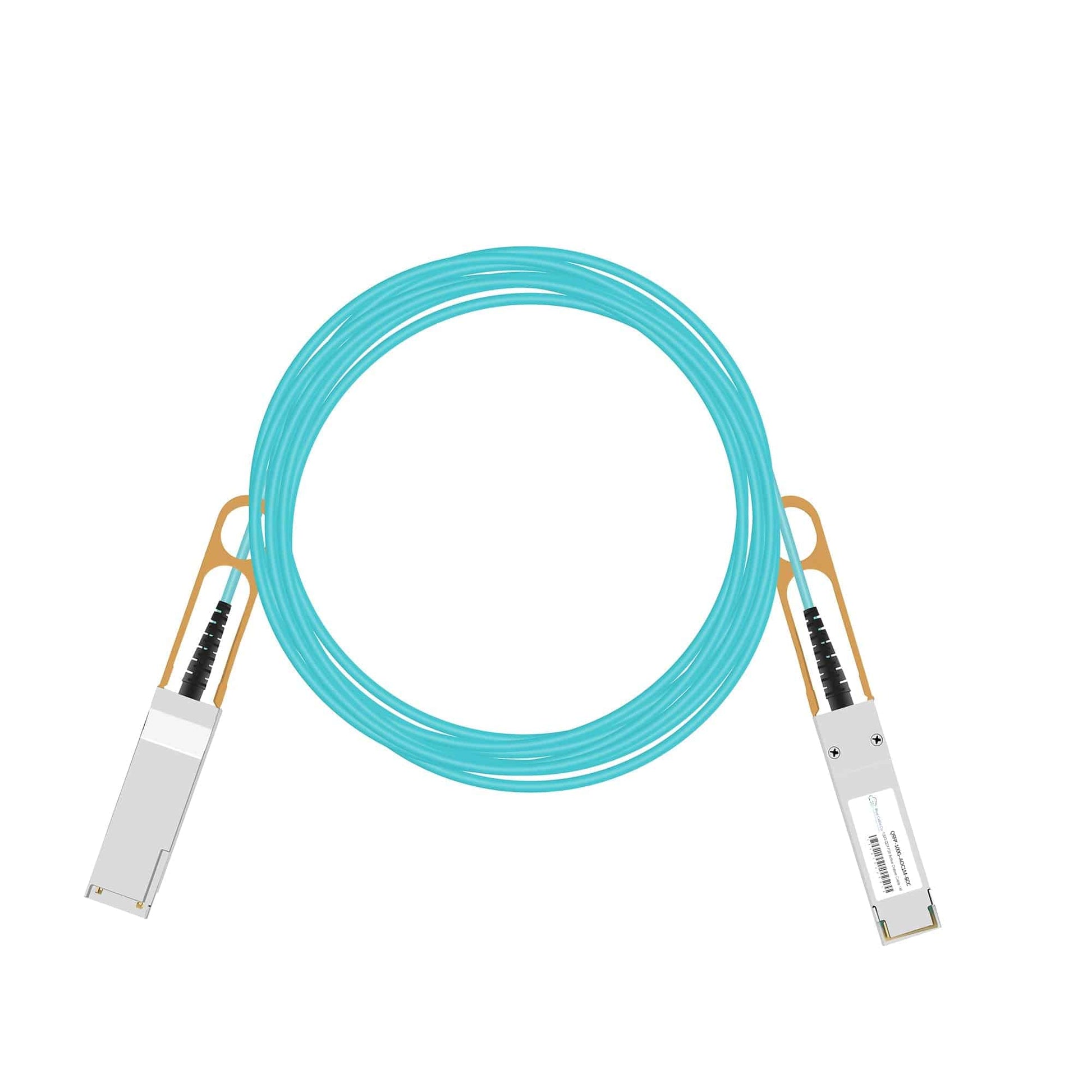

• A light blue active optical cable with gold connectors and silver metallic housing compatible with nvidia mellanox 100gbe
1 1

Blue Cable Co

Blue Cable Co | NVIDIA Mellanox Compatible 100GbE QSFP28 to QSFP28 Active Optical Cable (100GBASE-AOC)

Blue Cable Co | NVIDIA Mellanox Compatible 100GbE QSFP28 to QSFP28 Active Optical Cable (100GBASE-AOC)

MFA1A00-C003-BCC

In stock:1

$317.90 AUD
$317.90 AUD
$317.90 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Blue Cable Co 100GbE QSFP28 active optical cables (AOC) deliver reliable 100Gb/s connectivity between QSFP28 ports over multi-mode fibre, compatible with NVIDIA Mellanox platforms. VCSEL-based optics are integrated directly into the QSFP28 connectors at each end, enabling reaches well beyond passive copper DAC cables while remaining hot-pluggable and plug-and-play. Available in lengths from 3m to 30m, all variants feature an LSZH jacket for data centre fire safety compliance and support selectable per-lane retiming for signal integrity over longer runs.

  • Plug-and-play active optical cable — no separate transceivers required
  • 100GbE QSFP28 to QSFP28 AOC, NVIDIA Mellanox compatible
  • Available in 3m, 5m, 10m, 20m, and 30m lengths — select your variant above
  • VCSEL-based optics integrated into QSFP28 connectors at both ends
  • 100Gb/s aggregate via 4x25Gb/s NRZ lanes over multi-mode fibre
  • Selectable per-lane retiming for both Tx and Rx — optimised for signal integrity at 25Gb/s
  • LSZH (Low Smoke Zero Halogen) jacket for data centre fire safety compliance
  • Hot-pluggable for live insertion without system downtime
  • BER better than 1E-15
  • Operating case temperature range: 0°C to +70°C
  • Power dissipation: 2.2W typical / 2.5W maximum per end (with retiming)
  • RoHS compliant

Features

- NVIDIA Mellanox compatible 100GbE QSFP28 to QSFP28 active optical cable
- Plug-and-play — no separate transceivers required, hot-pluggable
- Available in 3m, 5m, 10m, 20m, and 30m lengths
- VCSEL optics integrated at both ends — longer reach than passive copper DAC
- 100Gb/s aggregate via 4x25Gb/s NRZ lanes over multi-mode fibre
- Selectable per-lane retiming for Tx and Rx signal integrity
- LSZH jacket for data centre fire safety compliance
- BER better than 1E-15, 2.5W maximum power per end
- RoHS compliant

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
Compatibility: NVIDIA Mellanox compatible
Cable Type: Active Optical Cable (AOC)
Speed: 100Gb/s (4x25Gb/s NRZ lanes)
Connectors: QSFP28 to QSFP28
Fibre Type: Multi-Mode (MMF)
Jacket: LSZH (Low Smoke Zero Halogen)
Compliance: SFF-8665, SFF-8636, RoHS
BER: Better than 1E-15
Power Dissipation (with retiming): 2.2W typical / 2.5W maximum per end
Power Dissipation (without retiming): 1.5W typical / 1.8W maximum per end
Operating Case Temperature: 0°C to +70°C

FAQs

Q1: Which NVIDIA Mellanox platforms are these 100GbE QSFP28 AOC cables compatible with?
A1: These AOC cables are compatible with NVIDIA Mellanox switches and NICs that have QSFP28 ports supporting 100GbE connections. They are designed as compatible replacements for the OEM MFA1A00-C series. Contact our team to confirm fit for a specific platform before ordering.

Q2: What is the difference between this AOC and a 100G passive DAC cable — which should I use?
A2: A passive DAC cable uses copper and is limited to around 5m. This AOC uses optical fibre with active VCSEL transceivers built into both QSFP28 connectors, supporting reaches up to 30m in this range. AOCs are the right choice when you need more reach than copper allows, prefer lighter and more flexible cabling, or require LSZH fire-rated cable in your installation environment.

Q3: Do these AOC cables require separate QSFP28 transceivers to be installed?
A3: No. The optical transceivers are built into the QSFP28 connectors at both ends of the cable. The cable installs as a single unit directly into two QSFP28 ports — no separate modules are needed.

Q4: What does selectable retiming mean, and does it affect how I deploy these cables?
A4: Retiming re-cleans the signal at each end, which helps maintain signal integrity over longer runs at 25Gb/s per lane. It is selectable per lane via the I2C management interface. On NVIDIA Mellanox platforms, retiming configuration is typically handled automatically during link-up. For deployments on non-Mellanox equipment, manual configuration may be needed.

Q5: Are these cables suitable for environments with LSZH cabling requirements?
A5: Yes. All variants use an LSZH (Low Smoke Zero Halogen) jacket, limiting toxic gas and smoke emission in the event of a fire. Note that these cables are LSZH rated, not plenum (OFNP) rated — confirm your site's specific cabling standards before installation if plenum rating is a requirement.
