ATEN

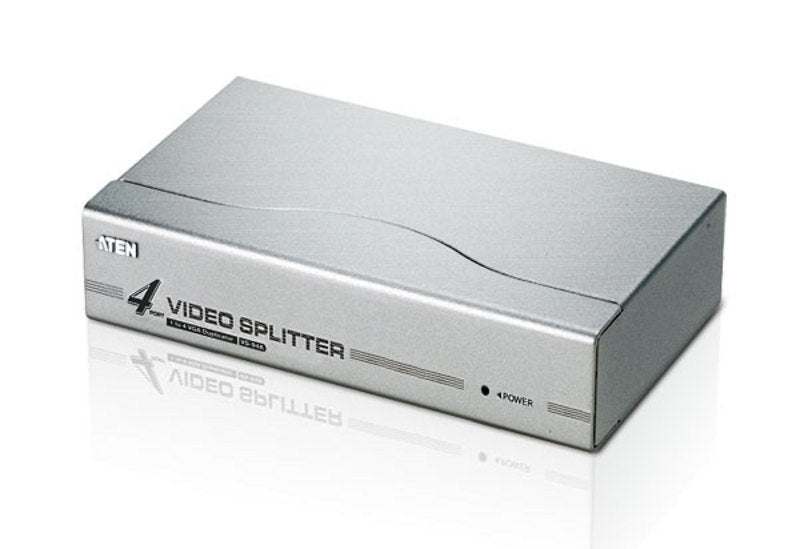

ATEN VS94A-AT-U | VS94A 4-Port VGA Splitter | 350MHz, 1920x1440@60Hz, 3-Level Cascade

ATEN VS94A-AT-U | VS94A 4-Port VGA Splitter | 350MHz, 1920x1440@60Hz, 3-Level Cascade

SKU:VS94A-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VS94A is a compact 4-port VGA video splitter that duplicates a single VGA source to four displays with crisp output. With 350 MHz bandwidth and support for up to 1920 x 1440 at 60 Hz, it delivers reliable signal distribution for classrooms, control rooms, signage, and test benches. Backed by the ATEN manufacturer warranty for peace of mind. Cascadable up to three levels to reach as many as 64 displays, the VS94A offers flexible expansion as your display needs grow. Setup is straightforward with standard VGA cabling and a durable metal enclosure that stands up to daily use. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- Mirror one VGA source to four displays instantly
- High 350 MHz bandwidth for crisp, high-resolution output
- Scale up to 64 displays via 3-level cascading
- Durable metal chassis for reliable, long-term use
- Quick, driver-free setup with standard VGA cabling

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does the VS94A do?
A: It splits a single VGA signal to four displays simultaneously, mirroring the same content on each screen.

Q: What is the maximum resolution supported?
A: Up to 1920 x 1440 at 60 Hz with a 350 MHz bandwidth for sharp, stable output.

Q: Can I expand beyond four outputs?
A: Yes. You can cascade units up to three levels, supporting up to 64 total outputs.

Q: Does the splitter require external power?
A: Yes. The VS94A is an active splitter and is powered by the included DC power adapter.

Q: Is the VS94A compatible with different VGA display types?
A: Yes. It works with VGA, SVGA, XGA, UXGA and other multi-sync analog VGA monitors and projectors.

Q: Where can I buy this in Australia?
A: You can purchase the VS94A from IP Trading. It’s stocked locally for fast Australian delivery.

Technical Specifications

- Video inputs: 1 x VGA (HD-15)
- Video outputs: 4 x VGA (HD-15)
- Video bandwidth: 350 MHz
- Maximum resolution: 1920 x 1440 @ 60 Hz
- Cascadable up to 3 levels (up to 64 displays)
- Supports VGA, SVGA, XGA, UXGA and multi-sync displays
- Metal enclosure; desktop form factor
- LED status indicators
- External DC power (adapter included)
- Plug-and-play, no drivers required
