ATEN

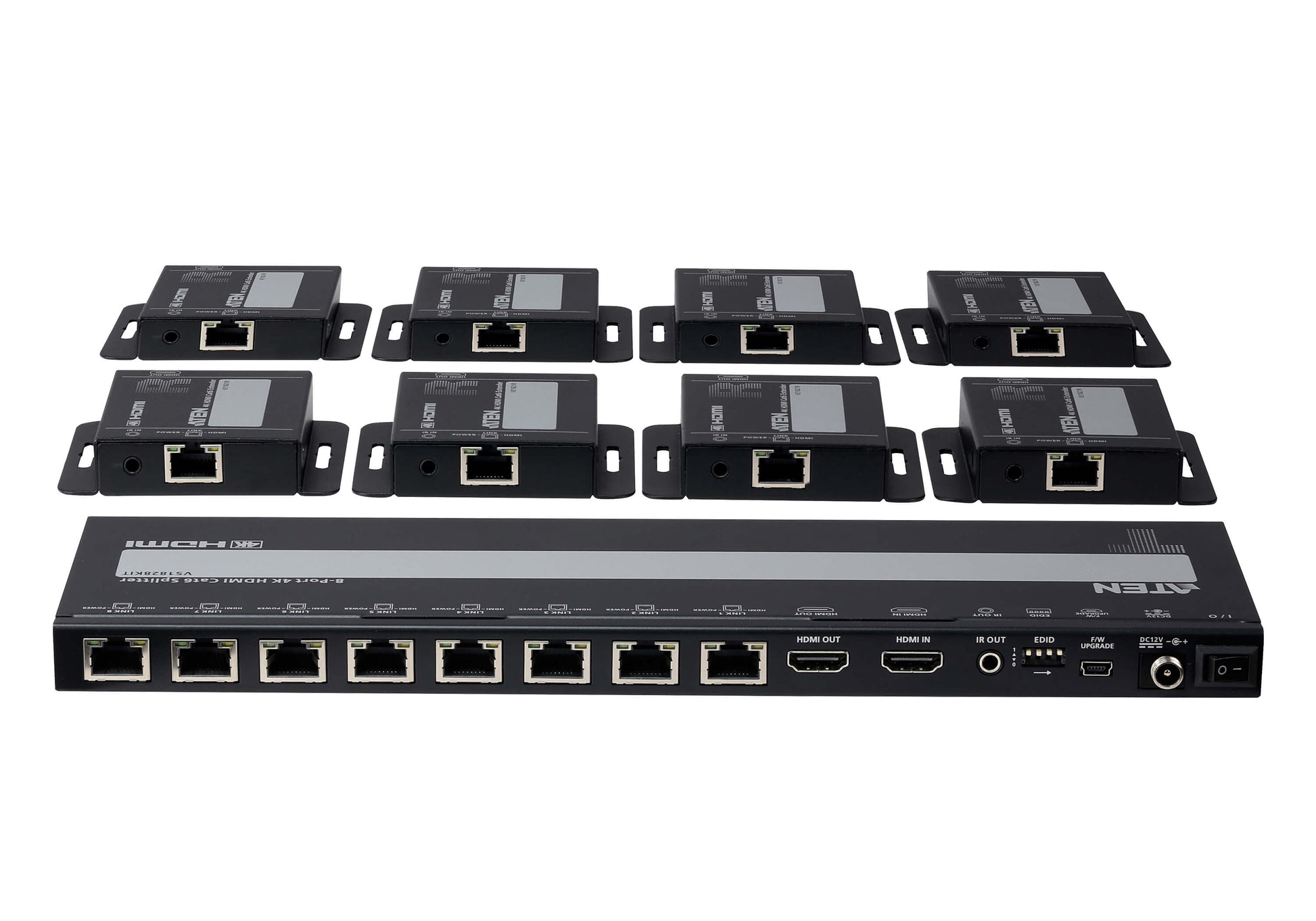

ATEN VS1828KIT-AT-U | VS1828KIT 8-Port 4K HDMI over Cat6 Splitter Kit with 8 Receivers

ATEN VS1828KIT-AT-U | VS1828KIT 8-Port 4K HDMI over Cat6 Splitter Kit with 8 Receivers

SKU:VS1828KIT-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VS1828KIT is an 8€‘port 4K HDMI over Cat6 splitter kit that distributes a single HDMI source to eight remote displays via included receivers. It supports UHD video, HDCP, and EDID management to ensure reliable compatibility across mixed displays. Ideal for digital signage, classrooms, retail, and control rooms, it enables long€‘distance signal extension over a single Cat6 per run with IR/RS€‘232 pass€‘through for control. Backed by ATEN€™s limited warranty. iptrading.com.au your local source for enterprise-grade networking solutions.

Features

- Distributes one HDMI source to eight displays over existing Cat6 cabling
- True 4K-capable for premium picture quality
- Simplified installation with a single cable per run
- EDID handling and HDCP compliance for hassle-free interoperability
- IR/RS-232 pass-through for flexible remote control
- Receiver units included for a complete end-to-end solution

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does the VS1828KIT include?
A: The kit includes one 8€‘port HDMI over Cat6 splitter/transmitter and eight matching HDBaseT HDMI receiver units, plus required power supplies.

Q: What video resolutions are supported?
A: It supports up to 4K UHD (3840 x 2160). Exact distance and performance at higher resolutions depend on cable quality and installation environment.

Q: How far can I extend the HDMI signal over Cat6?
A: Up to 100 m is typical for 1080p. For 4K, maximum distance is reduced (commonly up to around 70 m with quality Cat6/6a and proper installation).

Q: Does it support HDCP and EDID?
A: Yes. The splitter is HDCP compliant and features EDID management to ensure smooth handshakes with a variety of displays.

Q: Can I control the source device from the display location?
A: Yes. IR pass-through and RS€‘232 provide remote control capabilities from receiver/display locations back to the source.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN products in Australia and can provide quotes, invoicing, and local fulfillment for the VS1828KIT.

Technical Specifications

- 1 x HDMI input; 8 x HDBaseT outputs over Cat6/6a
- Includes 8 x HDBaseT HDMI receiver units
- Supports up to 4K UHD (3840 x 2160) video
- HDCP compliant for protected content
- EDID management for display compatibility
- IR pass-through and RS-232 control
- Single Cat6 cable per display run (RJ€‘45)
- Extension distances up to 100 m at 1080p; shorter at 4K depending on cable and environment
- Pass-through of common HDMI audio formats (e.g., LPCM, Dolby, DTS)
- External power supplies included
