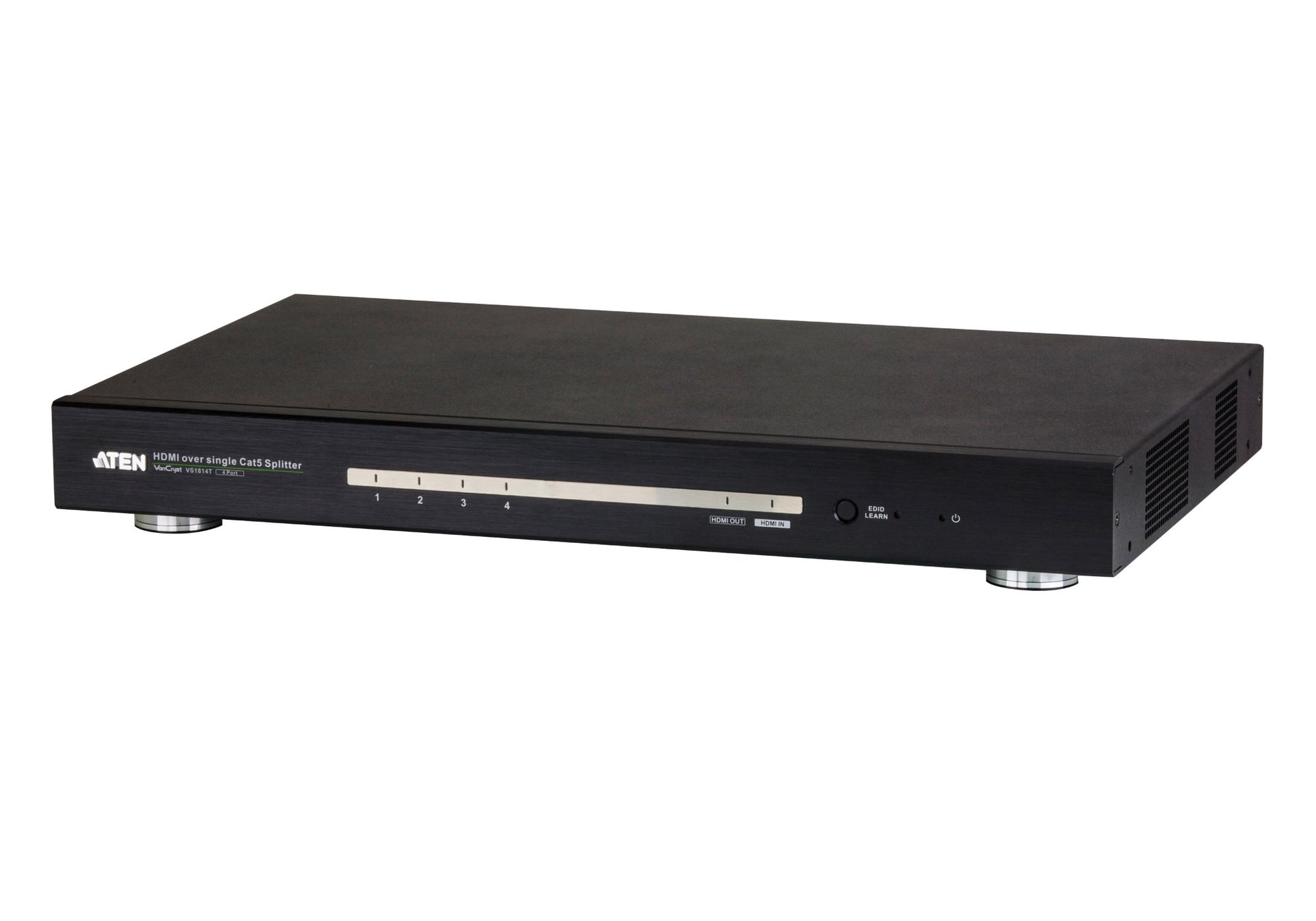

ATEN VS1814T-AT-U | VS1814T 4-Port HDMI HDBaseT Splitter 4K, 100m, 4 x HDBaseT Out + HDMI Local, RS-232, EDID

ATEN VS1814T-AT-U | VS1814T 4-Port HDMI HDBaseT Splitter 4K, 100m, 4 x HDBaseT Out + HDMI Local, RS-232, EDID

SKU:VS1814T-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VS1814T is a 4-port HDMI HDBaseT splitter that distributes one HDMI source to four remote displays over a single Cat 5e/6/6a per run, plus a local HDMI output for on-site monitoring. It delivers crisp 4K video up to 100 m with robust HDBaseT signal integrity and EDID management for reliable handshakes. Ideal for digital signage, education and meeting spaces, it integrates easily via RS-232 and works with compatible HDBaseT receivers (sold separately). Backed by the manufacturer€™s warranty. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- Distributes one HDMI source to 4 remote displays plus a local preview
- 4K video up to 100 m over a single Cat cable
- Reliable HDBaseT transmission for long-distance AV
- EDID management ensures optimal resolution and compatibility
- RS-232 control for easy system integration
- Scalable setup with compatible HDBaseT receivers

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does the VS1814T do?
A: It splits one HDMI source to four remote displays over HDBaseT using single Cat 5e/6/6a cables, and also provides a local HDMI output.

Q: What is the maximum resolution and distance supported?
A: It supports up to 4K video with transmission distances up to 100 metres over Cat 6/6a cabling.

Q: Does it support control integration?
A: Yes. It includes an RS-232 port for integration with third€‘party control systems.

Q: Do I need additional receivers at the remote displays?
A: Yes. Each HDBaseT output requires a compatible HDBaseT receiver at the display end (sold separately).

Q: Can I use a local display at the source location?
A: Yes. The unit includes a local HDMI output for preview or on-site monitoring alongside the four remote outputs.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. You can order directly from IP Trading online or request a formal quote; Australian stock, GST invoicing and local support are available.

Technical Specifications

- 1 x HDMI input
- 4 x HDBaseT outputs over single Cat 5e/6/6a
- 1 x HDMI local output
- Video resolution up to 4K
- Transmission distance up to 100 m over Cat 6/6a
- RS-232 control interface
- EDID management
- HDBaseT technology for video and control over a single cable
