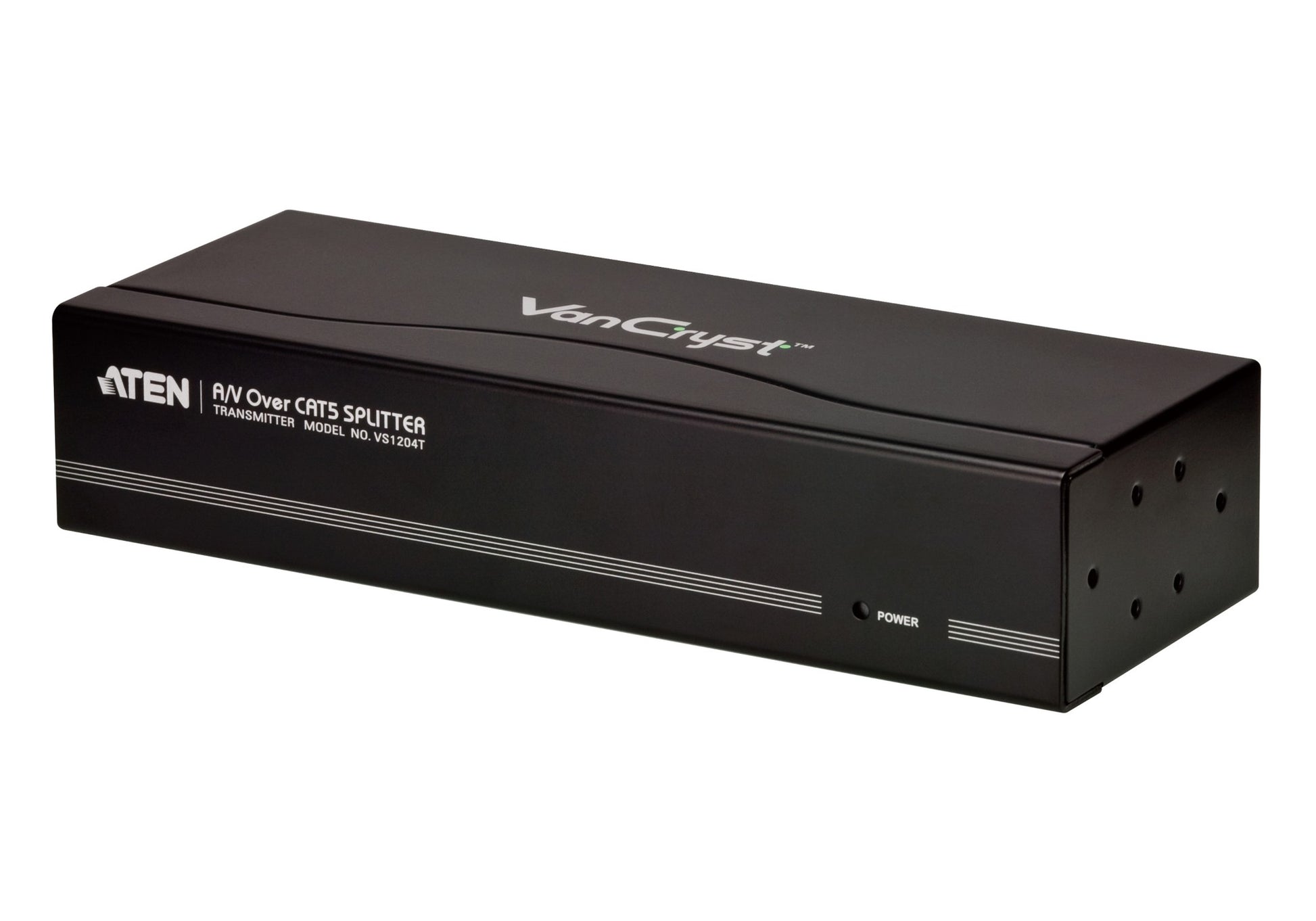

• Black rectangular aten vs1204t cat5 vga audio splitter with silver text and trim for 300m extension in 1u rack

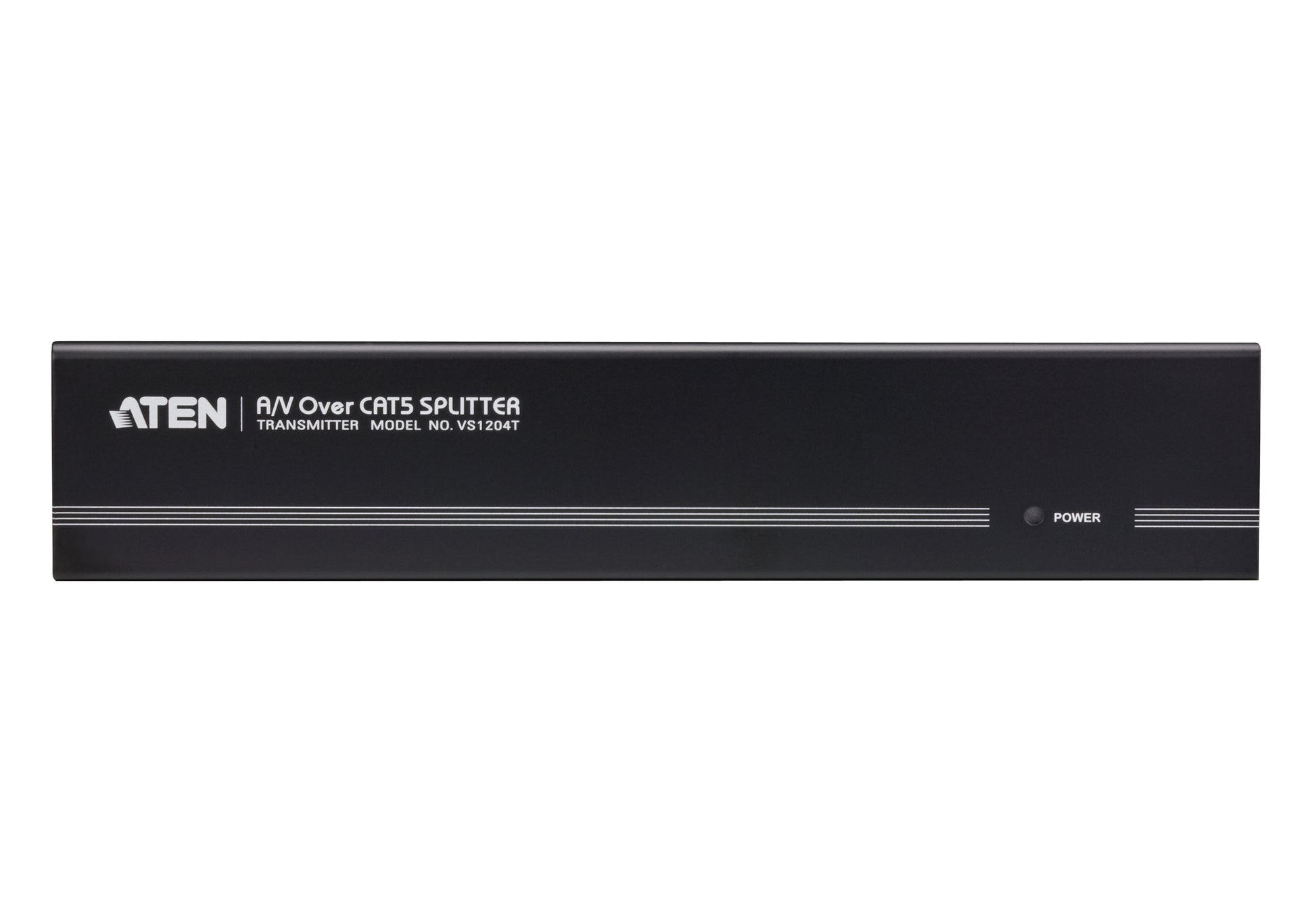

  • Black aten vs1204t av over cat5 splitter transmitter with silver trim and white labeling for 4-port vga audio extension

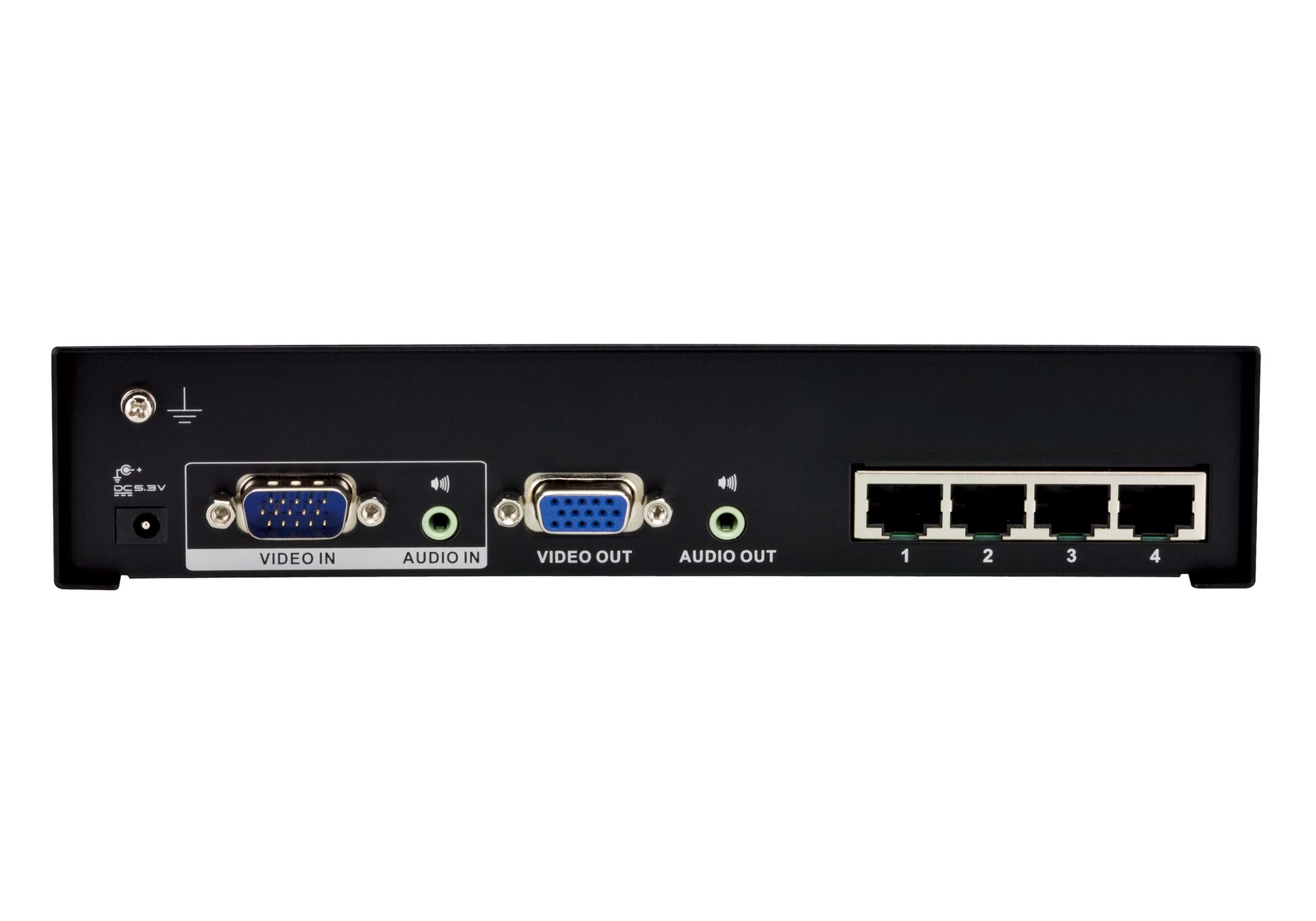

  • Back side of black aten vs1204t-at-u 4-port vga audio cat 5 splitter with blue vga and four ethernet lan ports
  • Black aten vs1204t 4-port vga audio cat 5 splitter transmitter with vga and ethernet ports shown from back side
1 4

ATEN

ATEN VS1204T-AT-U | 4-Port VGA/Audio Cat 5 Splitter, 300m Extension, 1U Rack

ATEN VS1204T-AT-U | 4-Port VGA/Audio Cat 5 Splitter, 300m Extension, 1U Rack

VS1204T-AT-U

Stock Status: Enquire

$604.06 AUD
$604.06 AUD
$604.06 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN VS1204T is a 4-port VGA/audio Cat 5 splitter and A/V extender designed for professional installations that need to deliver multimedia content from a single source to up to four remote displays simultaneously. Using standard Cat 5e cable, it extends VGA and mono audio signals up to 300 m (1000 ft) from the source while maintaining resolutions up to 1920 x 1200 @ 60 Hz — making it ideal for digital signage, lecture halls, control rooms, and corporate AV environments.

The VS1204T supports a local display alongside four remote outputs, with a 225 MHz bandwidth ceiling and built-in 8KV/15KV ESD protection for reliable operation in demanding environments. It is compatible with ATEN VE170R, VE170RQ, and VE172R receiver units, integrates seamlessly into existing Cat 5e infrastructure, and installs in a standard 1U rack with no drivers required. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- Distributes one VGA/audio source to up to 4 remote displays over Cat 5e cable
- Simultaneously supports a local display plus 4 remote outputs
- Extends signals up to 300 m (1000 ft) — ideal for large venues and multi-floor installations
- Supports resolutions up to 1920 x 1200 @ 60 Hz with 225 MHz bandwidth
- Mono audio distribution included over the same Cat 5e run
- Built-in 8KV/15KV ESD protection for reliable operation in demanding environments
- Compatible with ATEN VE170R, VE170RQ, and VE172R remote receiver units
- 1U rack-mountable form factor for clean data centre or AV rack integration
- Plug-and-play installation — no drivers or software required
- Leverages existing Cat 5e infrastructure to minimise cabling costs

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Input: 1 x VGA (HD-15) + 3.5 mm audio
- Outputs: 4 x RJ-45 (Cat 5e) for remote displays
- Supports 1 local display + 4 remote displays simultaneously
- Maximum extension distance: 300 m (1000 ft) via Cat 5e
- Maximum resolution: 1920 x 1200 @ 60 Hz
- Maximum bandwidth: 225 MHz
- Audio support: Mono
- Built-in ESD protection: 8KV air / 15KV contact
- Input voltage: 5.3V DC
- Form factor: 1U rack-mountable

FAQs

Q: How far can the VS1204T extend VGA and audio signals?
A: The VS1204T can extend VGA and mono audio signals up to 300 m (1000 ft) from the source unit using standard Cat 5e cable, making it suitable for large venues, multi-floor deployments, and long-distance A/V distribution.

Q: How many displays can be connected to the VS1204T?
A: The VS1204T supports one local display connected directly to the unit plus four remote displays via Cat 5e cable, giving you up to five simultaneous output screens from a single VGA source.

Q: What receiver units are compatible with the VS1204T?
A: The VS1204T is compatible with ATEN VE170R, VE170RQ, and VE172R receiver units. These are placed at each remote display location and connect via Cat 5e cable back to the splitter.

Q: Does the VS1204T require any drivers or software to operate?
A: No. The VS1204T is a plug-and-play device that requires no driver installation or software configuration. Simply connect your source, Cat 5e runs, and remote receivers to get started.

Q: What is the maximum resolution supported by the VS1204T?
A: The VS1204T supports resolutions up to 1920 x 1200 at 60 Hz, with a maximum bandwidth of 225 MHz, ensuring high-quality video delivery across all connected displays.

Q: Can I purchase the ATEN VS1204T in Australia through IP Trading?
A: Yes. IP Trading stocks the ATEN VS1204T and ships across Australia. Visit iptrading.com.au to order or contact our team for volume pricing and deployment support.
