ATEN VM8824-AT | VM8824 HDMI Output Board | 4 x HDMI, True 4K 60 (4:4:4), Scaler

ATEN VM8824-AT | VM8824 HDMI Output Board | 4 x HDMI, True 4K 60 (4:4:4), Scaler

SKU:VM8824-AT

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

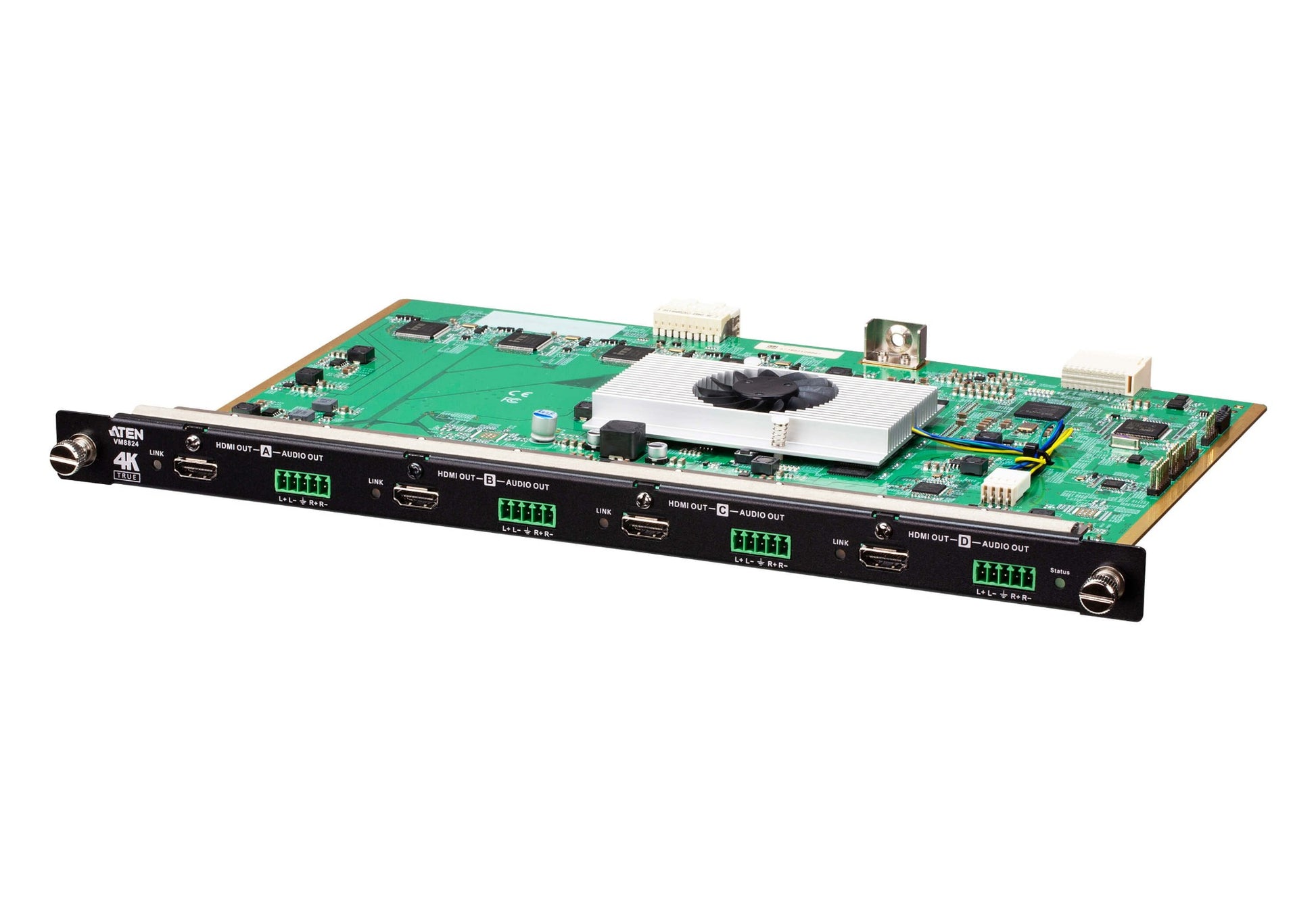

The ATEN VM8824 is a 4-port True 4K HDMI output board with an integrated scaler for the VM3250 modular matrix switch. It delivers up to 4096 x 2160 at 60 Hz (4:4:4) across four HDMI outputs, with HDCP 2.2 compliance and dependable EDID handling. Designed for professional Pro AV matrices, the hot-swappable card adds flexible per-output up/downscaling to drive mixed-display environments while preserving image fidelity. Backed by the manufacturer warranty. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- Adds four True 4K HDMI outputs to VM3250 in a single card
- Per-output scaling optimises mixed-display deployments
- HDCP 2.2 compliance ensures playback of protected content
- Hot-swappable design minimises downtime during maintenance
- High-bandwidth HDMI 2.0 outputs preserve image quality

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Which chassis is the VM8824 compatible with?
A: It is designed for the ATEN VM3250 modular matrix switch.

Q: Does this board support True 4K 60 Hz with 4:4:4 chroma?
A: Yes. It supports up to 4096 x 2160 at 60 Hz (4:4:4).

Q: Is there a built-in scaler on each output?
A: Yes. Each HDMI output includes an integrated scaler for per-display up/downscaling.

Q: Is the VM8824 HDCP compliant?
A: Yes. It is HDCP 2.2 compliant to support protected 4K content.

Q: Can I hot-swap this card in the VM3250?
A: Yes. The board is hot-swappable when following ATEN€™s recommended procedures.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading supplies genuine ATEN products with local tax invoice and fast nationwide shipping.

Technical Specifications

- 4 x HDMI Type-A outputs
- True 4K up to 4096 x 2160 @ 60 Hz (4:4:4)
- HDMI 2.0; HDCP 2.2 compliant
- Integrated per-port scaler for up/downscaling
- Up to 18 Gbps bandwidth per port
- Hot-swappable module for the VM3250 modular matrix switch
- EDID management for display compatibility
