ATEN VM6404HB-AT-U | VM6404HB 4x4 True 4K HDMI Matrix Switch with Scaler, HDR, HDCP 2.2

ATEN VM6404HB-AT-U | VM6404HB 4x4 True 4K HDMI Matrix Switch with Scaler, HDR, HDCP 2.2

VM6404HB-AT-U

Stock Status: Enquire

$6,413.55 AUD
$6,413.55 AUD
$6,413.55 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

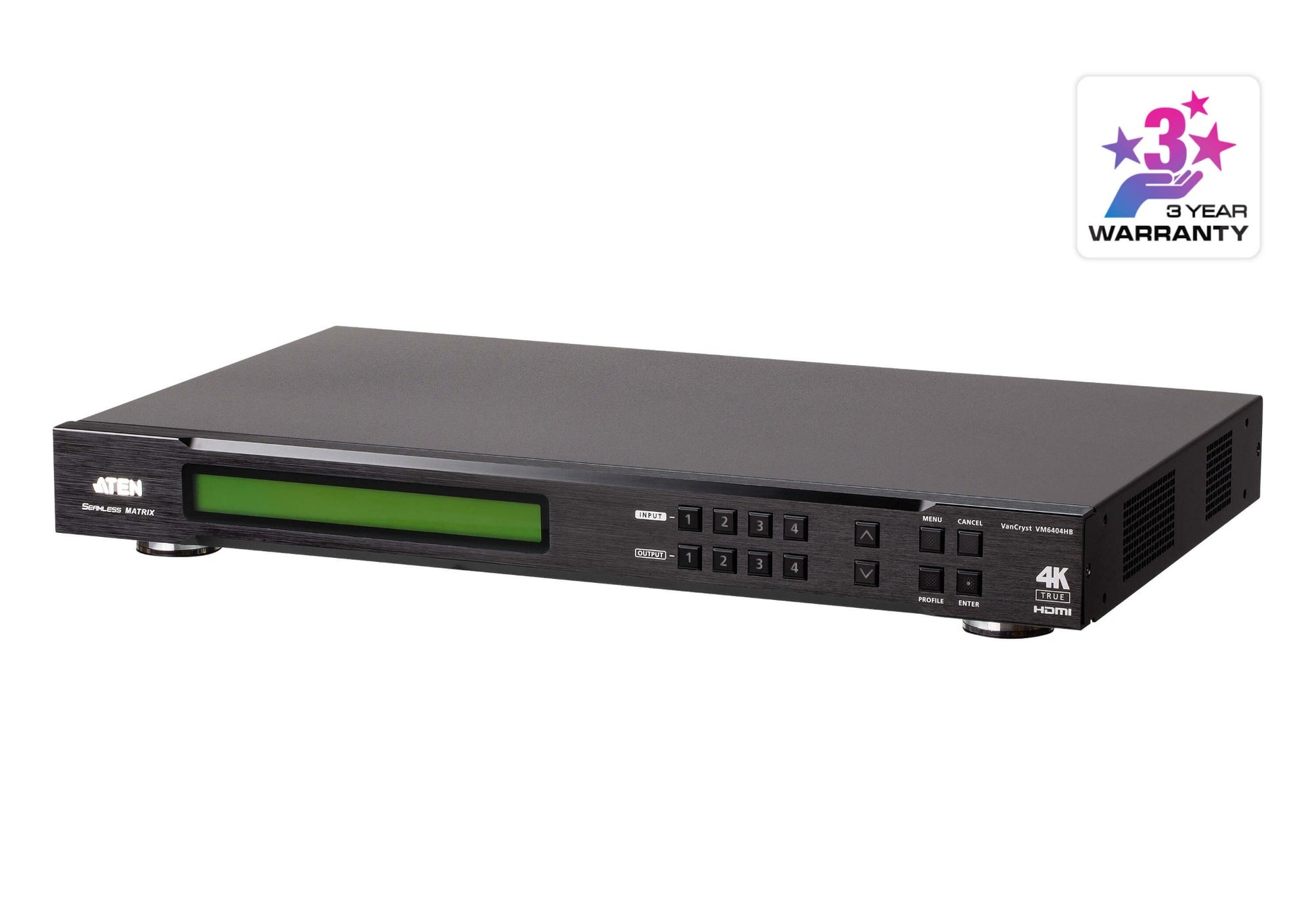

The VM6404HB is a 4x4 True 4K HDMI matrix switch that routes any of four HDMI sources to any of four HDMI displays.. It delivers up to 4096 x 2160/60Hz 4:4:4, supports HDR, and is HDCP 2.2 compliant.. Per-port scalers and seamless switching enable smooth, artefact-free transitions between mixed resolutions, while a front-panel LCD shows live routing status. Manage and automate via Ethernet, RS-232, IR and an intuitive web GUI, with EDID Expert for rock-solid compatibility.. Ideal for boardrooms, control rooms and signage, with simple 2x2 video wall mode.. Backed by the manufacturer's warranty.. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- Route any of 4 HDMI sources to any of 4 HDMI displays
- True 4K 60 Hz 4:4:4 with HDR for pristine image quality
- Per-port scaling ensures compatibility across mixed displays
- Seamless switching for professional, flicker-free transitions
- Simple 2x2 video wall mode for tiled display applications
- Flexible control via Ethernet, RS-232, IR and front panel
- EDID management prevents handshaking and resolution issues
- Front-panel LCD provides instant routing and status visibility

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x HDMI inputs, 4 x HDMI outputs
- HDMI 2.0; up to 4096 x 2160 or 3840 x 2160 @ 60 Hz (4:4:4), 18 Gbps
- HDCP 2.2 compliant
- HDR (e.g., HDR10) support
- Per-port 4K scaler for mixed display resolutions
- Seamless switching (when enabled) for smooth source changes
- 2x2 video wall mode
- EDID Expert: default, copy, and programmable EDID options
- Control interfaces: front-panel buttons with LCD, Ethernet (web GUI), RS-232, IR
- Supports multi-channel digital audio formats including LPCM, Dolby TrueHD, DTS-HD Master Audio
- ESD protection on I/O ports
- Rack-mountable (1U); universal 100-240 V AC power input

FAQs

Q: Does the VM6404HB really output True 4K 60 Hz 4:4:4?
A: Yes. It supports HDMI 2.0 bandwidth up to 18 Gbps and delivers 3840/4096 x 2160 at 60 Hz with 4:4:4 chroma.

Q: Can it mix different source and display resolutions?
A: Yes. Each output includes a built-in scaler so you can connect 1080p and 4K displays simultaneously without compatibility issues.

Q: Is seamless switching supported?
A: Yes. When seamless mode is enabled, the switcher provides smooth, near-instant transitions between sources.

Q: Does it support HDR and HDCP 2.2 protected content?
A: Yes. It supports HDR (e.g., HDR10) and is fully HDCP 2.2 compliant for protected 4K content.

Q: What control options are available for integration?
A: You can control it via front-panel buttons and LCD, Ethernet (web UI), RS-232, and IRmaking integration with third-party control systems straightforward.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading sells the VM6404HB in Australia with GST invoicing, local support and fast nationwide delivery.
