ATEN

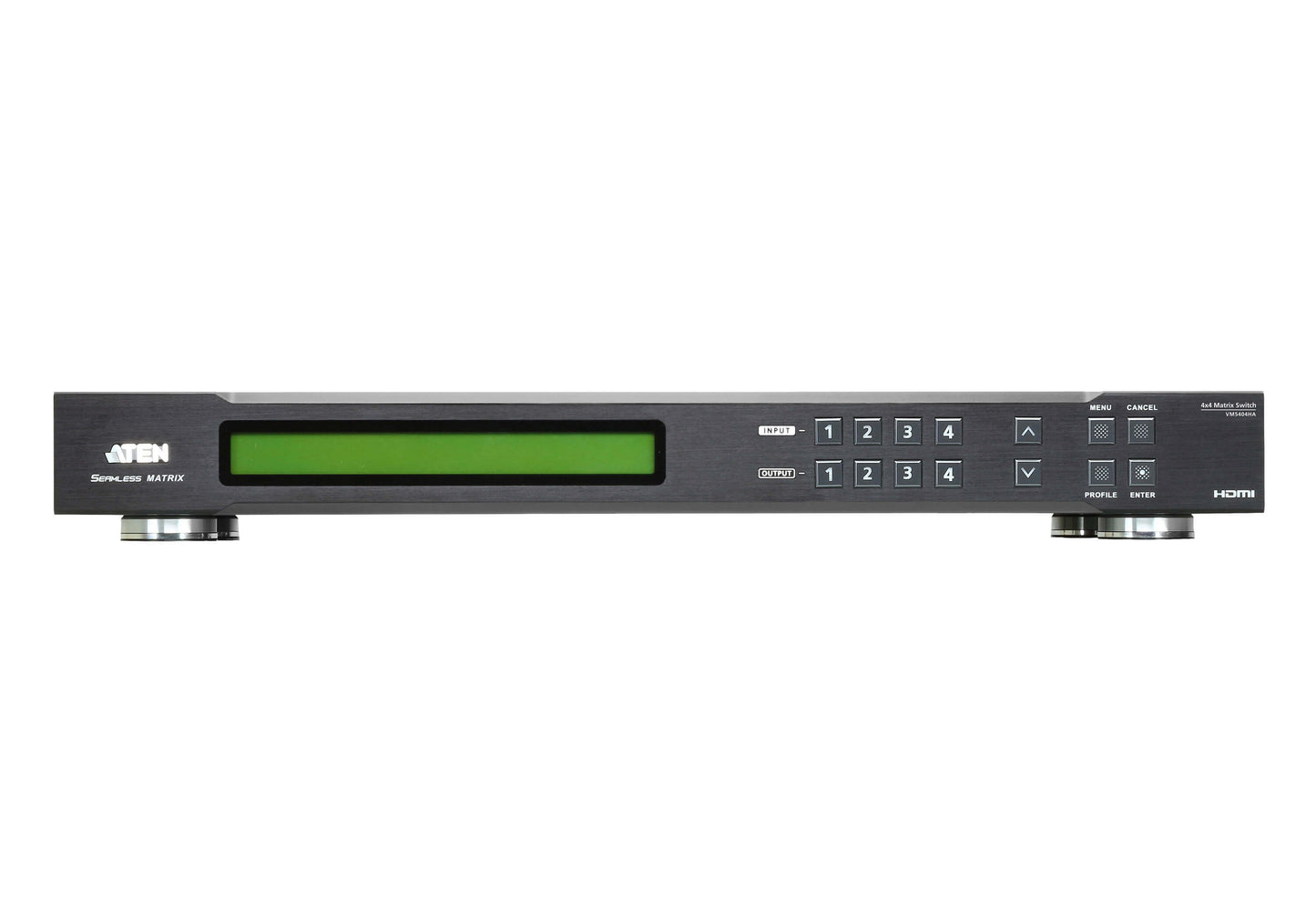

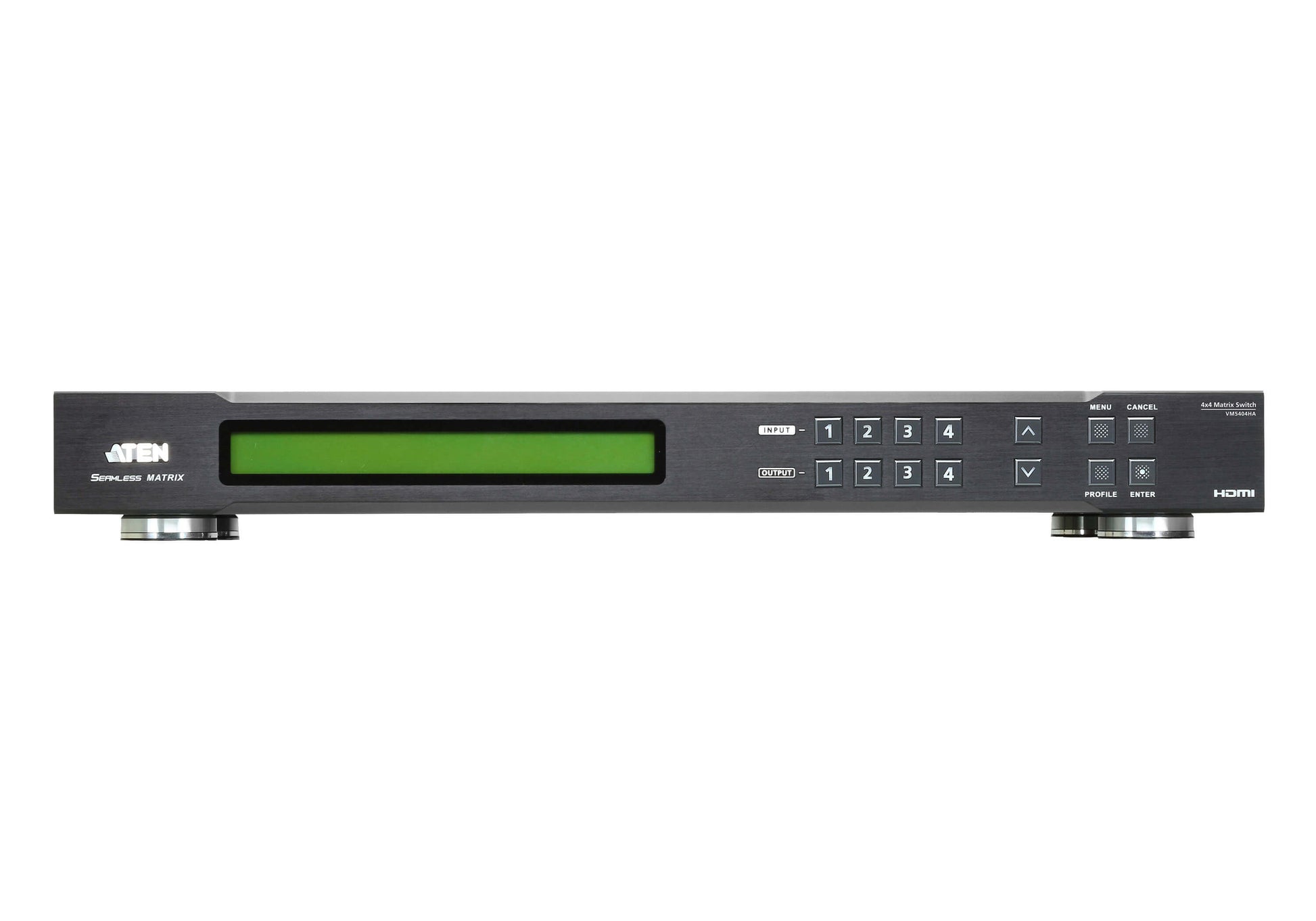

ATEN VM5404HA-AT-U | VM5404HA HDMI Matrix Switch, 4 x 4, True 4K60, Seamless + Scaler

ATEN VM5404HA-AT-U | VM5404HA HDMI Matrix Switch, 4 x 4, True 4K60, Seamless + Scaler

SKU:VM5404HA-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

ATEN€™s VM5404HA is a professional 4 x 4 HDMI matrix switch that routes any of four HDMI sources to any of four HDMI displays.. It delivers True 4K 60 Hz (4:4:4) performance with HDCP 2.2 compliance, plus a built€‘in scaler, Seamless Switch and FrameSync for fast, stable switching between sources. Ideal for boardrooms, lecture theatres and control rooms, it offers flexible control via front panel, IR, RS€‘232 and an intuitive web GUI over Ethernet, with EDID management for reliable signal negotiation.. Backed by ATEN€™s manufacturer warranty for peace of mind.. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- Flicker€‘free source changes via Seamless Switch and FrameSync
- True 4K 60 Hz (4:4:4) for crystal€‘clear detail
- Built€‘in scaling for mixed€‘resolution sources and displays
- EDID management ensures reliable device handshakes
- Flexible control: front panel, IR, RS€‘232, Telnet and web GUI
- Durable 1U rack€‘mount design for professional AV installs

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does the VM5404HA do?
A: It is a 4 x 4 HDMI matrix switch that lets you route any of four HDMI sources to any of four HDMI displays independently, with built€‘in scaling and seamless switching.

Q: Does it support 4K and HDCP?
A: Yes. It delivers up to True 4K 60 Hz (4:4:4) video and is HDCP 2.2 compliant for use with protected UHD content.

Q: What makes the switching €˜seamless€™?
A: The unit integrates a scaler and FrameSync to minimise blanking and screen flicker when changing sources, providing smooth, stable transitions.

Q: How can I control the matrix?
A: Use the front€‘panel buttons, the included IR, or connect via RS€‘232 or Ethernet for Telnet and an intuitive browser€‘based web GUI. It can be integrated with third€‘party control systems.

Q: Can it handle mixed resolutions across sources and displays?
A: Yes. The built€‘in scaler aligns differing source and display resolutions to maintain compatibility and consistent output.

Q: Can I buy this in Australia from IP Trading?
A: Yes. Order the SKU VM5404HA-AT-U from IP Trading for Australian supply, support and fast delivery.

Technical Specifications

- Matrix: 4 x HDMI inputs, 4 x HDMI outputs
- Video performance: up to True 4K 60 Hz (4:4:4); HDCP 2.2 compliant
- Seamless switching with integrated scaler and FrameSync
- EDID management for per€‘port compatibility
- Control interfaces: front panel buttons, IR, RS€‘232, Telnet, web GUI via Ethernet (RJ€‘45)
- Embedded HDMI multi€‘channel audio pass€‘through
- 1U rack€‘mountable metal chassis
- Universal AC power input: 100-240 V, 50/60 Hz
