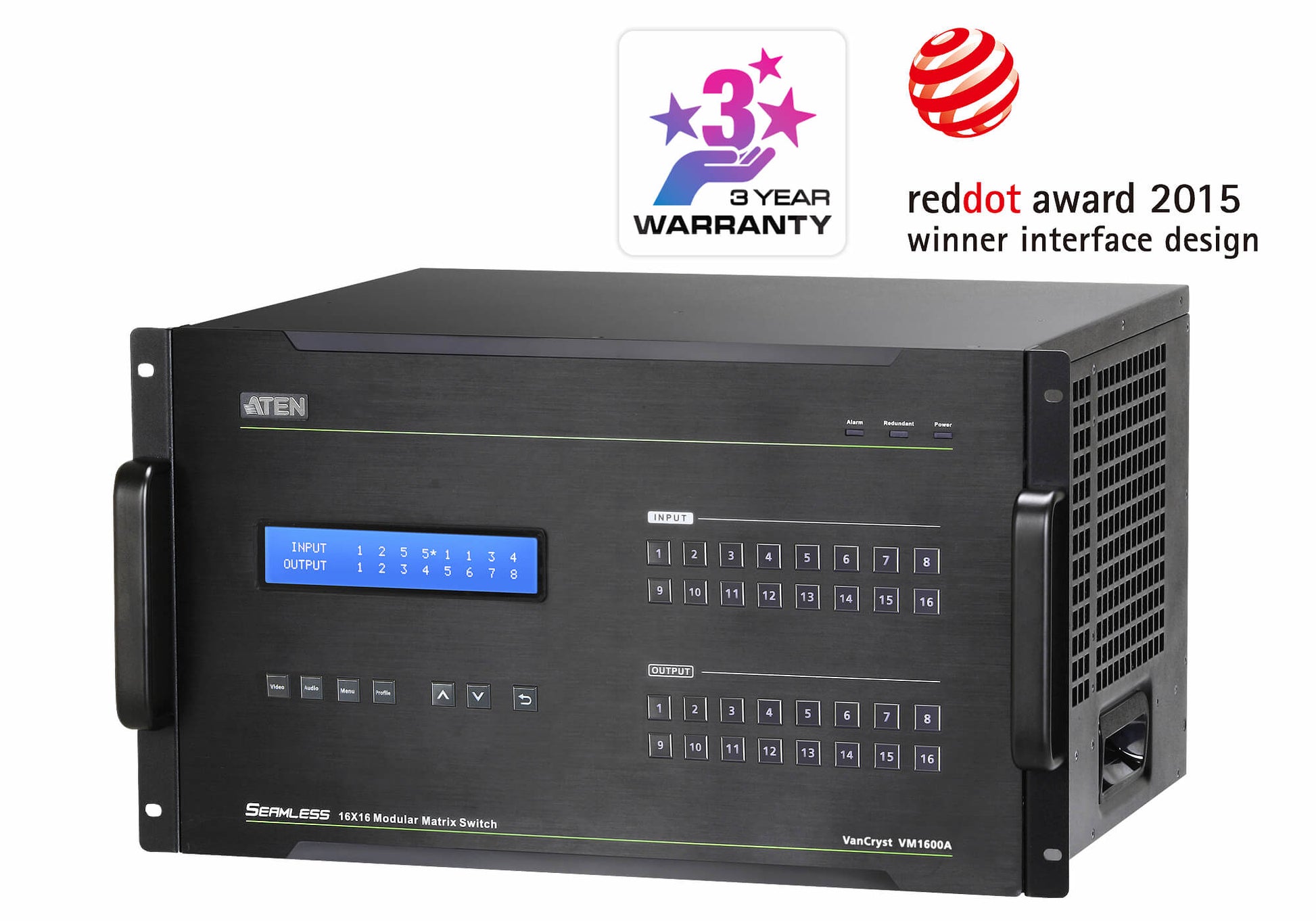

ATEN VM1600A-AT-U | VM1600A 16 x 16 Modular Matrix Switch, Seamless Switching, Scaler-Ready

ATEN VM1600A-AT-U | VM1600A 16 x 16 Modular Matrix Switch, Seamless Switching, Scaler-Ready

SKU:VM1600A-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VM1600A is a modular 16 x 16 digital matrix switch designed for professional AV routing.. It accepts hot-swappable 4-port input and output boards, letting you mix interfaces to build exactly the signal matrix you need, with ATEN Seamless Switch technology for fast, smooth transitions. Backed by a 3-year manufacturer warranty.. With control via front-panel pushbuttons, Ethernet (web GUI/Telnet) and RS-232, plus output scaling when used with compatible scaler boards, it€™s built for reliable 24/7 operation in control rooms, education, and corporate AV.. Upgrade your network with gear from iptrading.com.au Australia€™s IT hardware specialists.

Features

- Flexible modular design to build the exact 16 x 16 signal matrix you need
- Seamless switching to reduce screen blanking and glitches
- Scaler-ready outputs to match any display when used with compatible cards
- Multiple control paths for easy integration and daily operation
- Hot-swappable I/O modules minimise downtime during maintenance or upgrades

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What makes the VM1600A different from fixed matrix switches?
A: It€™s a modular 16 x 16 chassis that takes hot-swappable 4-port I/O boards, so you can mix HDMI, DVI, VGA, HDBaseT, or SDI (board-dependent) and expand or reconfigure as requirements change.

Q: Does the VM1600A support 4K and scaling?
A: Yesmaximum resolution depends on the installed I/O boards, with 4K supported by select cards. Output scaling is available when using compatible scaler boards, allowing sources to match various displays.

Q: Is video switching seamless?
A: Yes. ATEN Seamless Switch technology with frame synchronisation delivers fast, smooth transitions with minimal or no black screen between sources.

Q: How can I control the matrix in an installation?
A: You can use the front-panel pushbuttons, the built-in web GUI over Ethernet, Telnet, or RS-232. It also integrates with AV control systems through standard protocols.

Q: Can I replace or add boards while the system is running?
A: Yes. The I/O boards are hot-swappable, enabling maintenance or expansion with minimal downtime.

Q: Where can I buy the VM1600A in Australia?
A: Purchase from IP Trading (iptrading.com.au) for Australian stock, GST invoicing, and local support. The unit is covered by the standard manufacturer warranty.

Technical Specifications

- 16 x 16 modular digital matrix switch chassis
- Accepts hot-swappable 4-port input and 4-port output boards
- Seamless Switch technology with frame synchronisation for fast, smooth switching
- Output scaling available when used with compatible scaler I/O boards
- Mixed-signal support via optional HDMI/DVI/VGA/HDBaseT/SDI I/O boards (model-dependent)
- Control options: front-panel pushbuttons, Ethernet (web GUI/Telnet), and RS-232
- EDID management and profile presets for reliable source/display handshakes
- 19-inch rackmount chassis
