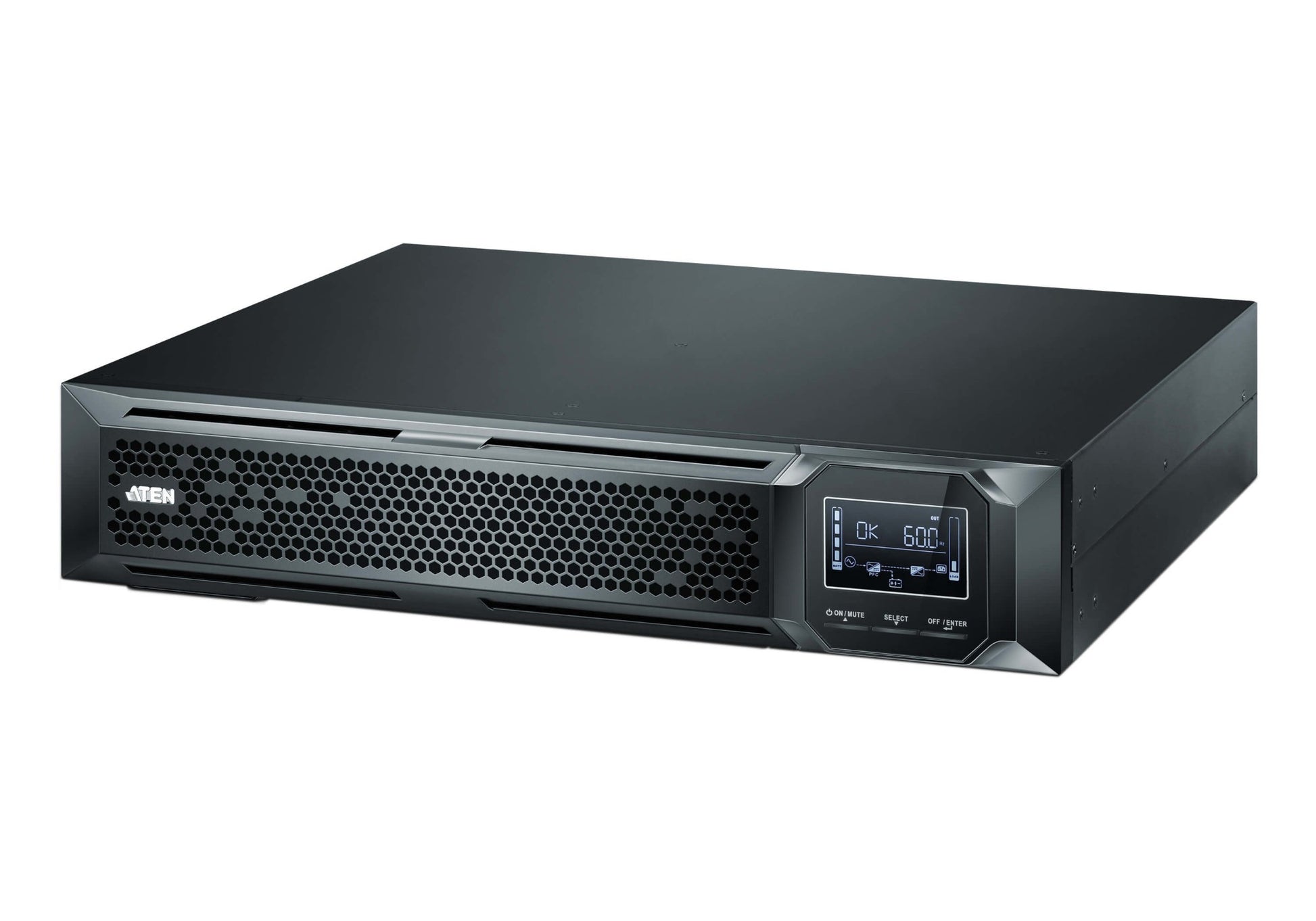

ATEN OL3000HV-AT-G | OL3000HV Online Rack/Tower UPS, 3000VA/3000W, USB/DB9

Name: ATEN OL3000HV-AT-G | OL3000HV Online Rack/Tower UPS, 3000VA/3000W, USB/DB9
Brand: ATEN
SKU: OL3000HV-AT-G
Price: 2650.18 AUD
Availability: InStock

Authorised ATEN Partner

SKU:OL3000HV-AT-G

In stock:2

$2,650.18 inc. GST

$2,409.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The OL3000HV is a 3000VA/3000W double-conversion online UPS in a 2U rack/tower format, built to protect servers and network equipment in a 230V environment. It provides nine protected outlets (8x IEC C13 and 1x IEC C19) and delivers a pure sine wave on battery with 0 ms transfer time, so connected equipment is protected from outages, sags and surges.

USB (HID) and DB9 serial ports support local monitoring and orderly shutdown, and an optional SNMP/HTTP card adds remote management. Six 12V/9Ah sealed lead-acid batteries are hot-swappable, a multi-function LCD shows power and battery status, and an extended battery module (BP72V18AH) is available for longer runtime.

Features

- Double-conversion online topology gives full-time protection for connected equipment
- Hot-swappable batteries allow replacement without powering down connected equipment
- ECO mode for energy saving, with efficiency of up to 97%
- Over-voltage cut-off protection and MOV surge immunity
- High power factor charger of up to 1000W capacity with very low ripple current
- Multi-function LCD shows input voltage, battery capacity, power, operating status and estimated runtime
- Smart battery charger adjusts charging voltage to ambient temperature to extend battery life
- Optional SNMP card for remote monitoring, with EPO and RJ port surge protection

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 3000VA / 3000W, double-conversion online topology
- Input: 220/230/240 VAC, IEC C20 inlet, 40-70 Hz
- Input voltage range: 160-300 VAC at 100% load
- Outlets: 9 total, 8x IEC C13 and 1x IEC C19, all battery and surge protected
- Output on battery: pure sine wave, 50/60 Hz, 0 ms transfer time
- Communication: USB (HID) and DB9 serial, optional SNMP/HTTP card
- Batteries: 6x 12V/9Ah sealed lead-acid, 72V pack, hot-swappable
- Runtime: 9.79 minutes at half load, 3.41 minutes at full load
- Efficiency: over 96% in ECO mode
- Form factor: 2U rack/tower, 8.80 x 43.80 x 63.00 cm, 28.7 kg
- Operating temperature 0-40°C, audible noise under 50 dB at 1 m
- Compatible battery options: BP72V18AH extended module, BC72V9AH replacement pack

FAQs

Q: Can the OL3000HV be mounted in a rack?
A: Yes. It is a 2U rack/tower UPS, so it can be installed in a standard rack or used free-standing as a tower.

Q: What outlets does it provide?
A: Nine outlets in total: eight IEC C13 and one IEC C19. All are battery backed and surge protected.

Q: Does it support remote monitoring?
A: USB (HID) and DB9 serial ports are built in. An optional SNMP/HTTP card adds network-based remote monitoring and management.

Q: Are the batteries hot-swappable?
A: Yes. The six 12V/9Ah sealed lead-acid batteries can be replaced without shutting down connected equipment. The replacement pack is BC72V9AH.

Q: Can I extend the runtime?
A: Yes. The BP72V18AH extended battery module is available for this UPS. Standard runtime is 9.79 minutes at half load and 3.41 minutes at full load.

Q: What input voltage does it use?
A: It accepts 220/230/240 VAC through an IEC C20 inlet, with a wide input range of 160-300 VAC at full load.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
