ATEN OL1500HV-AT-G | Professional Online UPS 1500VA/1500W, 230V, USB/DB9, 2U Rack/Tower

Name: ATEN OL1500HV-AT-G | Professional Online UPS 1500VA/1500W, 230V, USB/DB9, 2U Rack/Tower
Brand: ATEN
SKU: OL1500HV-AT-G
Price: 1240.97 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:OL1500HV-AT-G

Stock Status: Enquire

$1,240.97 inc. GST

$1,128.15 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

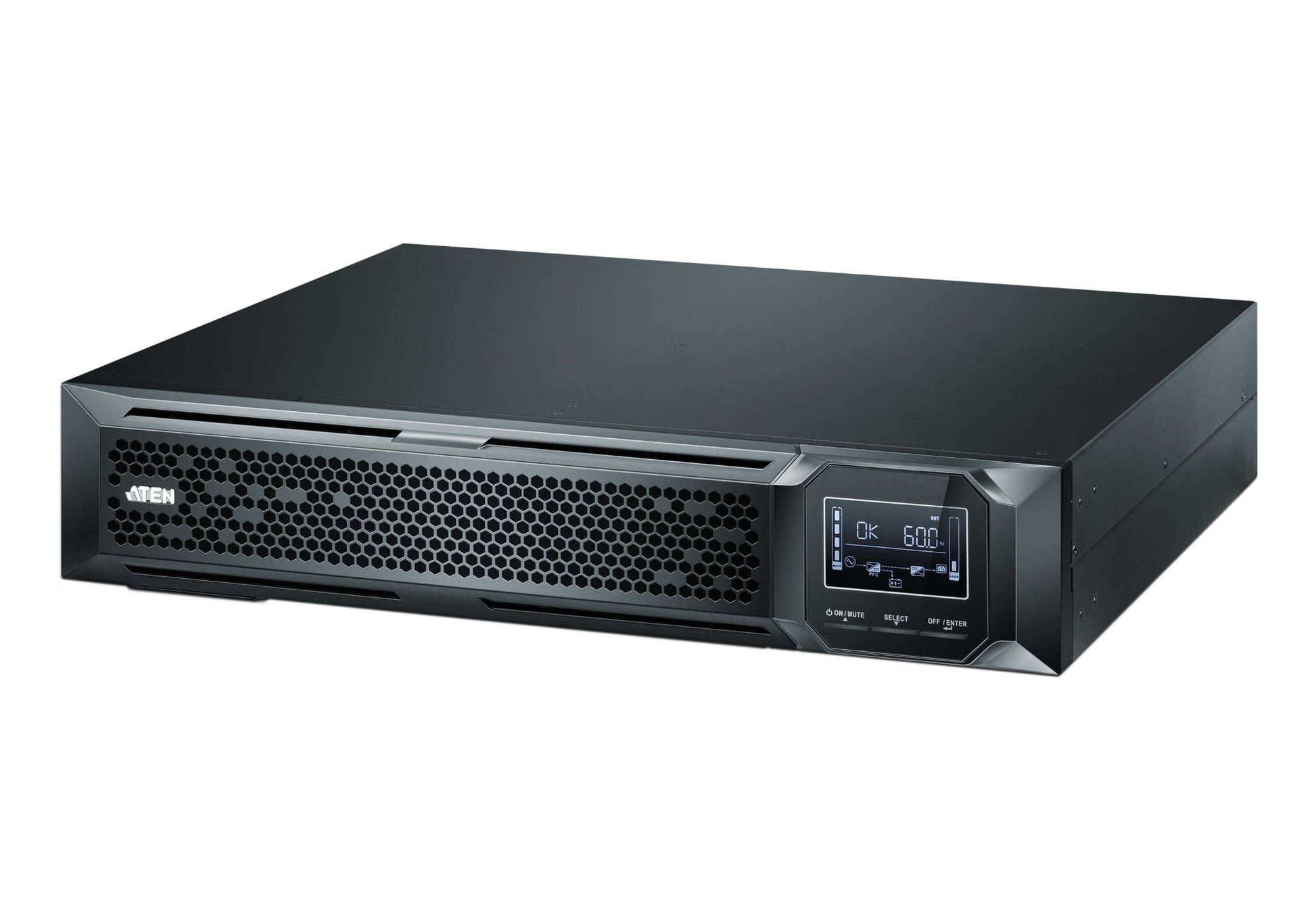

The ATEN OL1500HV is a 1500VA/1500W true double-conversion online UPS for 2U rack or tower installation, built for 220/230/240 VAC environments. It delivers a pure sine wave output with a rated power factor of 1, zero transfer time to battery, and USB (HID) and RS-232 (DB9) communication for orderly shutdown and monitoring.

Eight IEC C13 outlets are all battery and surge protected, and the three hot-swappable 12V/9AH sealed lead-acid batteries can be replaced without powering down connected equipment. A multi-function LCD, programmable power management outlets, an EPO connector and an optional SNMP card make it suited to server rooms, network cabinets and critical office equipment.

Features

- True double-conversion with output power factor of 1, so all supplied power is usable for the load
- Output voltage regulation better than 1%
- Hot-swappable batteries allow replacement without powering down connected equipment
- Programmable power management outlets extend battery time for critical devices
- SNMP, USB and RS-232 communications work simultaneously
- ECO mode for energy saving, with up to 97% efficiency
- Multi-function LCD shows input voltage, battery capacity, power, status and estimated runtime
- Emergency Power Off (EPO) connector on the rear panel
- Over-voltage cut-off protection and MOV surge immunity
- Smart battery charger adjusts charging voltage to temperature to extend battery life
- Supplied with rack mounting kit, rail slide kit, RS-232 cable, USB A-B cable, 4 power cables and tower stand set

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 1500VA / 1500W, rated power factor 1
- True double-conversion online topology
- Input: 220/230/240 VAC, 40-70 Hz, rated input current 7.2A
- Input voltage range: 160-300 VAC at 100% load, 110-300 VAC at 50% load
- Output: pure sine wave on battery, 50/60Hz +/- 0.1 Hz
- 8 x IEC 320 C13 outlets, all battery and surge protected
- Input plug: IEC 320 C14
- Transfer time: 0ms (AC to battery), 4ms (inverter to bypass, ECO)
- Batteries: 3 x 12V/9AH sealed lead-acid, 36V pack, hot-swappable
- Runtime: 9.44 minutes at half load, 3.30 minutes at full load
- Communications: HID-compliant USB port, RS-232 serial port, optional SNMP card
- Form factor: 2U rack/tower
- Dimensions (L x W x H): 8.80 x 43.80 x 41.00 cm
- Weight: 14.30 kg
- Operating temperature: 0-40°C
- Audible noise: less than 50dB at 1m
- Certifications: CE, RoHS
- Extended battery module: BP36V18AH; replacement battery pack: BC36V9AH

FAQs

Q: Can the OL1500HV be mounted in a rack and used as a tower?
A: Yes. It is a 2U rack/tower unit supplied with a rack mounting kit, rail slide kit and tower stand set.

Q: What input voltage does this model support?
A: It is the 230V high-voltage (HV) model, supporting 220/230/240 VAC input at 40-70 Hz.

Q: How can I monitor the UPS over a network?
A: The unit has USB (HID) and RS-232 (DB9) ports built in, and an optional SNMP card adds network monitoring. All three communication methods can operate at the same time.

Q: Can I replace the batteries without shutting down my equipment?
A: Yes. The three 12V/9AH sealed lead-acid batteries are hot-swappable. The replacement pack is BC36V9AH.

Q: How can I extend the runtime?
A: Runtime can be extended with the BP36V18AH extended battery module. Built-in runtime is 9.44 minutes at half load and 3.30 minutes at full load.

Q: What outlets does it provide?
A: It has eight IEC 320 C13 outlets, all battery and surge protected. The input uses an IEC 320 C14 inlet.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
