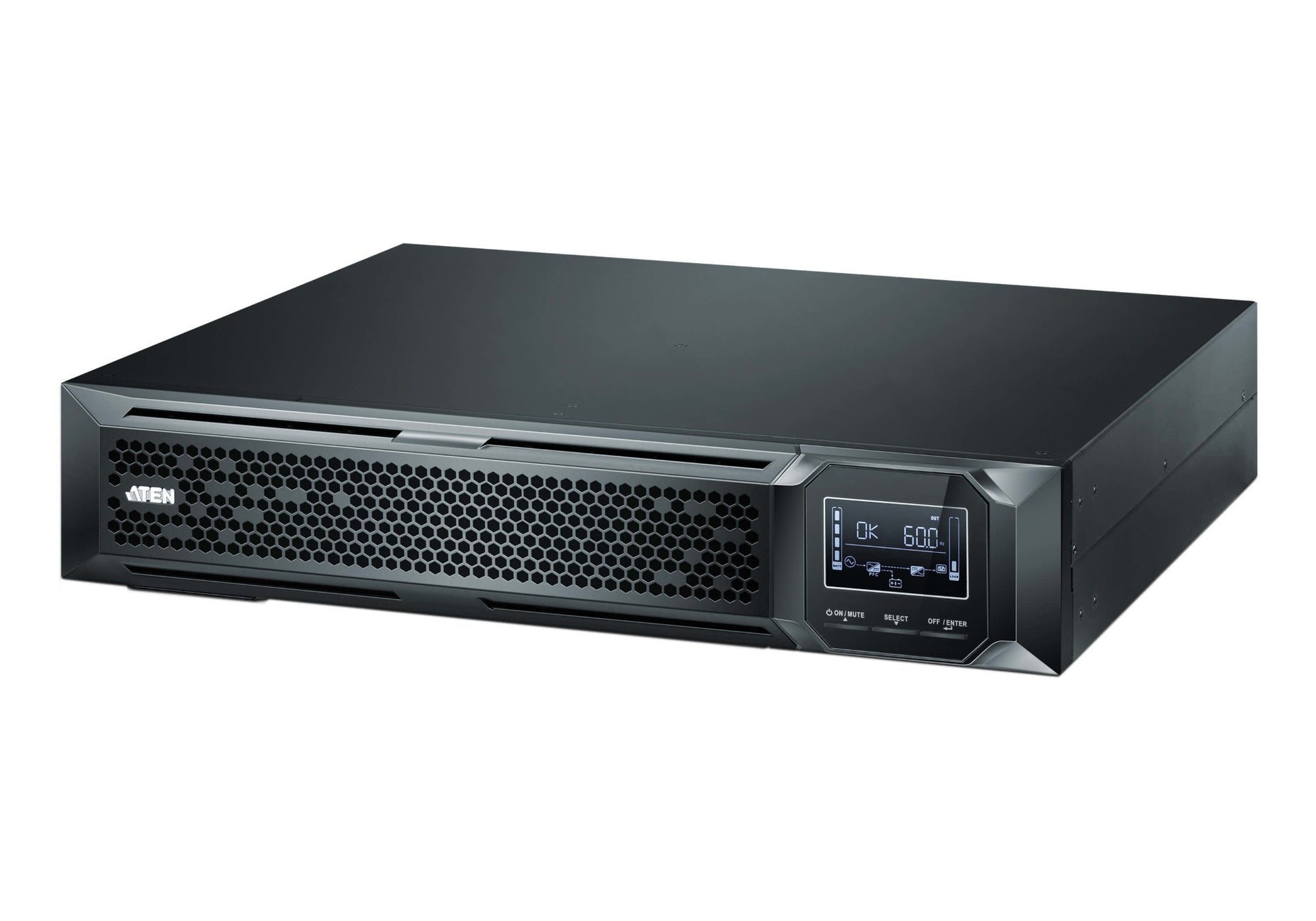

ATEN OL1000HV-AT-G | OL1000HV Online Rack/Tower UPS, 1000VA/1000W, 8x C13

Name: ATEN OL1000HV-AT-G | OL1000HV Online Rack/Tower UPS, 1000VA/1000W, 8x C13
Brand: ATEN
SKU: OL1000HV-AT-G
Price: 1042.36 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:OL1000HV-AT-G

Stock Status: Enquire

$1,042.36 inc. GST

$947.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ATEN OL1000HV is a 1000VA/1000W double-conversion online UPS for 220/230/240V mains, built in a 2U rack or tower form factor. It provides 8 IEC C13 outlets that are all battery and surge protected, USB and DB9 (RS-232) communication, and an EPO connector for remote emergency shutdown. This 230V regional variant suits server rooms, network cabinets and small data centres that need clean sine wave power with zero transfer time.

With an output power factor of 1, voltage regulation within 1% and hot-swappable sealed lead-acid batteries, the OL1000HV keeps critical equipment protected and serviceable without downtime. An LCD panel shows input voltage and battery status, programmable outlets allow load segments to be managed independently, and an optional SNMP card adds network monitoring. A rack mounting kit, rail slide kit, tower stand set, USB and RS-232 cables and power cables are included.

Features

- True double-conversion with output power factor of 1
- Output voltage regulation within 1%
- Cold start capability
- Hot-swappable battery design for no-downtime servicing
- Programmable power management outlets to control load segments independently
- EPO connector on rear panel for remote emergency shutdown
- SNMP, USB and RS-232 communications can operate simultaneously
- Energy saving ECO mode with efficiency above 96%
- LCD panel showing input voltage and battery capacity, with audible alarms
- Smart charger adjusts voltage to ambient temperature
- Rack mounting kit, rail slide kit and tower stand set included

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 1000VA / 1000W, rated power factor 1
- Double-conversion online topology
- Input: 220/230/240 VAC, IEC 320 C14 plug, 40-70 Hz
- Input voltage range: 160-300 VAC at 100% load, 110-300 VAC at 50% load
- Output: 8 x IEC 320 C13, all battery and surge protected
- On-battery waveform: sine wave, 50/60Hz
- Transfer time: 0 ms (AC to battery), 4 ms (inverter to bypass, ECO)
- Harmonic distortion: 2% THDi or less (linear load)
- Batteries: 2 x 12V/9Ah sealed lead-acid, hot-swappable
- Runtime: 9.44 min at half load, 3.10 min at full load
- Communication: USB (HID), RS-232 serial, optional SNMP card, EPO connector
- Form factor: 2U Rack/Tower, 8.8 x 43.8 x 41.0 cm, 12.7 kg
- Operating temperature: 0-40°C, audible noise under 50 dB at 1m
- Certifications: CE, RoHS

FAQs

Q: Is the OL1000HV a true online UPS?
A: Yes. It uses double-conversion online topology with a 0 ms transfer time from AC to battery and sine wave output on battery.

Q: Can it be installed in a rack and as a tower?
A: Yes. It is a 2U rack/tower unit and ships with a rack mounting kit, rail slide kit and tower stand set.

Q: What outlets does it provide?
A: It has 8 IEC 320 C13 outlets, all battery and surge protected. The input uses an IEC 320 C14 plug.

Q: Can I add network monitoring?
A: Yes. USB (HID) and RS-232 ports are built in, and an optional SNMP card adds SNMP/HTTP remote monitoring. All communication interfaces can operate at the same time.

Q: Can the runtime be extended?
A: Yes. The BP24V18AH extended battery module is supported, and the BC24V9AH is the replacement battery pack for the internal batteries.

Q: Are the batteries hot-swappable?
A: Yes. The two 12V/9Ah sealed lead-acid batteries are hot-swappable, so they can be replaced without shutting down the connected load.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
