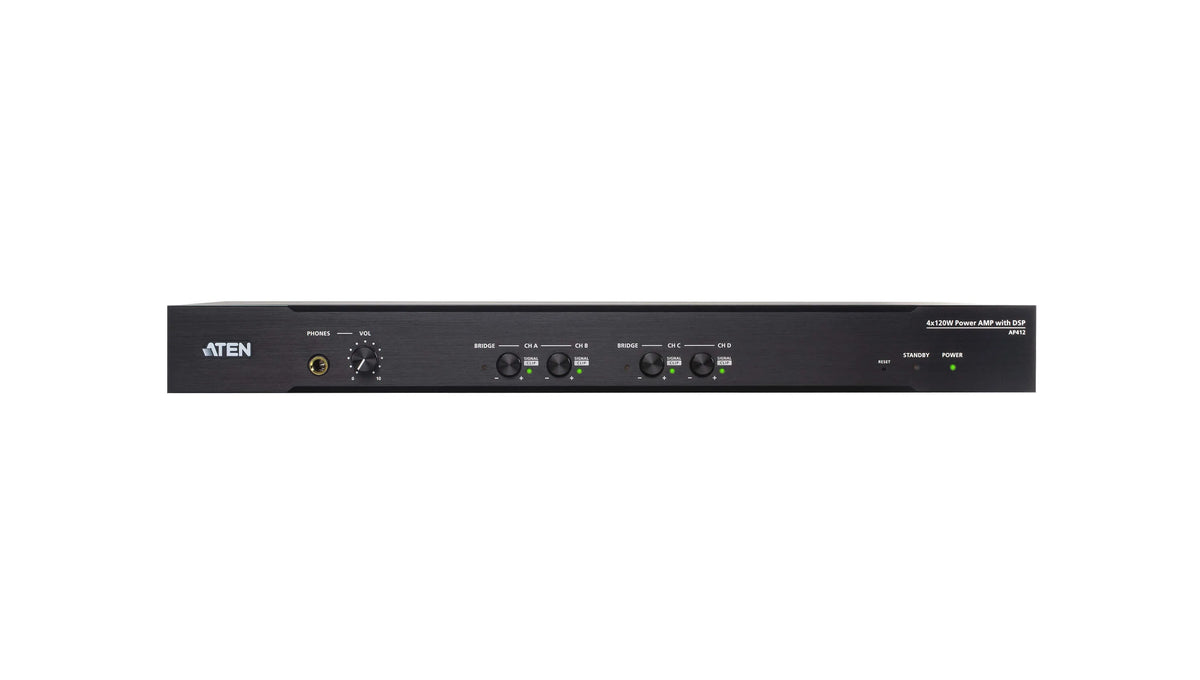

• Black aten ap412-at-u 4-channel 120w class-d dsp power amplifier with usb audio and multiple ports for pro sound mixing

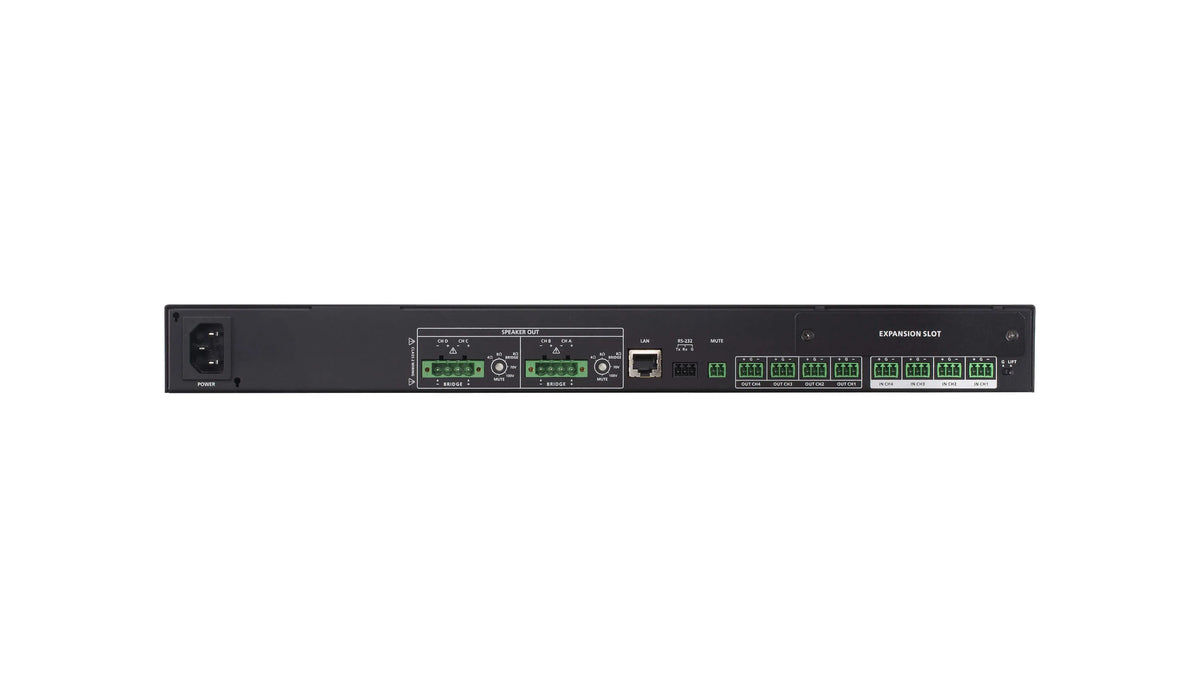

  • Black rectangular network switch with green terminal blocks and power input port on the back of aten ap412 4-channel amplifier
  • Black aten ap412 4-channel 120w class-d dsp power amplifier network switch back with multiple labeled ports
  • A schematic diagram illustrating the back of the aten ap412-at-u 4-channel 120w dsp power amplifier with labeled ports and controls
1 4

ATEN

ATEN AP412-AT-U | AP412 4-Channel 120W Class-D DSP Power Amplifier, 1U Rack

ATEN AP412-AT-U | AP412 4-Channel 120W Class-D DSP Power Amplifier, 1U Rack

AP412-AT-U

Stock Status: Enquire

$2,603.23 inc. GST
$2,366.57 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ATEN AP412 is a professional 4-channel Class-D power amplifier delivering 120W per channel, purpose-built for commercial public address systems, installed AV, and enterprise audio deployments. Its built-in Sigma DSP — configurable via WebGUI or ATEN Audio Wizard — provides a full processing suite including 5-band EQ, speaker EQ, compressor, delay, and limiter with up to 20 storable presets. Flexible output modes support 4/8-ohm low-impedance or 70/100V line speaker systems, while balanced and unbalanced mic/line inputs ensure compatibility with a wide range of signal sources.

The AP412 features an expansion slot accepting the AP901 2-channel Dante card for Audio-over-IP integration or the AP902 Mic/Line Preamp card for additional inputs, making it a scalable foundation for growing installations. RS-232 and Ethernet control integrate natively with the ATEN VK Control System, and a fanless, PFC-equipped design ensures silent, energy-efficient operation in rack environments. Comprehensive protection circuitry guards against short circuits, over/under-voltage, overtemperature, and high-frequency overload. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- WebGUI and ATEN Audio Wizard configurable DSP for precise, installation-specific audio tuning
- 5-band EQ, speaker EQ, compressor, delay, and limiter with up to 20 storable DSP presets
- Supports balanced and unbalanced mic/line-level inputs for broad source compatibility
- Drives 4/8-ohm low-impedance or 70/100V line (high-impedance) loudspeaker systems
- Expansion slot accepts AP901 2-CH Dante card for Audio-over-IP network integration
- Expansion slot also supports AP902 Mic/Line Preamp card for additional input channels
- Native ATEN VK Control System compatibility via RS-232 and Ethernet
- Dry contact input for external trigger and automation integration
- Configurable auto standby mode (-40 / -50 dBu threshold) for energy saving
- PFC fly-back power supply for high efficiency and power quality compliance
- Fanless design eliminates fan noise and dust accumulation
- Ground-lift switch eliminates power circuit hum in sensitive installations
- Comprehensive system protection: short circuit, over/under-voltage, high-frequency overload, overtemperature, auto-mute on thermal limit
- 1U rack-mount enclosure for clean, professional installation

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output Power: 4 × 120W
- Speaker Output: 4/8-ohm low impedance or 70/100V line (high impedance)
- Inputs: Balanced / unbalanced mic / line-level
- DSP: Built-in Sigma DSP — 5-band EQ, speaker EQ, compressor, delay, limiter
- DSP Presets: Up to 20 storable presets
- Expansion Slot: 1 × slot for AP901 (2-CH Dante) or AP902 (Mic/Line Preamp) card
- Control Interfaces: RS-232, Ethernet (ATEN VK Control System compatible)
- Additional I/O: Dry contact input
- Auto Standby Threshold: -40 / -50 dBu (selectable)
- Power Supply: PFC fly-back (Power Factor Correction)
- Cooling: Fanless design
- Form Factor: 1U rack-mount enclosure
- Protection: Short circuit, over/under-voltage, high-frequency overload, overtemperature, auto-mute on thermal limit

FAQs

Q: What speaker systems is the ATEN AP412 compatible with?
A: The AP412 supports both low-impedance (4/8-ohm) and high-impedance (70V/100V line) speaker systems, making it suitable for everything from small meeting rooms to large-scale distributed PA installations across corridors, warehouses, and multi-zone commercial spaces.

Q: How is the DSP on the AP412 configured?
A: The built-in Sigma DSP is fully configurable via the ATEN WebGUI (browser-based, no software install required) or the ATEN Audio Wizard application. You can program 5-band EQ, speaker EQ, compressor, delay, and limiter settings, and save up to 20 presets for quick scene recall.

Q: Can the AP412 be integrated into a Dante Audio-over-IP network?
A: Yes. The AP412 includes an expansion slot that accepts the optional AP901 2-Channel Dante Expansion Card, enabling direct integration into Dante AoIP networks for networked audio distribution without additional hardware converters.

Q: Is the AP412 compatible with the ATEN VK Control System?
A: Yes. The AP412 supports RS-232 and Ethernet control interfaces and integrates natively with the ATEN VK Series Control System, allowing it to be managed as part of a larger room automation or AV control solution.

Q: Is the AP412 suitable for permanent rack installation in noise-sensitive environments?
A: Absolutely. The AP412 uses a completely fanless design with a PFC power supply, eliminating fan noise and reducing dust ingress — ideal for permanent installation in boardrooms, broadcast facilities, houses of worship, and any environment where background noise is a concern.

Q: Can I purchase the ATEN AP412 in Australia from IP Trading?
A: Yes. The ATEN AP412 is available in stock at iptrading.com.au and ready for fast dispatch Australia-wide. IP Trading is a specialist B2B IT and AV hardware reseller supplying businesses, integrators, and government organisations across Australia.
