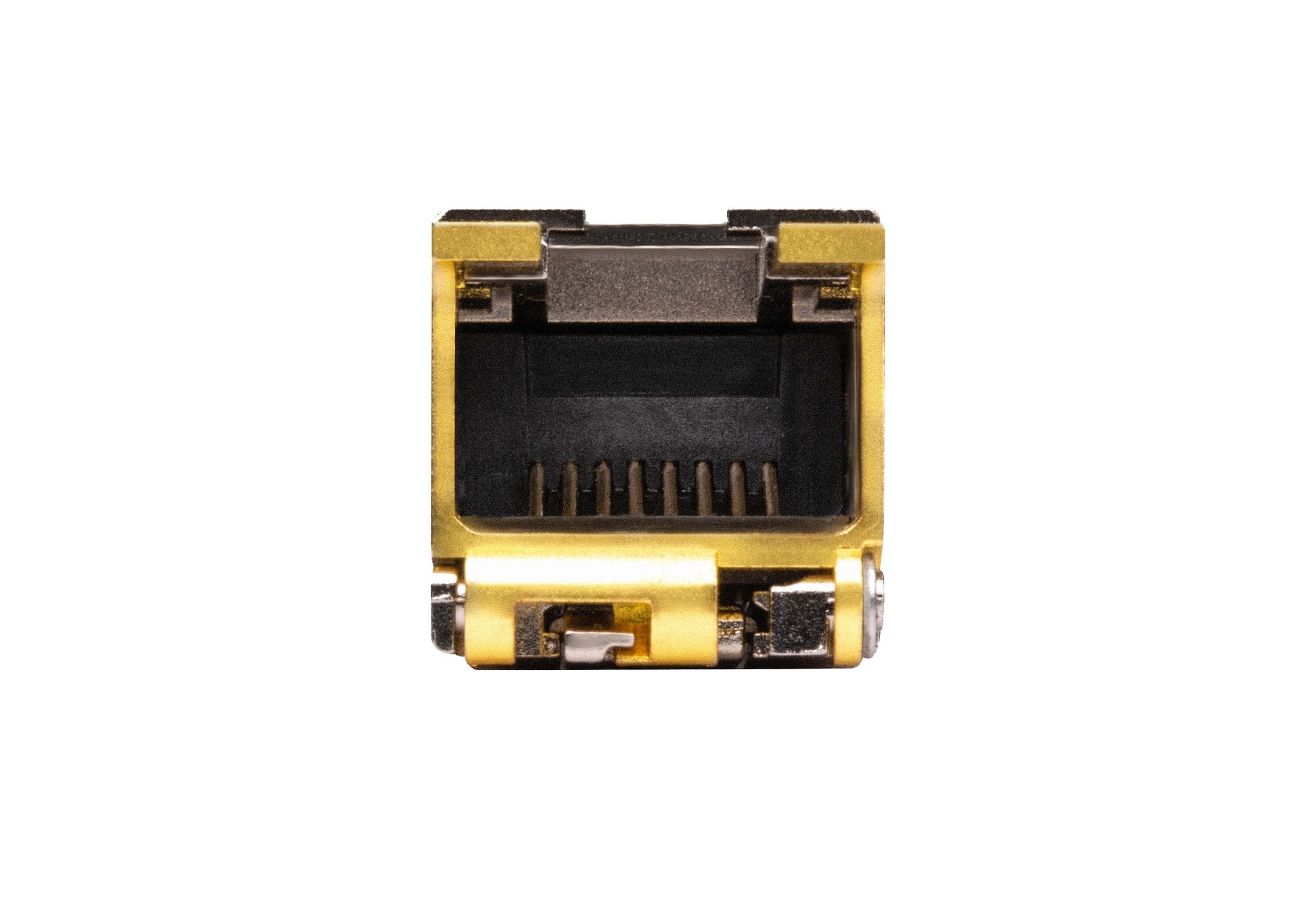

• Aten 2a-145g 10gbe copper sfp plus transceiver gold ethernet port with black interior and metallic contacts for cat6a/7

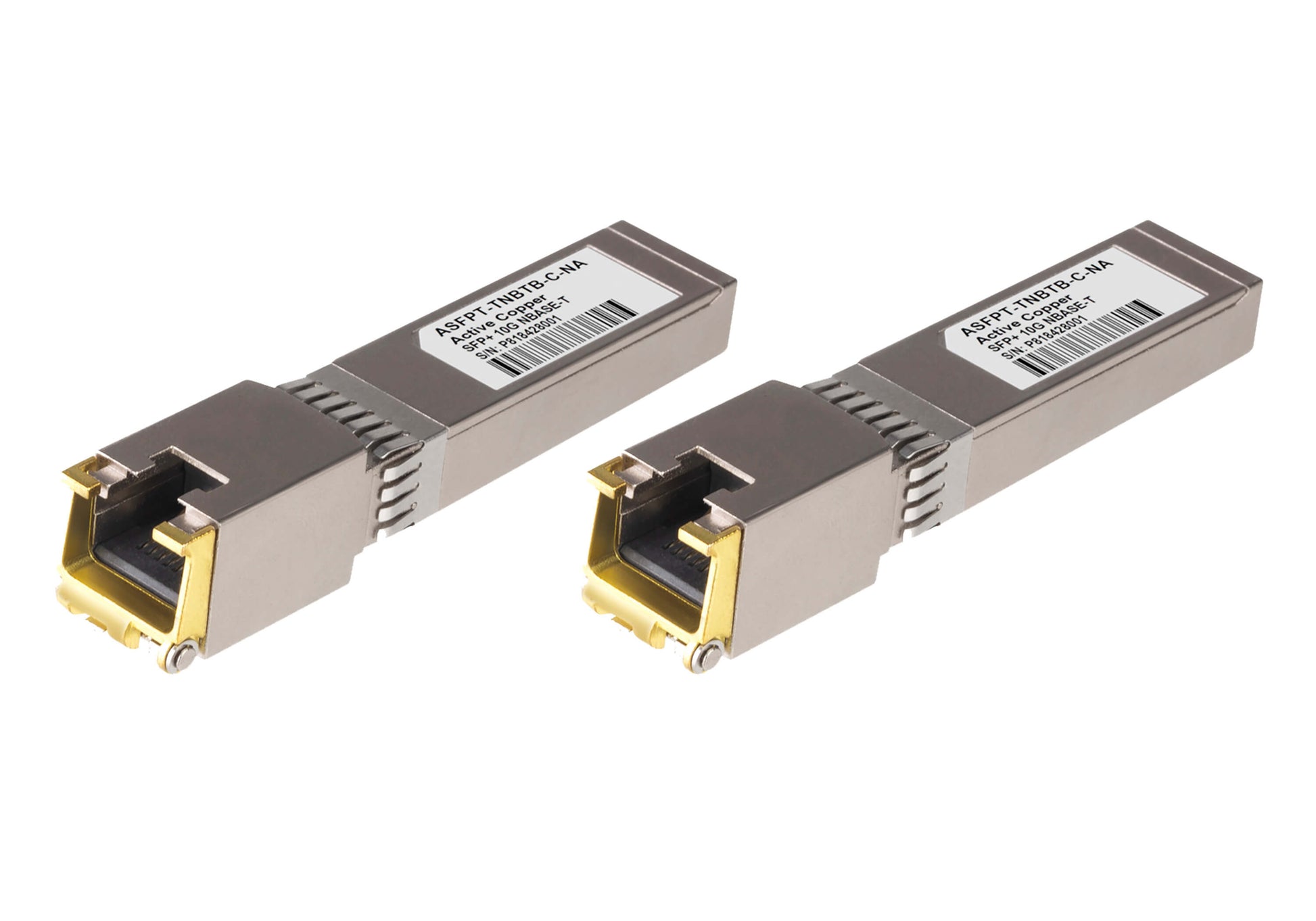

  • Two silver aten 2a-145g 10gbe copper sfp+ transceivers with gold-plated connectors and white labels
1 2

ATEN

ATEN 2A-145G | 10GbE Copper SFP+ Transceiver, RJ-45, Cat6a/7, 30m

ATEN 2A-145G | 10GbE Copper SFP+ Transceiver, RJ-45, Cat6a/7, 30m

2A-145G

Stock Status: Enquire

$819.72 AUD
$819.72 AUD
$819.72 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN 2A-145G is a 10Gb Ethernet Copper SFP+ Transceiver that delivers high-speed 10 Gbps connectivity over standard Cat 6a or Cat 7 copper cabling — no fibre infrastructure required. Designed for deployment in data centres and enterprise environments, it slots directly into SFP+ ports and supports cable runs up to 30 metres, making it a cost-effective alternative to optical transceivers for short-reach applications. It is fully compliant with IEEE 802.3az (Energy-Efficient Ethernet) and IEEE 802.3bz standards.

The 2A-145G is specifically compatible with ATEN KG0016 and KG0032 KVM switches equipped with SFP+ ports, enabling seamless integration into existing copper-based network infrastructure. Its compact SFP+ form factor and plug-and-play design ensure fast, flexible deployment without additional configuration. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- 10GbE copper connectivity over standard Cat 6a/7 cabling — no fibre required
- Compatible with ATEN KG0016 and KG0032 KVM switches via SFP+ ports
- Supports data rates up to 10 Gbps
- Maximum cable reach of 30 metres
- IEEE 802.3az Energy-Efficient Ethernet and IEEE 802.3bz compliant
- Plug-and-play deployment — no additional configuration required
- Cost-effective short-reach 10GbE solution for data centre environments

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form Factor: SFP+
- Max. Data Rate: 10 Gbps
- Connector Type: RJ-45
- Media: Cat 6a / Cat 7
- Max. Cable Distance: 30 m
- Protocol Compliance: IEEE 802.3az / IEEE 802.3bz
- Operating Temperature: 0 – 70 °C
- Storage Temperature: -45 – 90 °C
- Weight: 0.03 kg
- Dimensions (L x W x H): 7.03 x 1.38 x 1.33 cm

FAQs

Q: What cable type does the ATEN 2A-145G require?
A: The 2A-145G requires Cat 6a or Cat 7 copper cabling to achieve its rated 10 Gbps data rate over distances up to 30 metres.

Q: Which ATEN switches is the 2A-145G compatible with?
A: The 2A-145G is designed for use with the ATEN KG0016 and KG0032 KVM switches that feature SFP+ ports, allowing them to connect to copper-based Ethernet devices at 10 Gbps.

Q: What is the maximum cable distance supported by the 2A-145G?
A: The transceiver supports a maximum cable distance of 30 metres over Cat 6a or Cat 7 copper cabling.

Q: Does the 2A-145G support Energy-Efficient Ethernet?
A: Yes. The 2A-145G is compliant with IEEE 802.3az (Energy-Efficient Ethernet), which helps reduce power consumption during periods of low network activity.

Q: Is the 2A-145G compatible with third-party switches that have SFP+ ports?
A: The 2A-145G is specifically validated for use with ATEN KG0016 and KG0032 switches. Compatibility with third-party SFP+ equipment is not guaranteed — contact the IP Trading team for advice on your specific environment.

Q: Can I purchase the ATEN 2A-145G in Australia through IP Trading?
A: Yes. The ATEN 2A-145G is available through iptrading.com.au, with expert pre-sales support and fast fulfilment for Australian business customers.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
