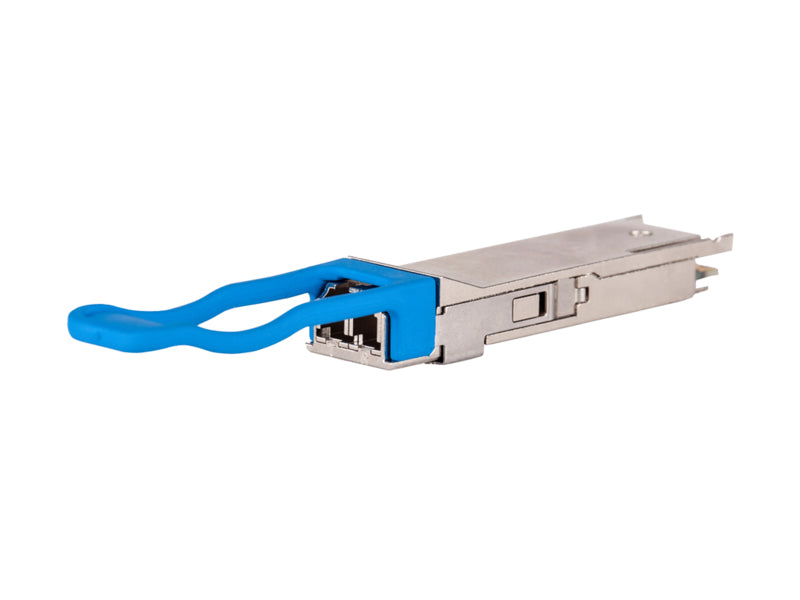

• HPE Q9G82A 40G QSFP+ silver transceiver with blue latch
1 1

Aruba

Aruba Q9G82A | 40G QSFP+ ER4 Transceiver, Single-Mode, 40km, LC

Aruba Q9G82A | 40G QSFP+ ER4 Transceiver, Single-Mode, 40km, LC

Authorised Aruba Partner

Q9G82A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Aruba Q9G82A is a 40G QSFP+ ER4 transceiver designed for long-reach 40 Gigabit Ethernet links over single-mode fibre. It supports distances of up to 40 km and connects through a duplex LC connector, making it well suited to data centre interconnects and campus aggregation links that span long fibre runs.

This 40GBASE-ER4 optic operates in the 1310 nm band using four lanes, and fits QSFP+ ports on compatible switches. Choose the ER4 variant when your fibre path exceeds the reach of shorter 40G optics and you need to stay on standard single-mode LC cabling.

Features

- Long-reach 40G connectivity for data centre and campus aggregation links
- Single-mode fibre support up to 40 km
- Duplex LC connector for standard single-mode cabling
- 40GBASE-ER4 standard for interoperable 40G Ethernet optics

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: Q9G82A
- Form factor: QSFP+
- Standard: 40GBASE-ER4 (IEEE 802.3bm)
- Data rate: 40 Gbps
- Media: Single-mode fibre (SMF)
- Connector: Duplex LC
- Maximum distance: 40 km
- Wavelength: 1310 nm band (4 lanes, approx. 1271-1331 nm)

FAQs

Q: What fibre type does the Q9G82A require?
A: It is designed for single-mode fibre (SMF) with a duplex LC connector, supporting distances of up to 40 km.

Q: What is the difference between ER4 and LR4 40G optics?
A: Both are 40G QSFP+ single-mode optics, but ER4 is built for much longer reach, up to 40 km, whereas LR4 optics cover shorter distances. Choose ER4 when your fibre run is long.

Q: Which port type does this transceiver fit?
A: It fits QSFP+ ports on compatible switches and routers that support 40GBASE-ER4 optics. Check your platform's supported optics list before ordering.

Q: What connector does the Q9G82A use?
A: It uses a duplex LC connector, so it works with standard duplex LC single-mode patch cables.

Q: What wavelength does it operate on?
A: It operates in the 1310 nm band across four lanes, approximately 1271 to 1331 nm, as defined for 40GBASE-ER4.

Q: Where would I typically use a 40km 40G optic?
A: Typical uses include long data centre interconnects, campus aggregation links and metro-scale 40G connections where shorter-reach optics cannot span the distance.
