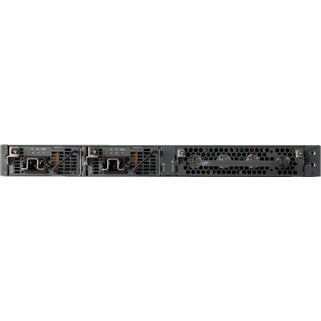

Aruba JW743A | 7210 Mobility Controller, 4x 10G SFP+, 2x Dual-Personality, RW

Authorised Aruba Partner

SKU:JW743A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

End of life

This item has been replaced by R7H97A.

Description

The Aruba 7210 Mobility Controller is a 1U rack-mount ArubaOS controller for large campus and high-density WLAN deployments. It provides 4x 10G SFP+ ports and 2x dual-personality ports (10/100/1000BASE-T or SFP), manages up to 512 APs and supports up to 16,384 concurrent users and devices. This JW743A model is the Rest of World (RW) regulatory domain variant with a 350W AC power supply.

Stateful firewall policy enforcement per user and per device delivers 20 Gbps of firewall throughput and 7 Gbps of encrypted throughput. The controller supports Dynamic Segmentation for unified wired and wireless access policies, clustering with in-service software upgrades for high availability, and Wi-Fi 6/6E/7 and WPA3 access points. SFP and SFP+ transceivers are not included.

Features

- Runs the ArubaOS network operating system
- Dynamic Segmentation enforces unified wired and wireless access policies
- Stateful firewall policy enforcement per user and per device
- Controller clustering with in-service software upgrades for high availability
- Application awareness and visibility
- Can act as an SD-WAN gateway
- Supports Wi-Fi 6/6E/7 and WPA3 access points

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 10GBase-X SFP+ ports (10G or 1G supported)
- 2 x dual-personality ports (10/100/1000BASE-T or 1000BASE-X SFP)
- 1U rack-mountable form factor
- Includes 1 x 350W AC power supply (no SFP/SFP+ transceivers included)
- Up to 512 campus or remote AP licenses
- Up to 16,384 concurrent users/devices
- 4,096 VLANs
- 2 million active firewall sessions
- Firewall throughput: 20 Gbps
- Wired bridged throughput: 20 Gbps
- Encrypted throughput (3DES, AES-CBC-256, AES-CCM, AES-GCM-256): 7 Gbps
- 8,192 concurrent GRE tunnels
- 16,384 concurrent IPsec sessions
- 8,192 concurrent SSL sessions
- Maximum power consumption: 110W
- Maximum heat dissipation: 375 BTU/hour
- Operating temperature: 0 to 40 °C
- MTBF: 106,536 hours at 40 °C
- Regulatory domain: Rest of World (RW)
- Ports: USB 2.0, mini-USB and RJ45 console, out-of-band management port

FAQs

Q: How many access points can the Aruba 7210 controller manage?
A: The 7210 supports up to 512 campus or remote AP licenses and up to 16,384 concurrent users and devices.

Q: Are SFP+ transceivers included with the JW743A?
A: No. The controller ships with a 350W AC power supply but no SFP or SFP+ transceivers, so optics must be ordered separately.

Q: What are the dual-personality ports?
A: The 2 dual-personality ports can operate as either 10/100/1000BASE-T copper ports or 1000BASE-X SFP ports, depending on your cabling.

Q: Can the 4 SFP+ ports run at 1G?
A: Yes. The 4 x 10GBase-X SFP+ ports support both 10G and 1G operation.

Q: What does the RW designation mean?
A: RW means this unit is the Rest of World regulatory domain variant of the 7210 controller.

Q: Does the 7210 support high availability?
A: Yes. It supports controller clustering with in-service software upgrades to keep the wireless network available during maintenance.
