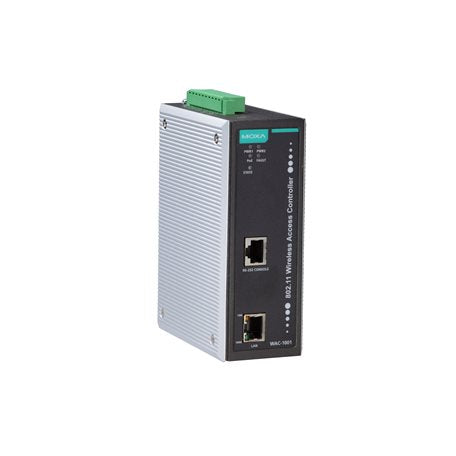

Moxa WAC-1001 | Industrial Wireless Access Controller, 0-60C

Authorised Moxa Partner

SKU:WAC-1001

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The WAC-1001 industrial wireless access controller delivers seamless Turbo Roaming for Moxa AWK-RTG and TAP series access points, with handover times under 50 ms and support for up to 110 WLAN radios. This is the standard temperature model, suited to controlled industrial enclosures and cabinets, and is distinct from the wide-temperature WAC-1001-T variant.

Built for continuous operation, it offers 1-on-1 hot backup controller failover and redundant dual 12 to 48 VDC power inputs. Security and management are covered with IEEE 802.1X/RADIUS, HTTPS, SSH and SNMPv1/v2c/v3, while DIN-rail or optional wall mounting and an integrated relay alarm output simplify on-site installation and monitoring.

Features

- Controller-based Turbo Roaming with handover under 50 ms
- Compatible with Moxa AWK-RTG and TAP series access points
- 1-on-1 hot backup controller failover
- Redundant dual 12 to 48 VDC power inputs
- IEEE 802.11i-compliant wireless security
- IEEE 802.1X/RADIUS and WPA/WPA2 support
- DIN-rail mounting or optional wall mounting
- Configuration backup
- Integrated DI/DO for on-site monitoring and warnings

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100/1000BaseT(X) RJ45 port
- Turbo Roaming handover time: 50 ms
- Supports up to 110 WLAN radios
- Controller failover: 1-on-1 hot backup
- Input voltage: 12 to 48 VDC, redundant dual inputs
- Input current: 0.6 A @ 12 VDC, 0.15 A @ 48 VDC
- Power source: PoE (IEEE 802.3af)
- Console port: RS-232 via 8-pin RJ45
- Alarm contact: 1 relay output, 1 A @ 24 VDC
- Management: SNMPv1/v2c/v3, Syslog, Telnet, TFTP, web console
- Security: HTTPS/SSL, RADIUS, SSH
- Operating temperature: -10 to 60°C (14 to 140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: Which access points work with the WAC-1001?
A: The WAC-1001 supports Moxa AWK-RTG series and TAP series access points for controller-based Turbo Roaming.

Q: How many WLAN radios can the WAC-1001 manage?
A: It supports up to 110 WLAN radios under a single controller.

Q: What is the roaming handover time?
A: Controller-based Turbo Roaming delivers handover times of 50 ms, suitable for moving vehicles and automated equipment.

Q: Does the WAC-1001 support controller redundancy?
A: Yes, it supports 1-on-1 hot backup controller failover, and has redundant dual 12 to 48 VDC power inputs.

Q: How does the WAC-1001 differ from the WAC-1001-T?
A: The WAC-1001 is the standard temperature model rated for -10 to 60°C, while the WAC-1001-T is the wide-temperature variant rated for -40 to 75°C.

Q: How is the WAC-1001 mounted?
A: It can be DIN-rail mounted, or wall mounted using the optional wall-mounting accessory.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
