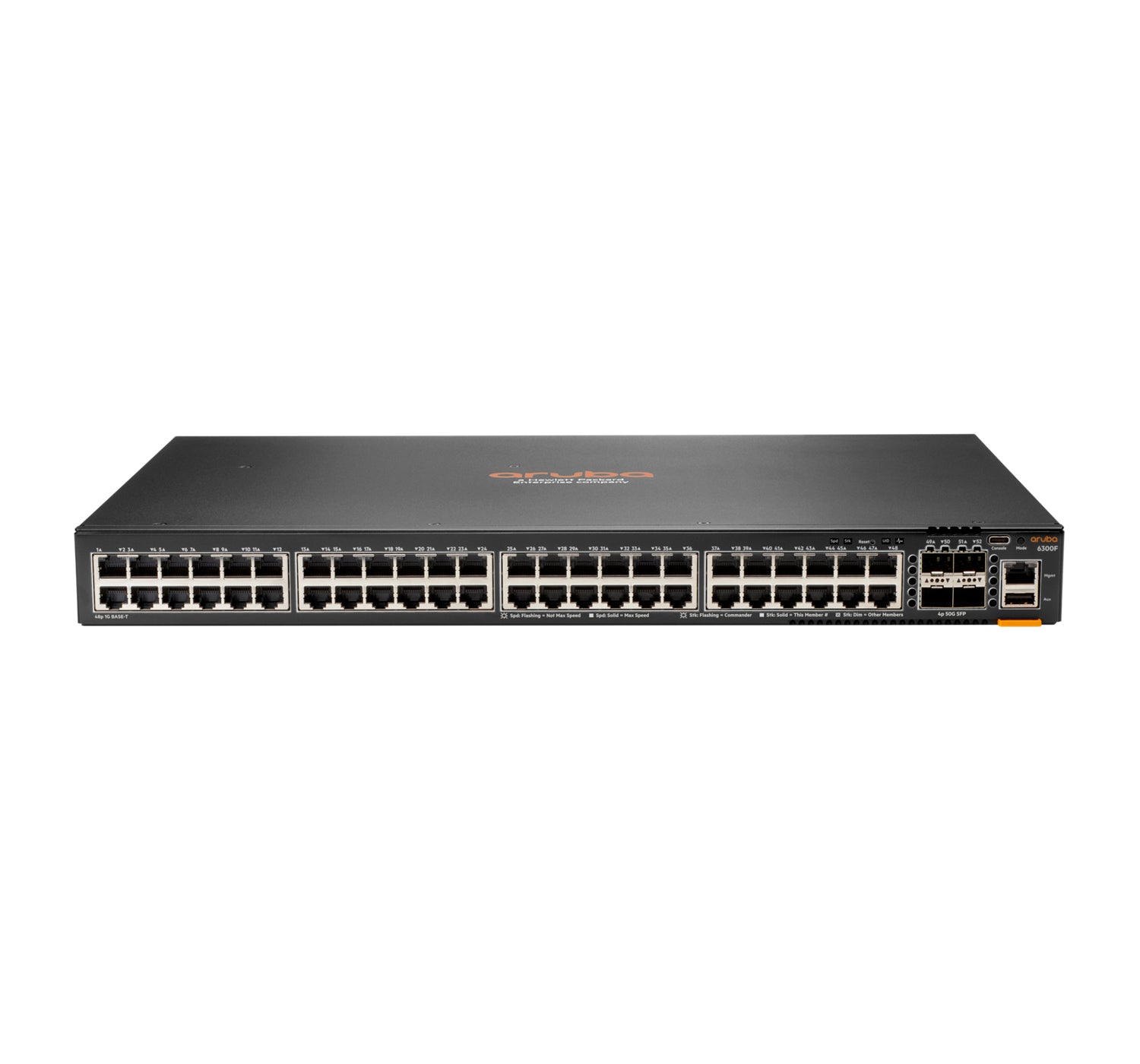

Aruba JL667A#ABG | CX 6300F 48-Port Gigabit Switch, 4x SFP56

Authorised Aruba Partner

SKU:JL667A#ABG

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Aruba CX 6300F 48-port Gigabit Layer 3 managed switch delivers 48 x 10/100/1000BASE-T ports and 4 x SFP56 uplinks in a fixed 1U chassis. This non-PoE model with a fixed 200W power supply suits enterprise access, aggregation and data centre top-of-rack deployments that need high-speed uplinks and VSF stacking.

Running the AOS-CX operating system on the Aruba Gen7 ASIC architecture, it supports advanced Layer 3 routing including BGP, OSPF, EVPN, VXLAN and VRF, with up to 880 Gbps of switching capacity. Management is available through Aruba Central or Aruba NetEdit, and the Network Analytics Engine provides intelligent monitoring and remediation.

Features

- AOS-CX modern, database-driven operating system
- Aruba Network Analytics Engine for intelligent monitoring and remediation
- Layer 3 routing with BGP, OSPF, EVPN, VXLAN and VRF
- Robust security and QoS capabilities
- VSF stacking for simplified, high-bandwidth switch clusters
- Management via Aruba Central or Aruba NetEdit
- Aruba Dynamic Segmentation support
- Built on the Aruba Gen7 ASIC architecture

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10/100/1000BASE-T ports
- 4 x 1/10/25/50GbE SFP56 ports for uplink and stacking
- Switching capacity: 880 Gbps
- Throughput: 660 Mpps
- Stacking bandwidth: up to 200 Gbps (VSF)
- Latency: 2.28 µs (1G), 1.46 µs (10G), 1.90 µs (25G), 3.49 µs (50G)
- Quad-core ARM Cortex A72 at 1.8GHz, 8GB DDR4, 32GB eMMC
- 8MB shared packet buffer
- Internal fixed 200W power supply with fixed fans
- 1U rack-mountable, non-PoE
- USB Type-C serial console port
- Layer 3 managed: BGP, OSPF, EVPN, VXLAN, VRF
- 50G ports support 50G DACs for interconnect and VSF stacking; 50G transceiver support is planned via a future software release

FAQs

Q: Does the Aruba JL667A#ABG support PoE?
A: No. This is a non-PoE model with 48 x 10/100/1000BASE-T ports and a fixed 200W internal power supply. A PoE-capable model from the Aruba CX 6300 range is required to power devices over Ethernet.

Q: What uplink options does this switch provide?
A: It includes 4 x SFP56 ports that support 1/10/25/50GbE. The 50G capability is for 50G DACs for interconnect and VSF stacking, with 50G transceiver support via a future software release.

Q: Can this switch be stacked?
A: Yes. It supports Virtual Switching Framework (VSF) stacking with up to 200 Gbps of stacking bandwidth.

Q: Is the power supply redundant or replaceable?
A: No. This model has an internal fixed 200W power supply and fixed fans, so it is not field-replaceable.

Q: Which Layer 3 features are supported?
A: The switch is Layer 3 managed and supports BGP, OSPF, EVPN, VXLAN and VRF running on AOS-CX.

Q: How can I manage this switch?
A: You can manage it through Aruba Central or Aruba NetEdit, or locally via the USB Type-C serial console port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
