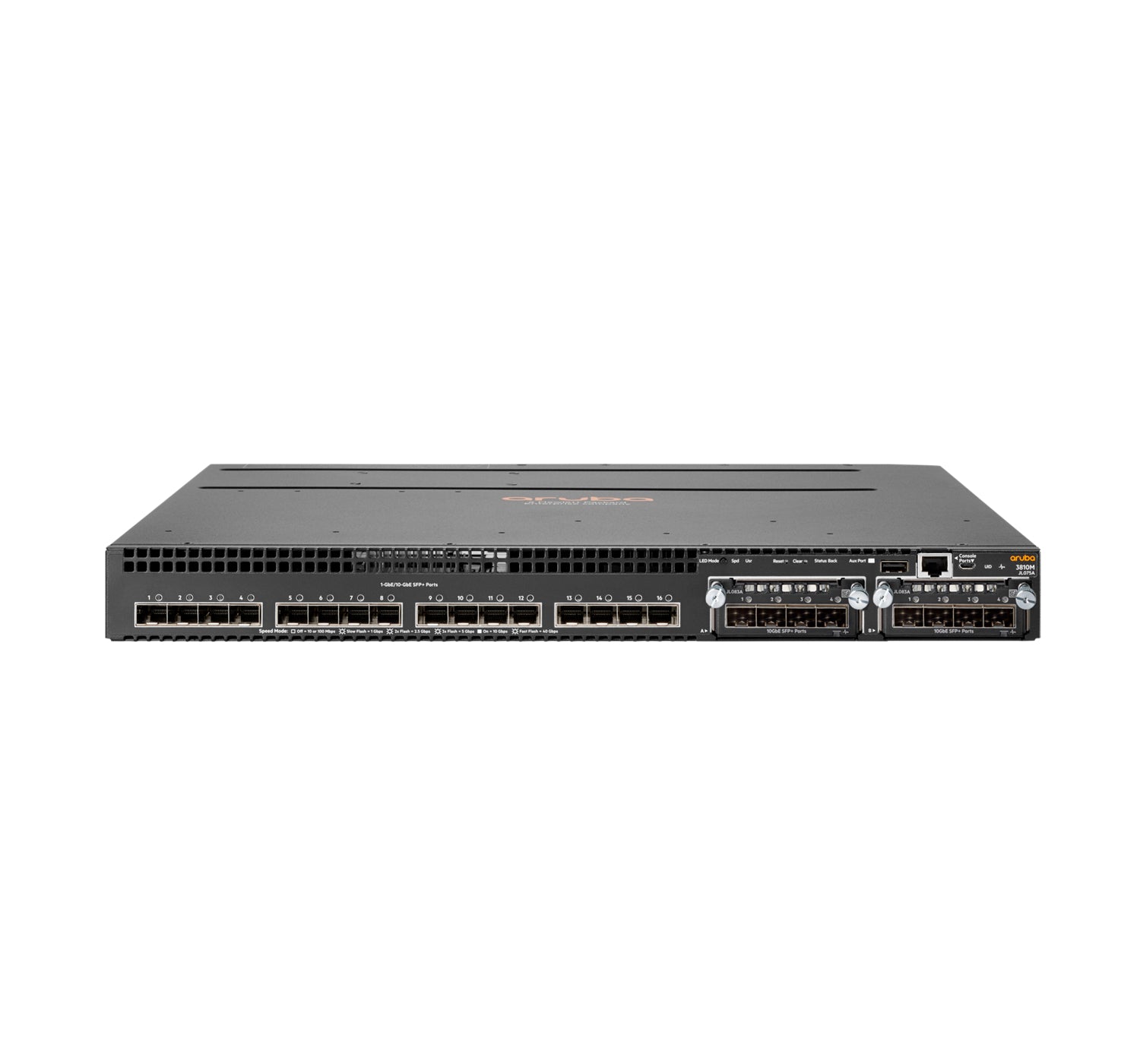

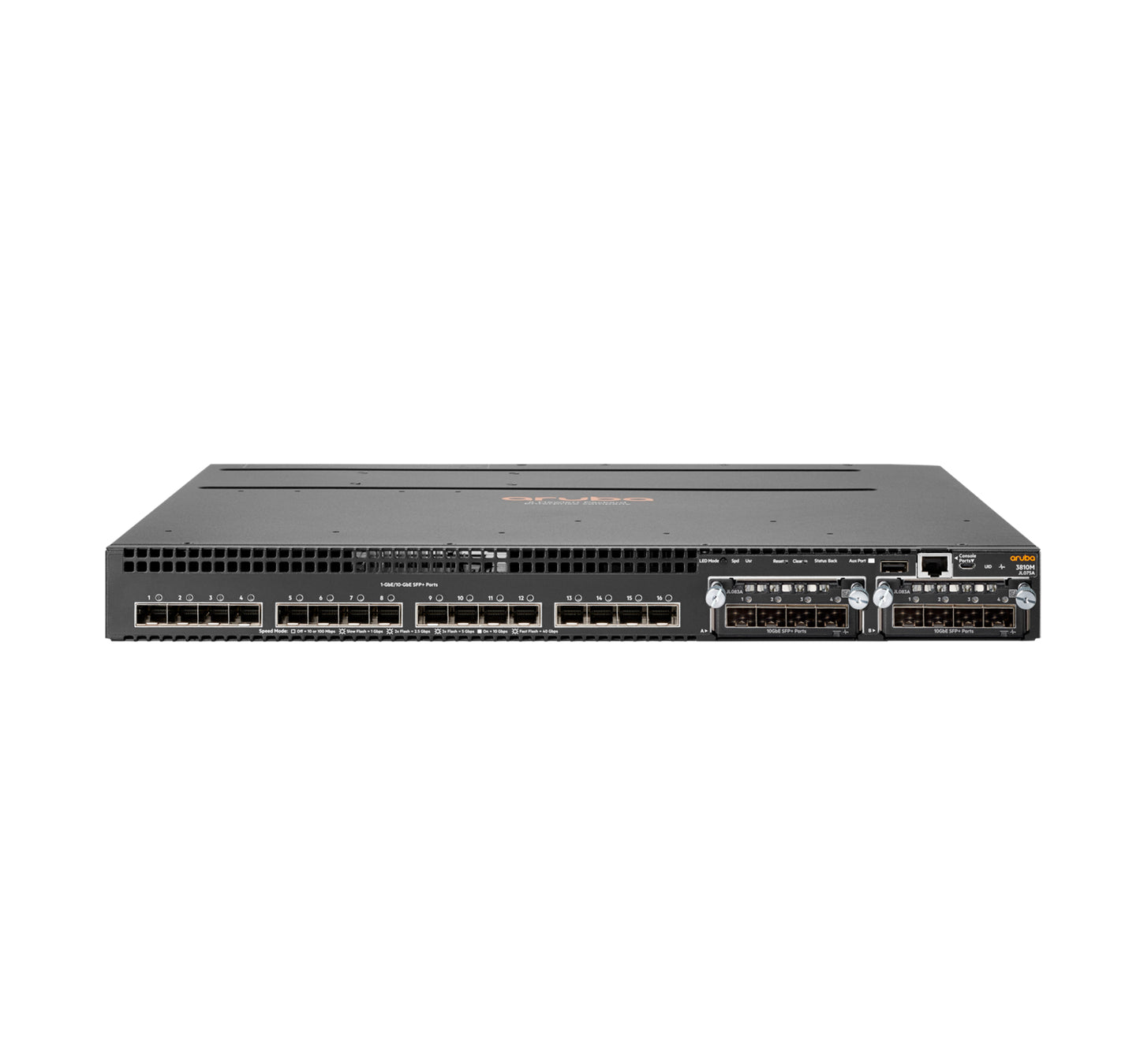

Aruba JL430A | 3810M 24-Port 10G SFP+ Layer 3 Managed Switch, 250W

Authorised Aruba Partner

SKU:JL430A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

End of life

This item has been replaced by JL658A.

Description

The Aruba JL430A 3810M is a 24-port SFP+ Layer 3 managed switch for campus access and aggregation, delivering 1G/10G fibre connectivity in a 1U rack-mountable chassis. It includes a 250W power supply and a dedicated stacking module slot, making it well suited to enterprise, SMB and branch networks that need resilient, high-performance fibre uplinks.

Layer 3 routing with OSPF, BGP-4 and RIP, a 64K MAC address table and an open module slot for additional SFP+ or 40GbE connectivity give the switch room to grow. The modular design supports a swappable power supply and fan tray, redundant power, and integration with Aruba ClearPass Policy Manager for access control.

Features

- Resilient stacking technology
- Layer 3 features including OSPF, BGP and RIP routing
- Out-of-band Ethernet management port keeps management traffic segmented from network data traffic
- Supports Aruba ClearPass Policy Manager for access control
- Modular design with swappable power supply and fan tray

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 1G/10G SFP/SFP+ ports
- Layer 3 managed switch
- 1U rack-mountable
- 250W power supply (X371 12VDC) included
- 1 stacking module slot (supports Aruba 3810M 4-port stacking module)
- 1 open module slot
- Optional module supports up to 4 x SFP+ ports or 1 x 40GbE port
- Redundant power supply supported
- MAC address table: 64K entries
- Routing table: up to 10,000 entries
- Routing protocols: OSPF, BGP-4, RIP
- Out-of-band Ethernet management port, RJ-45 serial console and micro-USB console
- Dimensions: 44.25 x 43.13 x 4.39 cm (1U)
- Weight: approx. 5.79 kg

FAQs

Q: How many SFP+ ports does the Aruba JL430A have?
A: The JL430A provides 24 x 1G/10G SFP/SFP+ ports for fibre connectivity.

Q: Does the JL430A support stacking?
A: Yes. It has a stacking module slot that supports the Aruba 3810M 4-port stacking module, enabling resilient stacking.

Q: What Layer 3 routing protocols does the switch support?
A: It supports OSPF, BGP-4 and RIP, with a routing table of up to 10,000 entries.

Q: Does the JL430A include a power supply?
A: Yes. A 250W power supply (X371 12VDC) is included, and redundant power supply operation is supported.

Q: Can I add extra uplink ports to the JL430A?
A: Yes. The switch has one open module slot that accepts an optional module providing up to 4 x SFP+ ports or 1 x 40GbE port.

Q: How is the switch managed?
A: It offers an out-of-band Ethernet management port, an RJ-45 serial console and a micro-USB console port.
