Aruba JL376A | CX 8400 Core Switch Bundle, 32p 10G, 8p 40G

Authorised Aruba Partner

SKU:JL376A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

End of life

This product is end of life. Contact us for alternatives.

Description

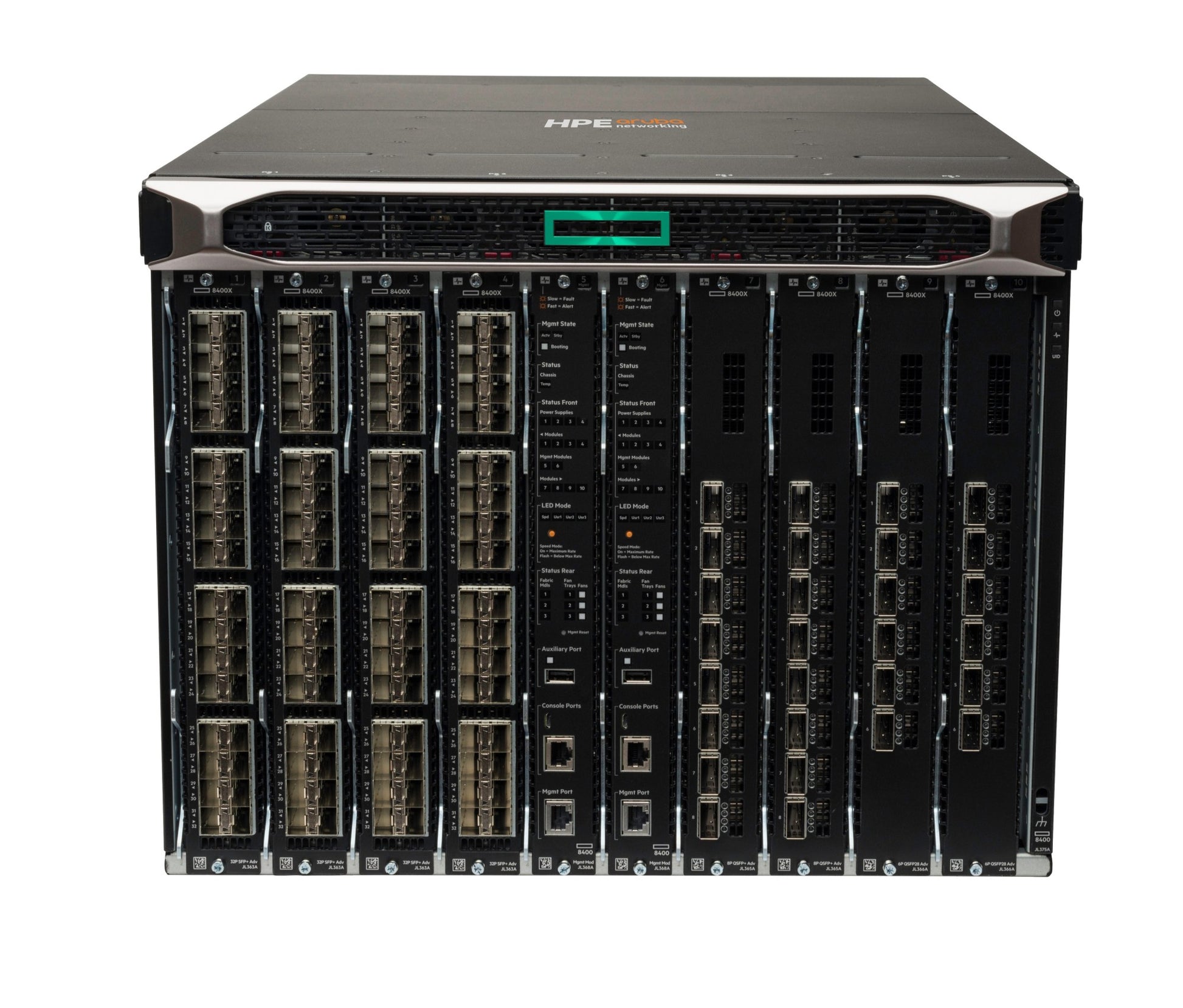

The Aruba JL376A is an Aruba CX 8400 modular core and aggregation switch bundle built on an 8-slot, 8U chassis. This bundle includes 1x management module, 3x power supplies, 2x 8400X fabric modules, 1x 32-port 10GbE line module and 1x 8-port 40GbE line module, giving you a ready-to-deploy configuration for high-density core and aggregation networks.

The CX 8400 platform delivers line-rate connectivity with an advanced Layer 2/3 feature set including BGP, EVPN, OSPF, VRF and IPv6. The chassis supports up to 8 line modules, so the switch can grow with your network, and it integrates with the CX Mobile App and NetEdit for streamlined deployment and automated configuration.

Features

- One-touch deployment with the CX Mobile App
- NetEdit support for automated configuration and verification
- Advanced Layer 2/3 feature set includes BGP, EVPN, OSPF, VRF and IPv6
- Compact 8U chassis with high-density, line-rate connectivity
- Supports up to 8 line modules
- The 32-port 10GbE module supports MACsec in hardware

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8-slot, 8U chassis with 3x fan trays, 18x fans, cable manager and X462 rack rail kit
- 1x management module
- 3x power supplies
- 2x 8400X fabric modules
- 1x 32-port 10GbE line module
- 1x 8-port 40GbE line module
- Supports up to 8 line modules
- Line-rate 10GbE/25GbE/40GbE/100GbE connectivity across the 8400 series
- Layer 2/3 feature set including BGP, EVPN, OSPF, VRF and IPv6

FAQs

Q: What is included in the Aruba JL376A bundle?
A: The bundle includes the 8-slot, 8U CX 8400 chassis with fan trays, cable manager and rack rail kit, 1x management module, 3x power supplies, 2x 8400X fabric modules, 1x 32-port 10GbE line module and 1x 8-port 40GbE line module.

Q: How many line modules does the CX 8400 chassis support?
A: The chassis supports up to 8 line modules, so you can add further modules beyond the two included in this bundle.

Q: Which routing and Layer 3 features does this switch support?
A: The CX 8400 offers an advanced Layer 2/3 feature set including BGP, EVPN, OSPF, VRF and IPv6.

Q: Does the 32-port 10GbE module support encryption?
A: Yes, the 32-port 10GbE module supports MACsec in hardware.

Q: How is the CX 8400 deployed and managed?
A: It supports one-touch deployment with the CX Mobile App and NetEdit for automated configuration and verification.

Q: What rack space does this switch require?
A: The chassis is 8U in height and ships with an X462 rack rail kit.
