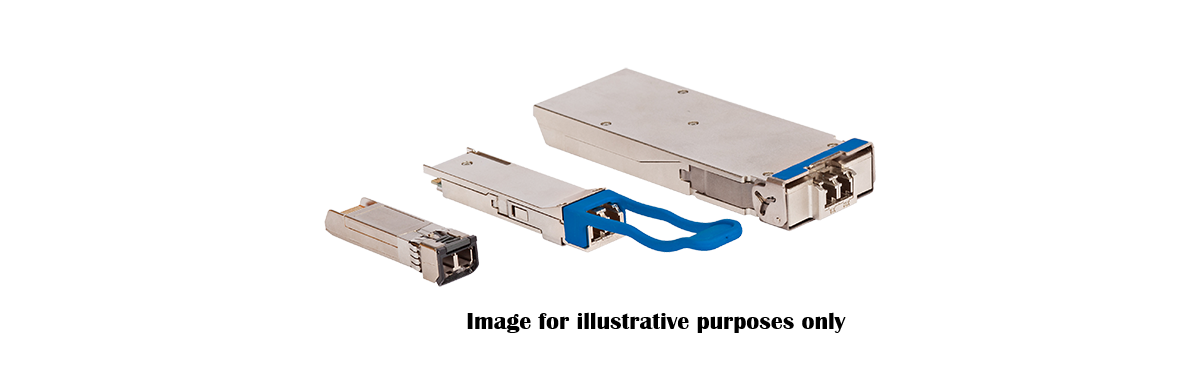

Arista SFP-10G-ERLBD-D | 10G BiDi SFP+ Transceiver, Downlink, 30km SMF

Authorised Arista Partner

SKU:SFP-10G-ERLBD-D

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista SFP-10G-ERLBD-D is a 10GBASE-ERLBD bidirectional SFP+ transceiver for the downlink side of a 10G BiDi link, carrying 10GbE up to 30km over a single strand of single-mode fibre with a simplex LC connector. It suits long-reach campus, metro and data centre interconnects where fibre strands are limited, as bidirectional operation halves fibre usage compared with duplex optics.

This downlink module transmits at 1330 nm and receives at 1270 nm, so it must be paired with an SFP-10G-ERLBD-U uplink module at the far end of the link. The hot-pluggable SFP+ form factor installs into compatible Arista switch ports without powering down the system.

Features

- Up to 30km link length over a single strand of single-mode fibre
- Bidirectional (BiDi) operation halves fibre usage versus duplex optics
- Must be paired with an SFP-10G-ERLBD-U uplink module at the far end
- Hot-pluggable SFP+ form factor for Arista switches

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 10GBASE-ERLBD (10G BiDi) SFP+ form factor
- Downlink (D) module, pairs with SFP-10G-ERLBD-U
- Reach: up to 30km over a single strand of SMF (G.652)
- Connector: LC simplex
- Wavelengths: 1270 / 1330 nm (U/D pair)
- Tx power: 0 to 5.0 dBm
- Rx power: 0 to -15 dBm
- Maximum power consumption: 1.5 W
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 10,000 ft

FAQs

Q: What is the difference between the SFP-10G-ERLBD-D and the SFP-10G-ERLBD-U?
A: They are the two halves of a BiDi pair. The -D downlink module uses a different transmit wavelength to the -U uplink module, so one of each is required to form a working link over a single fibre strand.

Q: What fibre type and connector does this transceiver use?
A: It uses single-mode fibre (G.652) with a simplex LC connector, carrying traffic in both directions over one strand.

Q: What is the maximum reach?
A: Up to 30km over single-mode fibre.

Q: Can I use two SFP-10G-ERLBD-D modules at both ends of a link?
A: No. A BiDi link needs one downlink (D) module and one uplink (U) module so the transmit and receive wavelengths match at each end.

Q: What are the transmit and receive wavelengths?
A: The ERLBD-U/D pair operates at 1270 nm and 1330 nm, with the two ends using opposite wavelengths for transmit and receive.

Q: How much power does the module draw?
A: Maximum power consumption is 1.5 W, with an operating case temperature range of 0 to 70 C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
