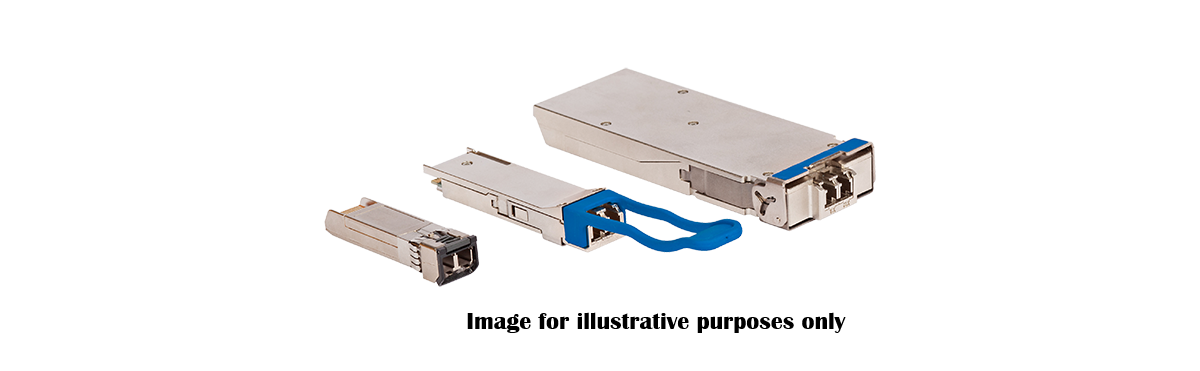

Arista QSFP-100G-SWDM4 | 100G QSFP28 SWDM4 Transceiver, 70m OM3 / 100m OM4, LC

Authorised Arista Partner

SKU:QSFP-100G-SWDM4

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The QSFP-100G-SWDM4 is a 100GBASE-SWDM4 QSFP28 optical transceiver for 100G Ethernet over duplex multimode fibre. It uses an LC duplex connector and reaches up to 70m on OM3 or 100m on OM4, so existing duplex multimode cabling can be reused for 100G links without moving to parallel MPO fibre.

Shortwave wavelength division multiplexing combines four wavelengths in the 850 nm to 880 nm region onto a single fibre pair. The module follows the 100G SWDM4 Alliance MSA, QSFP28 SFF-8449 and SFF-8636, and IEEE 802.3, with a maximum power draw of 3.5 W for high-density 100G switch ports.

Features

- Duplex multimode fibre support allows reuse of existing LC duplex OM3/OM4 cabling
- Compliant with the 100G SWDM4 Alliance MSA and IEEE 802.3
- Low power consumption of 3.5 W maximum
- QSFP28 form factor for high-density 100G ports

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PHY type: 100GBASE-SWDM4
- Form factor: QSFP28
- Connector: LC duplex
- Wavelengths: 850 / 880 nm (SWDM)
- Fibre type: OM3 / OM4 multimode, 50.0 um core
- Maximum reach: 70m (OM3) / 100m (OM4)
- Modal bandwidth: 2000 MHzkm (OM3) / 4700 MHzkm (OM4)
- Tx power: -7.5 to +3.4 dBm per lane
- Rx power: -9.3 to +3.4 dBm per lane
- Maximum power consumption: 3.5 W
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Standards: 100G SWDM4 Alliance MSA, QSFP28 SFF-8449 and SFF-8636, IEEE 802.3

FAQs

Q: What fibre does the QSFP-100G-SWDM4 require?
A: It runs over duplex multimode fibre with LC connectors. Reach is up to 70m on OM3 and up to 100m on OM4.

Q: Can I reuse my existing duplex LC multimode cabling?
A: Yes. The module uses a standard LC duplex connection, so it can run over existing duplex OM3 or OM4 cabling within the stated reach limits.

Q: How does SWDM4 differ from SR4 optics?
A: SWDM4 multiplexes four wavelengths onto one fibre pair using an LC duplex connector, whereas SR4 optics use a parallel MPO connector with multiple fibres.

Q: What is the power consumption of this transceiver?
A: Maximum power consumption is 3.5 W.

Q: What operating temperature range is supported?
A: The module supports an operating case temperature of 0 to 70 C.

Q: Which standards does this module comply with?
A: It complies with the 100G SWDM4 Alliance MSA, QSFP28 SFF-8449 and SFF-8636, and IEEE 802.3.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
