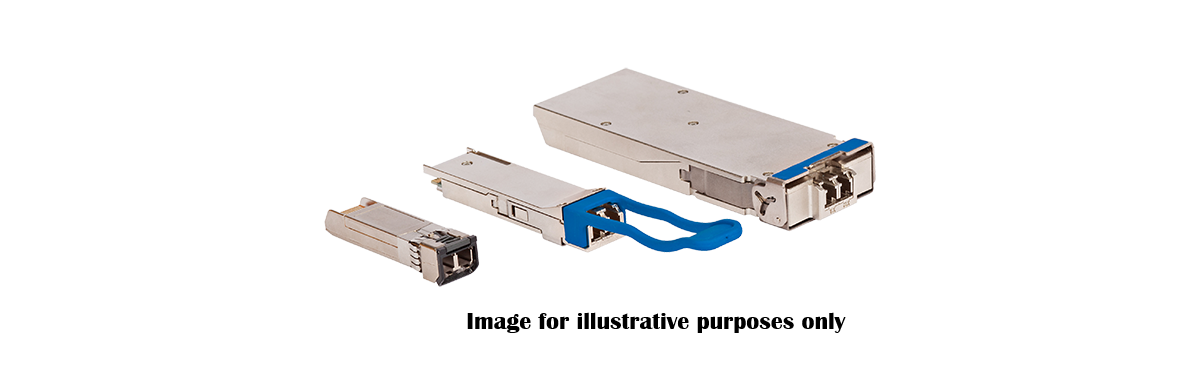

Arista QSFP-100G-PSM4 | 100G QSFP28 PSM4 Transceiver, MPO-12 APC, 500m SMF

Authorised Arista Partner

SKU:QSFP-100G-PSM4

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista QSFP-100G-PSM4 is a 100GBASE-PSM4 QSFP28 transceiver with an MPO-12 APC connector, built for 100G links of up to 500m over parallel single-mode fibre. It operates at 1310 nm and supports dual-rate 100G/40G operation, making it a practical choice for data centre interconnects and leaf-spine uplinks where parallel fibre is already deployed.

The module follows the 100G PSM4 MSA and IEEE 802.3 standards, with a maximum power consumption of 3.5 W. Shorter links may require optical attenuation to protect the receiver, so confirm the link budget when planning deployments. It is designed for use in compatible Arista QSFP28 ports.

Features

- Dual-rate 100G/40G operation
- Reach of up to 500m over parallel single-mode fibre
- MPO-12 APC connector for parallel fibre cabling
- Compliant with the 100G PSM4 MSA and IEEE 802.3
- Low power consumption of 3.5 W maximum
- Optical attenuation may be required on shorter links to protect the receiver

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PHY type: 100GBASE-PSM4
- Form factor: QSFP28
- Connector: MPO-12 APC
- Wavelength: 1310 nm
- Fibre type: parallel single-mode (G.652)
- Maximum reach: 500m
- Data rate: 100G/40G dual rate
- Tx power: -9.4 to +2.0 dBm per lane
- Rx power: -12.6 to +2.0 dBm per lane
- Maximum power consumption: 3.5 W
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 10,000 ft
- Standards: IEEE 802.3, 100G PSM4 MSA, SFF-8449, SFF-8636, GR-20-CORE, GR-326-CORE, GR-1435-CORE

FAQs

Q: What fibre does the QSFP-100G-PSM4 require?
A: It uses parallel single-mode fibre (G.652) terminated with an MPO-12 APC connector, with a maximum reach of 500m.

Q: Does this transceiver support 40G as well as 100G?
A: Yes. It supports dual-rate 100G/40G operation.

Q: Is it compatible with duplex LC fibre?
A: No. It uses an MPO-12 APC connector for parallel fibre, so duplex LC cabling is not suitable. Use an MPO-12 APC cabling plant.

Q: Do I need optical attenuation on short links?
A: Attenuation may be required on shorter links to protect the receiver. Check the link budget against the Rx power range of -12.6 to +2.0 dBm per lane.

Q: What standards does it comply with?
A: It complies with IEEE 802.3, the 100G PSM4 MSA and the QSFP28 SFF-8449 and SFF-8636 specifications.

Q: What is the maximum power draw?
A: The maximum power consumption is 3.5 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
