Arista

Arista DCS-7808R3-BND-S2 | 7808R3 Modular Chassis Switch, 8x3kW AC PS, 6xFM-R3, Dual Sup

Arista DCS-7808R3-BND-S2 | 7808R3 Modular Chassis Switch, 8x3kW AC PS, 6xFM-R3, Dual Sup

Authorised Arista Partner

SKU:DCS-7808R3-BND-S2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

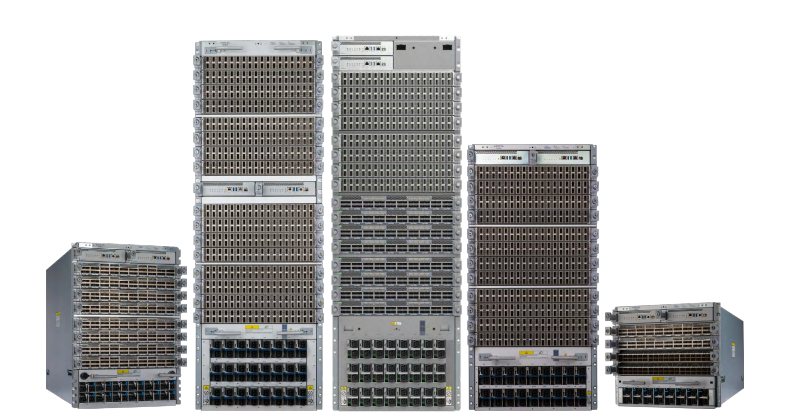

The Arista DCS-7808R3-BND-S2 is an 8-slot 7808R3 modular chassis switch bundle from the Arista 7800R3 Series of data centre switch routers. It ships with 8x 3kW D1 AC power supplies, 6x FM-R3 fabric modules, 2x 7800-Sup1A supervisors for dual supervisor redundancy, and an extended rack kit. Line cards are ordered separately, so you can size port density to the deployment, up to 288x 400G or 1152x 100G ports at maximum density.

The 16 RU chassis delivers up to 230 Tbps and 48 Bpps of throughput and runs Arista EOS. Front-to-rear airflow, internally redundant AC power supplies and graceful degradation on fabric module failure suit spine, core and data centre interconnect roles. It supports 7800R3, R3A and R3AK line cards, including 36x OSFP and 36x QSFP-DD options.

Features

- Modular chassis with dual supervisor redundancy
- Front-to-rear airflow with internally redundant AC power supplies
- Graceful degradation on fabric module failure
- Supports migration to higher performance and density line cards without loss of functionality or redundancy
- Runs Arista EOS (Extensible Operating System)
- Ships with SAF-D-GRID to C20 power cables (4m)
- Compatible with 7800R3, R3A and R3AK line cards

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Chassis: DCS-7808, 16 RU
- 8 line card slots
- 2 supervisor slots, 2x 7800-Sup1A included
- 6 fabric module slots, 6x FM-R3 included
- 8x 3kW D1 AC power supplies (PWR-D1-3041-AC) included, 12 power supply slots (36 kW max power budget)
- Throughput: up to 230 Tbps / 48 Bpps
- Maximum density: 288x 400G, 1152x 100G or 2304x 50G ports
- Maximum power consumption: 19,698 W
- Airflow: 1057.1 cfm typical, 2358 cfm maximum, front-to-rear
- Power supply input: 2x 200-240VAC, 16A, 50/60Hz, 94.5% Platinum efficiency
- Dimensions (H x W x D): 70.3 x 44.1 x 94 cm
- Weight: 101 kg chassis only, 325 kg full system
- Includes extended rack kit

FAQs

Q: Are line cards included with the DCS-7808R3-BND-S2?
A: No. The bundle includes the 7808 chassis, 8x 3kW AC power supplies, 6x FM-R3 fabric modules, 2x 7800-Sup1A supervisors and an extended rack kit. Line cards are ordered separately.

Q: Which line cards are compatible with this chassis?
A: It supports 7800R3, R3A and R3AK line cards, for example 36x OSFP or 36x QSFP-DD models.

Q: Does this bundle provide supervisor redundancy?
A: Yes. Two 7800-Sup1A supervisors are included, filling both supervisor slots for dual supervisor redundancy.

Q: What power input do the included power supplies need?
A: Each PWR-D1-3041-AC supply delivers 3000 W from 2x 200-240VAC inputs at 16A, 50/60Hz, using SAF-D-GRID connectors, with 94.5% Platinum efficiency.

Q: How many power supplies can the chassis hold?
A: The chassis has 12 power supply slots for up to a 36 kW power budget. This bundle includes 8 of them.

Q: What happens if a fabric module fails?
A: The 7808 supports graceful degradation on fabric module failure, so the system continues to operate with reduced fabric capacity.
