Arista DCS-7808R3-BND-DC-S2 | 7808R3 8-Slot Modular Chassis, DC PSU, 2x Sup1A, 6x FM-R3
Arista DCS-7808R3-BND-DC-S2 | 7808R3 8-Slot Modular Chassis, DC PSU, 2x Sup1A, 6x FM-R3
Authorised Arista Partner
SKU:DCS-7808R3-BND-DC-S2
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

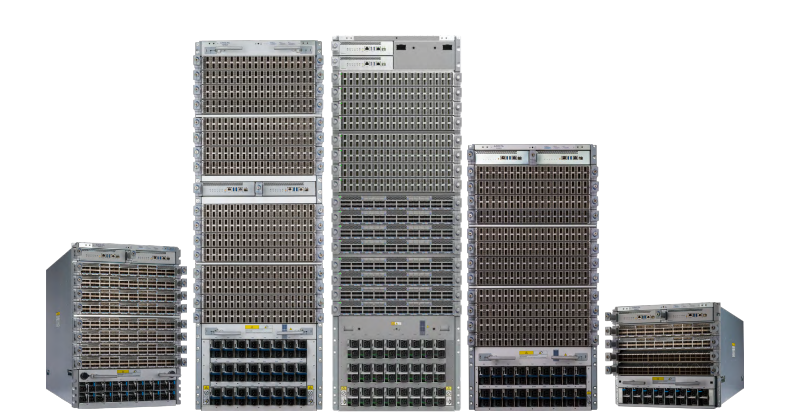

The Arista 7808R3 8-slot modular chassis bundle is built for large data centre, AI cluster and service provider networks, scaling to 230 Tbps and 48 Bpps in a 16 RU chassis. This DC bundle includes eight 3 kW PWR-D2-3041-DC power supplies, two DCS-7800-Sup1A supervisors, six DCS-7808R3-FM fabric modules and the Extended Rack Kit, so the chassis is ready for line cards and deployment.
The 7808R3 supports up to 288 x 400G, 1152 x 100G or 2304 x 50G ports. It uses a distributed virtual output queue architecture with a lossless fabric and deep buffers, and runs Arista EOS with carrier-grade routing features including EVPN, segment routing and IEEE 1588 PTP. Power redundancy, supervisor redundancy and fabric module redundancy support high-availability designs.
Features
Features
- Up to 230 Tbps in the 7808 chassis, with up to 460 Tbps across the 7800R3 family
- Distributed virtual output queue architecture with a lossless fabric that eliminates head-of-line blocking
- Deep buffering to absorb in-cast, bursts and speed mismatches
- Redundant hot-swappable DC power supplies with 1+1 grid redundancy, configurable up to N+N
- 1+1 supervisor redundancy and fabric module redundancy
- Multi-core x86 control plane CPU with 64 GB DRAM
- Arista EOS with Linux shell access, extensible with bash, python and C++
- MACsec, IPsec and VXLANsec encryption support
- Carrier-grade routing including EVPN, segment routing and IEEE 1588 PTP timing
- LANZ and DANZ for latency and congestion visibility
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 8 line card slots
- 2 supervisor slots, 2x DCS-7800-Sup1A included
- 6 fabric module slots, 6x DCS-7808R3-FM included
- 8x 3000W PWR-D2-3041-DC power supplies included, 12 PSU slots, 36 kW max power budget
- Up to 230 Tbps / 48 Bpps maximum throughput
- Up to 288 x 400G, 1152 x 100G or 2304 x 50G maximum density
- 16 RU chassis, front-to-rear airflow
- Supervisor: 64 GB DRAM, 4 GB flash, 1x RJ-45 and 1x SFP 1G management ports, 2x USB 2.0, 1x RS-232 serial
- PSU input: 2x -48 to -60 VDC, 70A max, 94% efficiency
- Maximum power consumption: 19,698 W
- Dimensions (H x W x D): 70.3 x 44.1 x 94 cm
- Weight: 101 kg chassis only, 325 kg full system
- Operating temperature: 0 to 40 C
- Bundle includes Extended Rack Kit
FAQs
Q: What is included in the DCS-7808R3-BND-DC-S2 bundle?
A: The bundle includes the 7808 chassis, eight 3 kW PWR-D2-3041-DC power supplies, six DCS-7808R3-FM fabric modules, two DCS-7800-Sup1A supervisors and the Extended Rack Kit. Line cards are ordered separately.
Q: Is this chassis AC or DC powered?
A: This is the DC bundle. The included PWR-D2-3041-DC power supplies take a -48 to -60 VDC input and deliver 3000 W each.
Q: How many line cards does the 7808R3 support?
A: The chassis has 8 line card slots, supporting up to 288 x 400G, 1152 x 100G or 2304 x 50G ports at maximum density.
Q: Does the chassis support supervisor and fabric redundancy?
A: Yes. It has two supervisor slots for 1+1 redundancy, and fabric modules support graceful degradation, with six fabric modules per chassis required.
Q: How much power can the chassis draw?
A: The chassis has 12 power supply slots with a 36 kW maximum power budget, and a maximum system power consumption of 19,698 W. Eight 3 kW supplies are included.
Q: What are the physical requirements for installation?
A: It is a 16 RU chassis measuring 70.3 x 44.1 x 94 cm with front-to-rear airflow. The chassis alone weighs 101 kg and a fully loaded system weighs up to 325 kg, so plan rack and floor loading accordingly.
