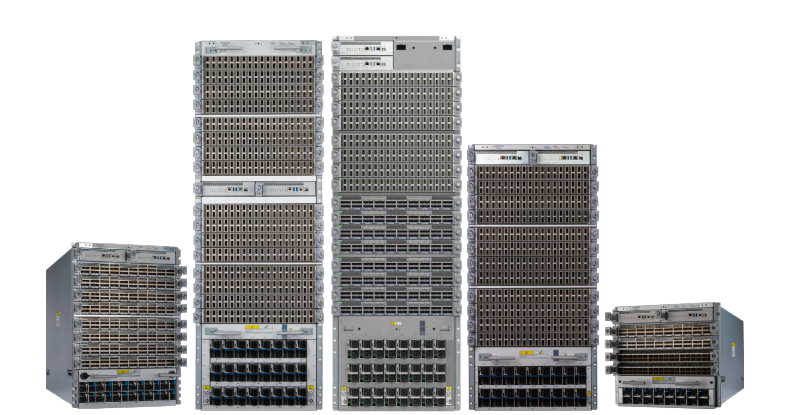

Arista DCS-7804R3-BND-S2 | 7800R3 4-Slot Modular Chassis Bundle, Dual Sup1A, 6x 3kW PSU

Arista DCS-7804R3-BND-S2 | 7800R3 4-Slot Modular Chassis Bundle, Dual Sup1A, 6x 3kW PSU

Authorised Arista Partner

SKU:DCS-7804R3-BND-S2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7804R3 chassis bundle is a 4-slot modular chassis for scalable data centre and core routing, supplied as a complete dual-supervisor configuration. This variant includes two 7800-Sup1A supervisors, six 3kW AC power supplies, six FM-R3 fabric modules and an extended rack kit, giving redundant control-plane and power from day one.

The 7800R3 platform is built on a flexible, upgradeable modular architecture with deep packet buffers and advanced traffic engineering and telemetry. Line cards are ordered separately, allowing the chassis to be configured with the 10/25/40/100/400GbE port mix your fabric requires. It differs from the single-supervisor DCS-7804R3-BND bundle by adding a second Sup1A supervisor.

Features

- Flexible, scalable and upgradeable 7800R3 modular architecture
- Redundant supervisors and 3kW AC power supplies
- Advanced traffic engineering and telemetry
- Support for 10/25/40/100/400GbE options via line cards
- Comprehensive Layer 2 and Layer 3 feature set
- Deep packet buffer memory for large-scale data centre fabrics

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Chassis: DCS-7804 with 4 line card slots, 2 supervisor slots and 6 fabric module slots
- Supervisors: 2x 7800-Sup1A (dual-supervisor configuration)
- Power: 6x 3kW D1 AC power supplies
- Fabric: 6x DCS-7804R3-FM fabric modules
- Fabric module dimensions (H x W x D): 6.8 x 40.6 x 60.0 cm, weight 3.6 kg
- Includes extended rack kit
- Line cards ordered separately (DCS-7800R3-LC series)
- Supports 10/25/40/100/400GbE via line cards

FAQs

Q: What is included in the DCS-7804R3-BND-S2 bundle?
A: The bundle includes the 7804 chassis, two 7800-Sup1A supervisors, six 3kW AC power supplies, six DCS-7804R3-FM fabric modules and an extended rack kit.

Q: How does this differ from the DCS-7804R3-BND?
A: This -S2 variant ships with two Sup1A supervisors for redundancy, whereas the DCS-7804R3-BND includes a single Sup1A supervisor.

Q: Are line cards included?
A: No. Line cards such as the DCS-7800R3-LC series are ordered separately, so you can choose the port speeds and densities you need.

Q: How many line cards does the chassis support?
A: The 7804 chassis provides four line card slots, two supervisor slots and six fabric module slots.

Q: Which port speeds are supported?
A: Port speeds depend on the line cards installed, with 10/25/40/100/400GbE options available across the 7800R3 family.

Q: Does this bundle provide power redundancy?
A: Yes. The bundle includes six 3kW AC power supplies alongside the dual supervisors for a redundant configuration.
