Arista DCS-7804R3-BND | 7804R3 10RU Modular Chassis Bundle, Sup1A, 6x3kW PS, 6x FM-R3
Arista DCS-7804R3-BND | 7804R3 10RU Modular Chassis Bundle, Sup1A, 6x3kW PS, 6x FM-R3
Authorised Arista Partner
SKU:DCS-7804R3-BND
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

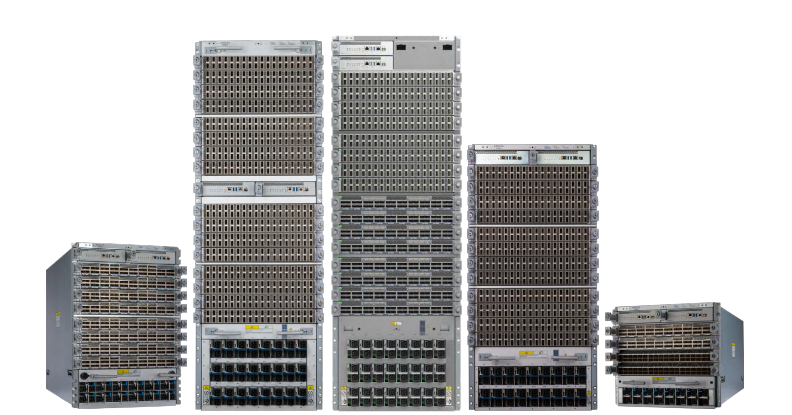

The Arista DCS-7804R3-BND is a 7804R3 modular data centre switch router chassis bundle in a 10RU, 4-slot format, built for high-density spine and core deployments. This bundle includes one 7800-Sup1A supervisor, six 3kW AC power supplies (D1) and six FM-R3 fabric modules, giving you a ready-to-populate chassis with wire-speed, non-blocking R3 series performance. Line cards are ordered separately.
The 7800R3 series supports 100G, 200G and 400G port modes with deep packet buffers of up to 24 GB per line card, and delivers up to 14.4 Tbps per slot. Grid-redundant power and a free second supervisor slot allow supervisor redundancy, while the included extended rack kit simplifies installation.
Features
Features
- Wire-speed, non-blocking R3 series performance
- 100G, 200G and 400G port modes, 800G ready
- Deep packet buffers of up to 24 GB per line card
- Grid-redundant power supplies
- Redundant supervisor capability with a free second supervisor slot
- Series scales up to 576 wire-speed 400G ports across the 16-slot chassis
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Chassis: 7804, 10 RU, 4 line card slots, 2 supervisor slots, 6 fabric module slots
- Supervisor: 1x 7800-Sup1A included, second supervisor slot free
- Fabric modules: 6x FM-R3 included
- Power supplies: 6x 3kW D1 AC included, 8 PS slots, 24 kW maximum power budget
- Performance: up to 14.4 Tbps per slot, 100G/200G/400G modes
- Packet buffer: up to 24 GB per line card
- Extended rack kit included
- Dimensions: 17.2 x 17.4 x 37.0 in (43.6 x 44.1 x 94 cm)
- Weight: 163 lbs (74 kg)
FAQs
Q: What is included in the DCS-7804R3-BND bundle?
A: The bundle includes the 7804 chassis, one 7800-Sup1A supervisor, six 3kW D1 AC power supplies, six FM-R3 fabric modules and an extended rack kit.
Q: Are line cards included?
A: No. Line cards are ordered separately and installed into the four line card slots.
Q: Does this chassis support supervisor redundancy?
A: Yes. The chassis has two supervisor slots. The bundle includes one Sup1A supervisor, leaving the second slot free for a redundant supervisor.
Q: How many power supplies can the chassis hold?
A: The chassis has 8 power supply slots. This bundle populates six of them with 3kW D1 AC power supplies, with a maximum chassis power budget of 24 kW.
Q: What port speeds does the 7800R3 series support?
A: The 7800R3 series supports 100G, 200G and 400G modes and is 800G ready, with up to 14.4 Tbps per slot.
Q: How much rack space does the 7804R3 require?
A: The chassis is 10 RU and an extended rack kit is included. Allow for its depth of 37.0 in (94 cm) and weight of 163 lbs (74 kg) when planning installation.
