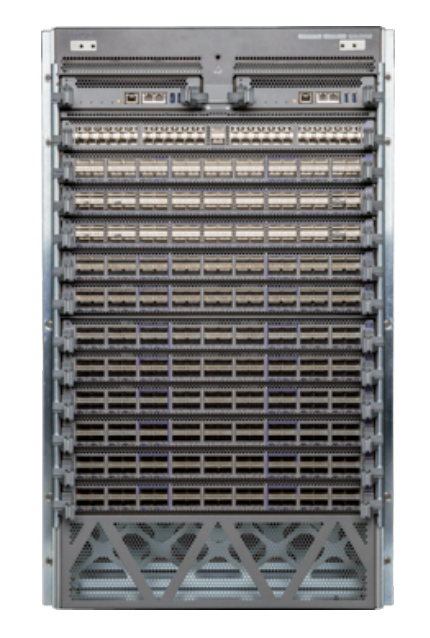

Arista DCS-7512R3-BND-D | 7500R3 7512 Modular Chassis Switch, 8x3kW AC PS, 6xFM-R, Sup2-D

Arista DCS-7512R3-BND-D | 7500R3 7512 Modular Chassis Switch, 8x3kW AC PS, 6xFM-R, Sup2-D

Authorised Arista Partner

SKU:DCS-7512R3-BND-D

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7500R3 Series 7512 modular chassis switch bundle is an 18RU data centre switch router with 12 line card slots, built for high-density spine and core deployments. This AC bundle ships with the 7512N chassis, eight 3kW power supplies, six R3 fabric modules (6xFM-R) and one Supervisor-2 module with SSD (Sup2-D), delivering 230 Tbps of system throughput and 48 Bpps.

The chassis supports up to 288 x 400G, 432 x 100G, or 2304 x 10G/25G/50G ports with breakout, depending on the line cards fitted. Line cards are ordered separately. It runs Arista EOS with CloudVision, VXLAN, LANZ microburst detection and eAPI extensibility, and uses an N+N grid redundant power system with 1+1 supervisor redundancy for resilient operation.

Features

- N+N grid redundant power, 1+1 supervisor redundancy, fabric module redundancy and N+1 fan module redundancy
- Front-to-rear airflow for efficient data centre cooling
- Virtual Output Queues per port to eliminate head-of-line blocking
- Algorithmic ACLs supporting 100K rules
- Arista EOS with single binary image, Linux shell access, eAPI, Python and OpenConfig extensibility
- CloudVision, VXLAN, LANZ microburst detection, Zero Touch Provisioning, sFlow and IEEE 1588 PTP
- Inband Network Telemetry support
- Supervisor SSD for logging and data capture included with the Sup2-D module

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Chassis: DCS-7512N, 18RU, front-to-rear airflow
- 12 line card slots, 2 supervisor slots, 6 fabric module slots, 12 power supply slots
- Bundle includes 8 x 3kW AC power supplies, 6 x FM-R fabric modules and 1 x Supervisor-2 with SSD (Sup2-D)
- System throughput: 230 Tbps / 48 Bpps
- Maximum density: 288 x 400G, 432 x 100G, 432 x 40G, or 2304 x 10G/25G/50G ports
- Latency: under 4 microseconds (64 bytes)
- Supervisor: 1.9GHz multi-core x86 64-bit, 32GB DRAM, 4GB flash, 120GB SSD
- Supervisor ports: 1 x RS-232 serial (RJ-45), 2 x 100/1000 management (RJ-45), 2 x USB 2.0
- Power supply: 3000W, 200-240V AC, 50-60 Hz, 96% Titanium efficiency
- Dimensions (H x W x D): 80.1 x 44.1 x 84.8 cm
- Weight: 84 kg chassis only, 300 kg fully populated
- Operating temperature: 0 to 40 C

FAQs

Q: What is included in the DCS-7512R3-BND-D bundle?
A: The bundle includes the 7512N chassis, eight 3kW AC power supplies, six R3 fabric modules (6xFM-R) and one Supervisor-2 module with SSD (Sup2-D).

Q: Are line cards included?
A: No. Line cards are ordered separately, which lets you choose the port speeds and density you need across the 12 line card slots.

Q: What is the maximum port density?
A: Up to 288 x 400G, 432 x 100G, or 2304 x 10G/25G/50G ports with breakout, depending on the line cards installed.

Q: What power input do the power supplies need?
A: Each 3kW power supply takes 200-240V AC single phase at 50-60 Hz, with an IEC 60320 C20 inlet, and is rated 96% Titanium efficiency.

Q: What does the Sup2-D supervisor add?
A: Sup2-D is the Supervisor-2 module with a 120GB SSD for logging and data capture, alongside a multi-core x86 1.9GHz CPU, 32GB DRAM and 4GB flash.

Q: What software does this switch run?
A: It runs Arista EOS, a single binary image with Linux shell access, eAPI, Python and OpenConfig extensibility, and supports CloudVision, VXLAN and LANZ.
