Arista DCS-7508R3-BND-DC-D | 7500R3 Modular Switch Chassis, DC Power, 6x DC PS, 6x FM-R, Sup2-D

Arista DCS-7508R3-BND-DC-D | 7500R3 Modular Switch Chassis, DC Power, 6x DC PS, 6x FM-R, Sup2-D

Authorised Arista Partner

SKU:DCS-7508R3-BND-DC-D

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

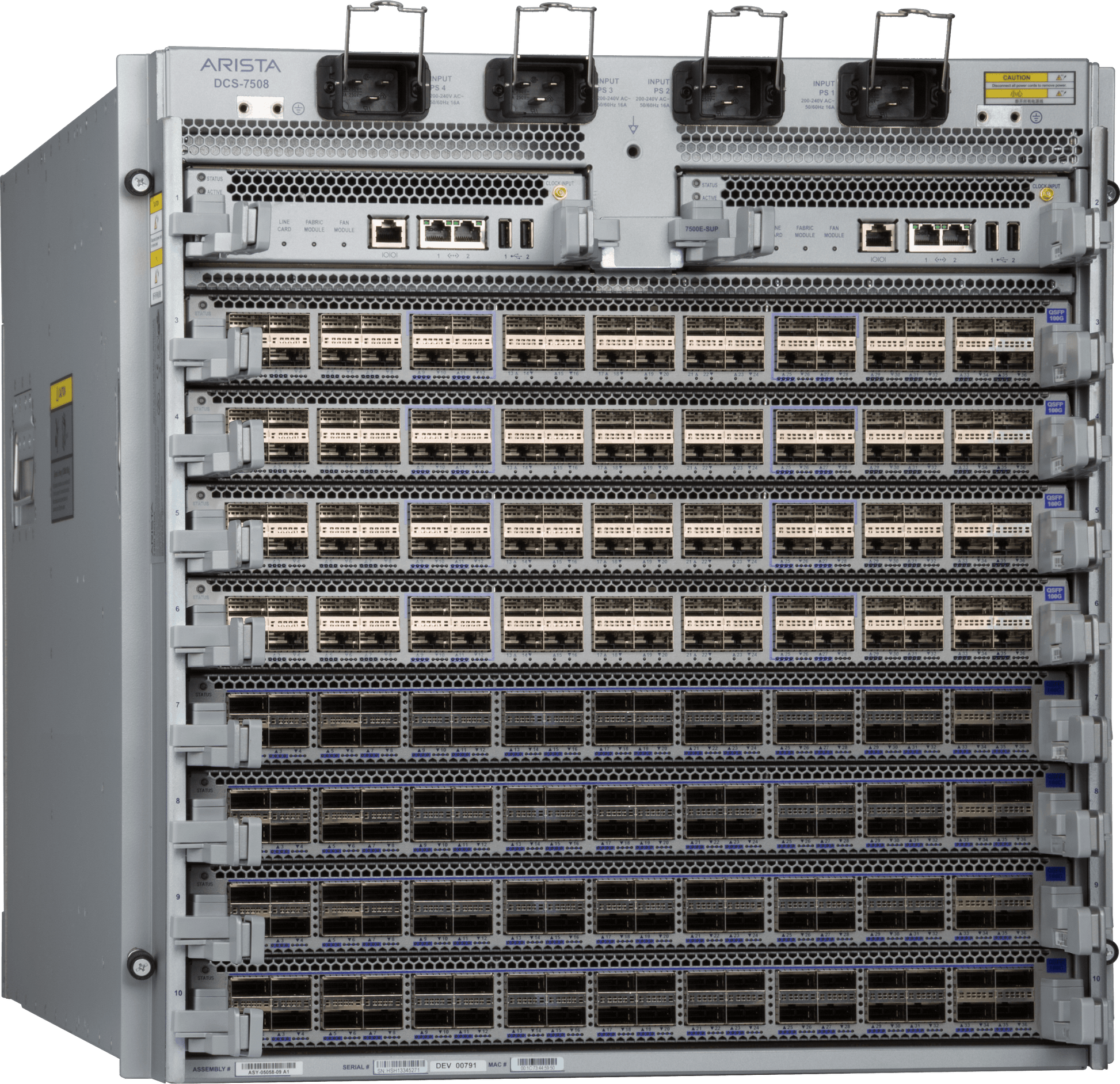

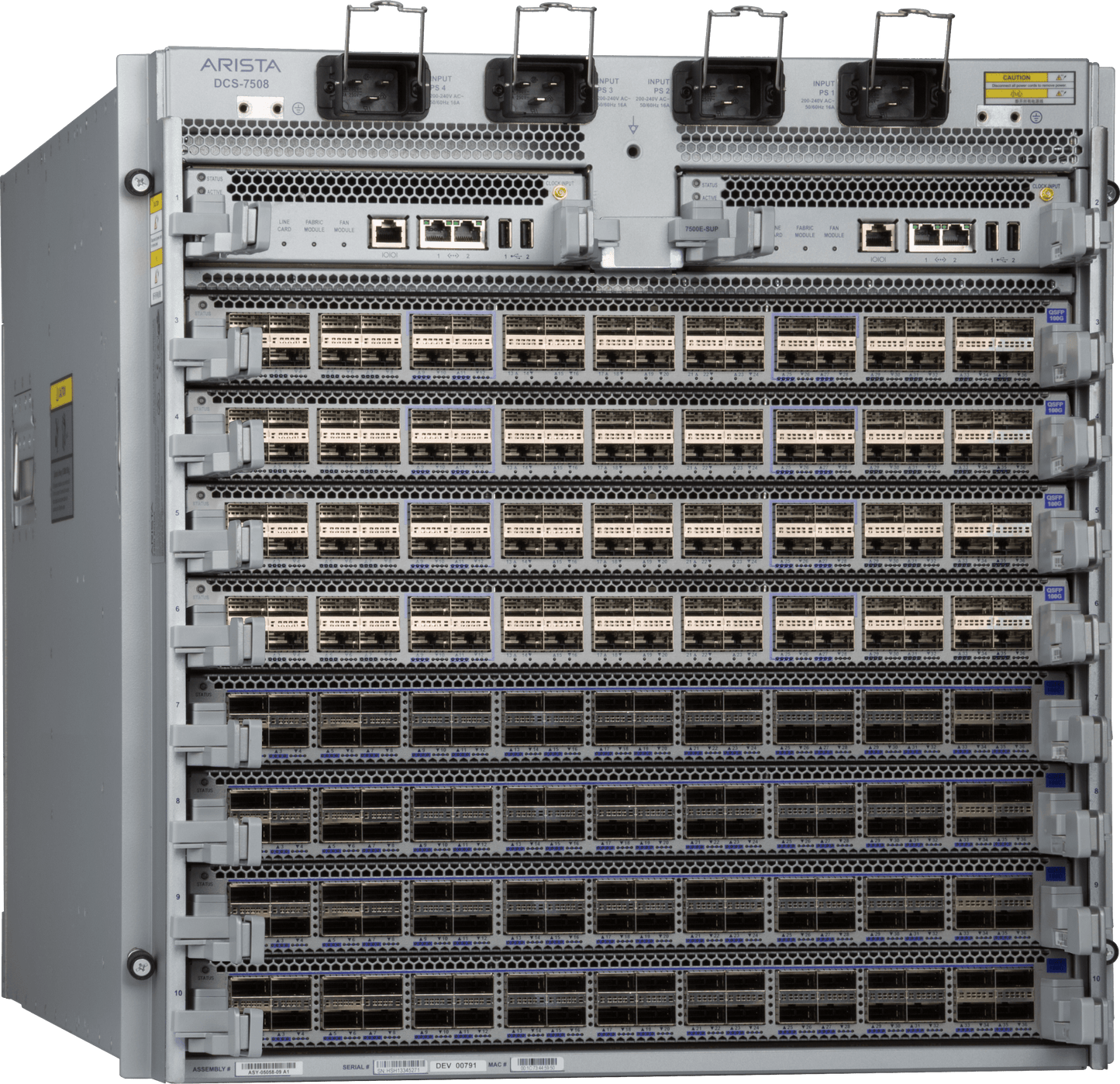

The Arista DCS-7508R3-BND-DC-D is an 8-slot, 13 RU 7500R3 series modular switch chassis bundle with DC power, built for data centre spine and core router deployments. It ships with the 7508N chassis, six 3000W -48V DC power supplies, six R3 fabric modules (FM-R) and one Supervisor-2-D module, delivering up to 153 Tbps and 32 Bpps of throughput once populated with line cards.

The chassis provides two supervisor slots, eight line card slots and six fabric module slots, with support for up to 192 x 400G or 768 x 100G ports using compatible 7500R3 and 7500R3K line cards (sold separately). Redundant supervisor, DC power, fabric and cooling modules are hot-swappable, and the platform runs Arista EOS with CloudVision, EVPN/VXLAN and deep-buffer VOQ architecture.

Features

- 7500R3 platform with deep buffers and VOQ architecture for lossless, high-density data centre fabrics
- Hot-swappable redundant supervisor, power, fabric and cooling modules
- N+N grid redundant DC power system
- Supports FlexRoute, Accelerated sFlow and Algorithmic ACLs
- Runs Arista EOS with CloudVision, LANZ, ZTP, EVPN/VXLAN and IEEE 1588 PTP
- Compatible with 7500R3 and 7500R3K line cards with 25G, 100G and 400G interfaces

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 8-slot modular chassis, 13 RU (DCS-7508N)
- 2 supervisor slots, 8 line card slots, 6 fabric module slots, 8 power supply slots
- Bundle includes 7508N chassis, 6x DC power supplies, 6x FM-R fabric modules, 1x Sup2-D
- Maximum throughput 153 Tbps / 32 Bpps
- Up to 192 x 400G, 768 x 100G, 288 x 40G, 1536 x 10G/25G/50G ports (line cards sold separately)
- 6x 3000W DC power supplies, -48 to -60V DC input, 90% efficiency
- Supervisor-2-D: 1.9 GHz multi-core x86 64-bit CPU, 32 GB memory, 4 GB flash
- Supervisor ports: 1x RJ-45 RS-232 serial, 2x RJ-45 100/1000 management, 2x USB 2.0
- Maximum power consumption 9,024 W
- Dimensions (HxWxD): 57.8 x 44.1 x 79.5 cm
- Chassis weight 43.1 kg, fully loaded system up to 182 kg
- Operating temperature 0 to 40 C, humidity 5 to 90%
- Front-to-rear airflow, N+N power redundancy

FAQs

Q: What is included in the DCS-7508R3-BND-DC-D bundle?
A: The bundle includes the 7508N chassis, six 3000W -48V DC power supplies, six R3 fabric modules (FM-R) and one Supervisor-2-D module.

Q: Are line cards included?
A: No. Line cards are sold separately. The chassis has eight line card slots and accepts compatible 7500R3 and 7500R3K line cards with 25G, 100G and 400G interfaces.

Q: What power input does this bundle require?
A: It uses DC power supplies with a -48 to -60V DC input, rated at 3000W output each. This bundle is not for AC-fed installations.

Q: How many supervisors does the chassis support?
A: The chassis has two supervisor slots for redundancy. This bundle includes one Supervisor-2-D module.

Q: What is the maximum port density?
A: With compatible line cards fitted, the chassis supports up to 192 x 400G or 768 x 100G ports, and up to 1536 ports at 10G, 25G or 50G.

Q: What software does this switch run?
A: It runs Arista EOS, with support for CloudVision, LANZ, ZTP, EVPN/VXLAN and IEEE 1588 PTP.
