Arista DCS-7508R3-BND-DC | 7508R3 DC Modular Chassis Switch, 6x DC PS, 6x FM-R, Sup2
Arista DCS-7508R3-BND-DC | 7508R3 DC Modular Chassis Switch, 6x DC PS, 6x FM-R, Sup2
Authorised Arista Partner
SKU:DCS-7508R3-BND-DC
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

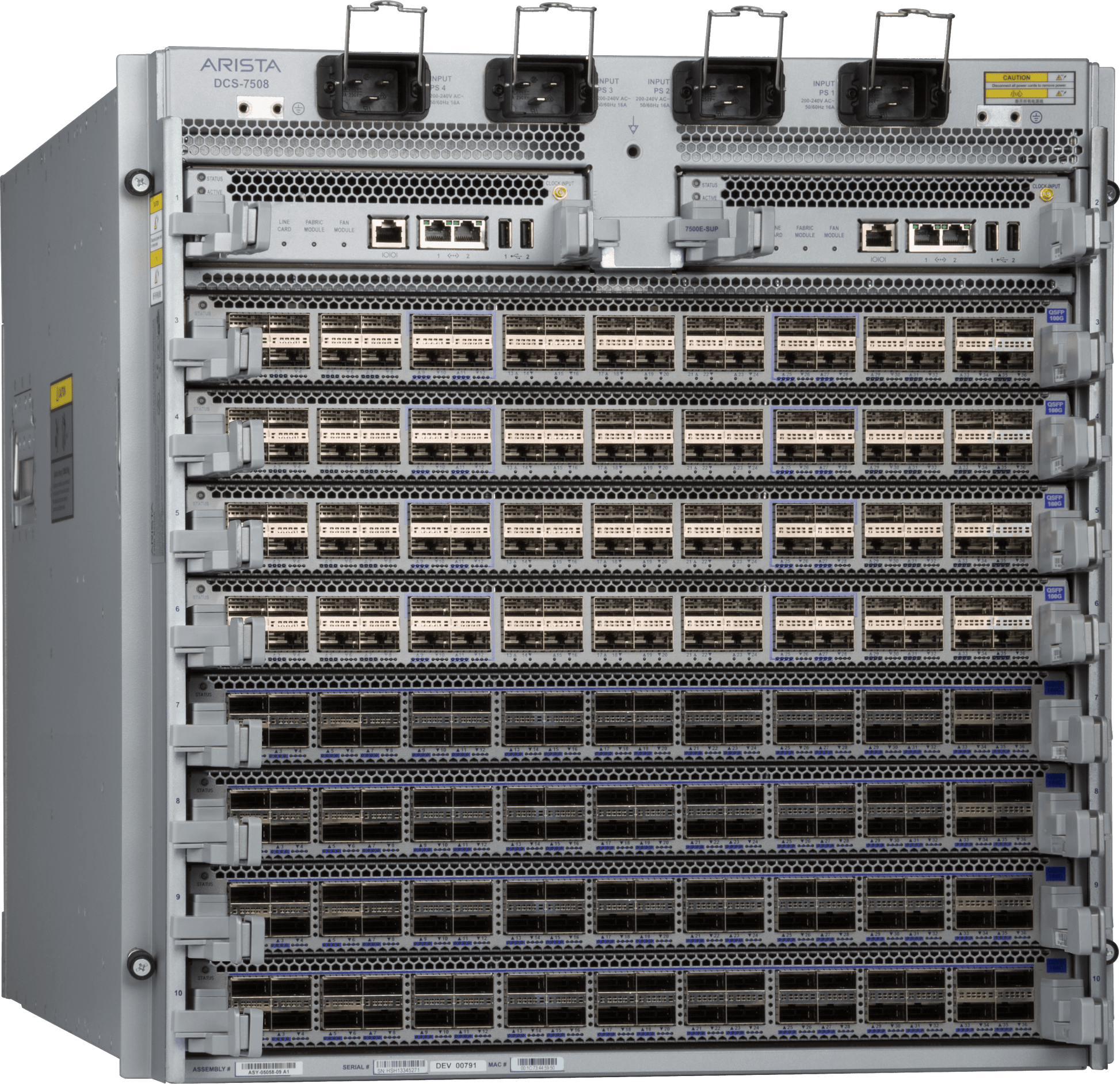

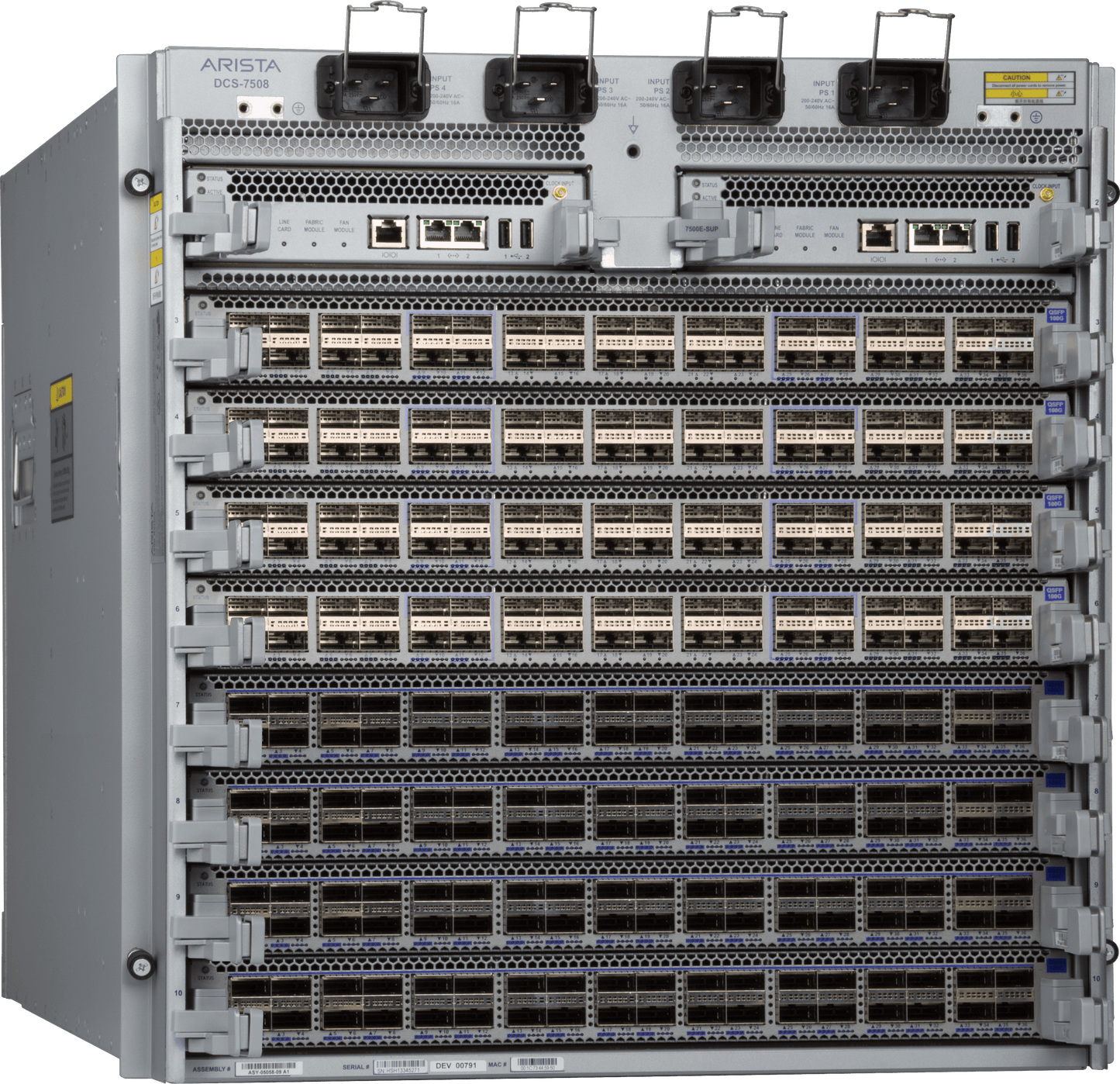

The Arista DCS-7508R3-BND-DC is an 8-slot, 13 RU modular chassis switch bundle from the 7500R3 Series, built for data centre spine and core deployments. It ships with the 7508N chassis, six DC power supplies, six FM-R fabric modules and one standard Supervisor2 (Sup2) module, giving you a complete DC-powered foundation for a high-density 100G/400G spine. Line cards are ordered separately.
The 7500R3 platform delivers up to 230 Tbps of system fabric capacity and up to 48 billion packets per second, with deep packet buffers and Virtual Output Queues for lossless forwarding under congestion. Redundant power supplies, fabric modules and supervisor support high availability, while Arista EOS provides advanced monitoring, virtualisation and open programmability for automation.
Features
Features
- Universal spine platform with 100G/400G line card options
- Deep buffers with Virtual Output Queuing for lossless forwarding under congestion
- Redundant power supplies, supervisor and fabric modules for high availability
- Arista EOS with advanced monitoring, virtualisation and open programmability and automation
- DC-powered bundle suited to telco and DC-fed data centre environments
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 8-slot, 13 RU chassis (7508N), supports up to 8 line cards
- Bundle contents: 7508N chassis, 6x DC power supplies, 6x FM-R fabric modules, 1x Supervisor2 (Sup2)
- DC power supplies use -40 to -72V DC input
- Up to 230 Tbps system fabric capacity (7500R3 Series)
- Up to 48 billion packets per second (7500R3 Series)
- Up to 19.2 Tbps per slot
- Up to 288 wire-speed 400G ports (fully populated with line cards)
- 10G, 25G and 50G mode support
- 16GB deep packet buffer per line card
- Virtual Output Queues (VOQ) per port
FAQs
Q: What is included in the DCS-7508R3-BND-DC bundle?
A: The bundle includes the 7508N chassis, six DC power supplies, six FM-R fabric modules and one standard Supervisor2 (Sup2) module.
Q: Are line cards included?
A: No. Line cards are ordered separately. The chassis has 8 slots and supports up to 8 line cards.
Q: What DC input voltage do the power supplies use?
A: The DC power supplies use a -40 to -72V DC input.
Q: How much switching capacity does the 7500R3 Series offer?
A: The 7500R3 Series delivers up to 230 Tbps of system fabric capacity, up to 48 billion packets per second and up to 19.2 Tbps per slot.
Q: Does this bundle use the Sup2 or Sup2-D supervisor?
A: This bundle includes the standard Supervisor2 (Sup2) module, not the Sup2-D.
Q: What port speeds can the chassis support?
A: Depending on the line cards installed, it supports 10G, 25G, 50G, 100G and 400G ports, up to 288 wire-speed 400G ports when fully populated.
