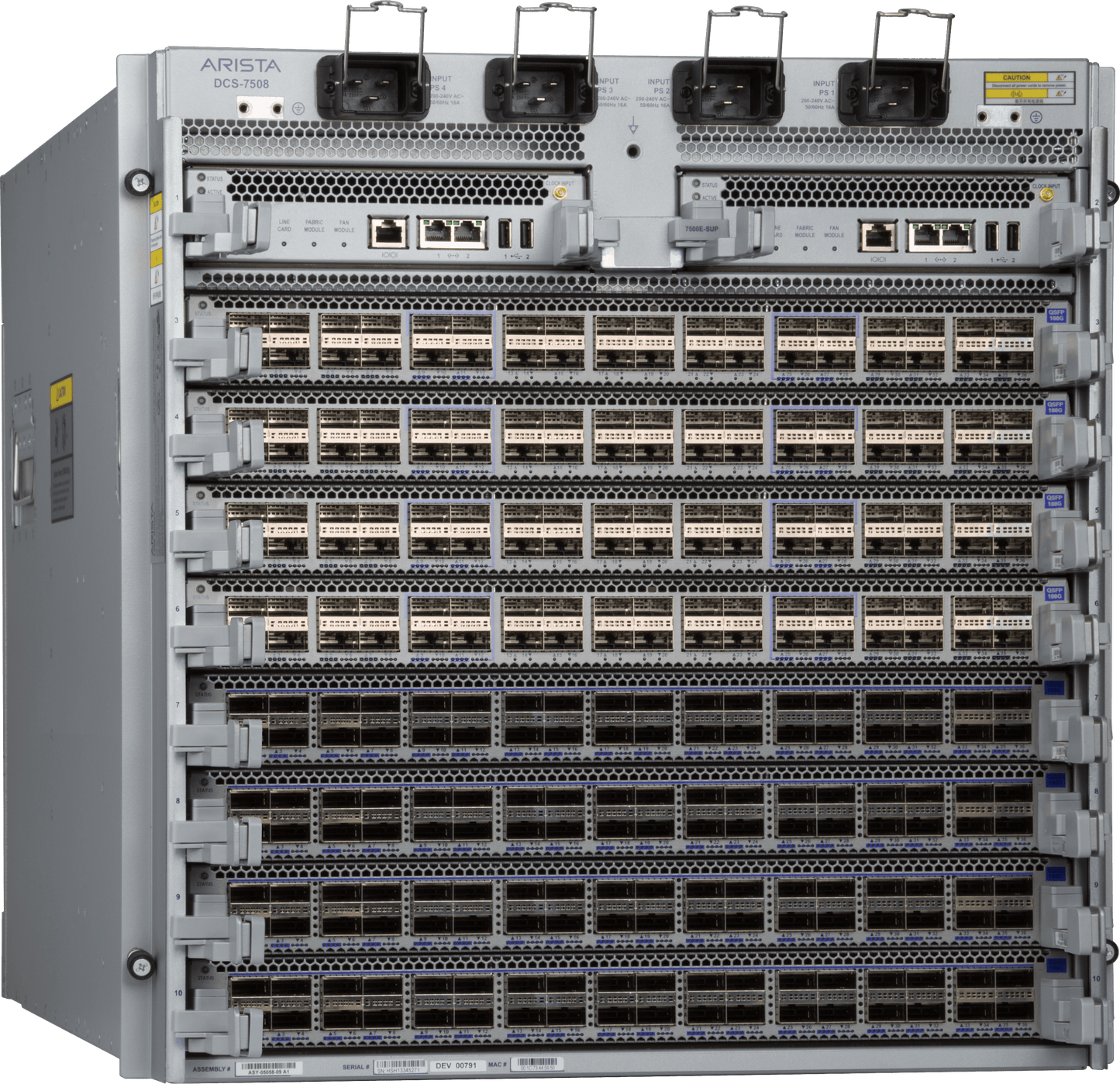

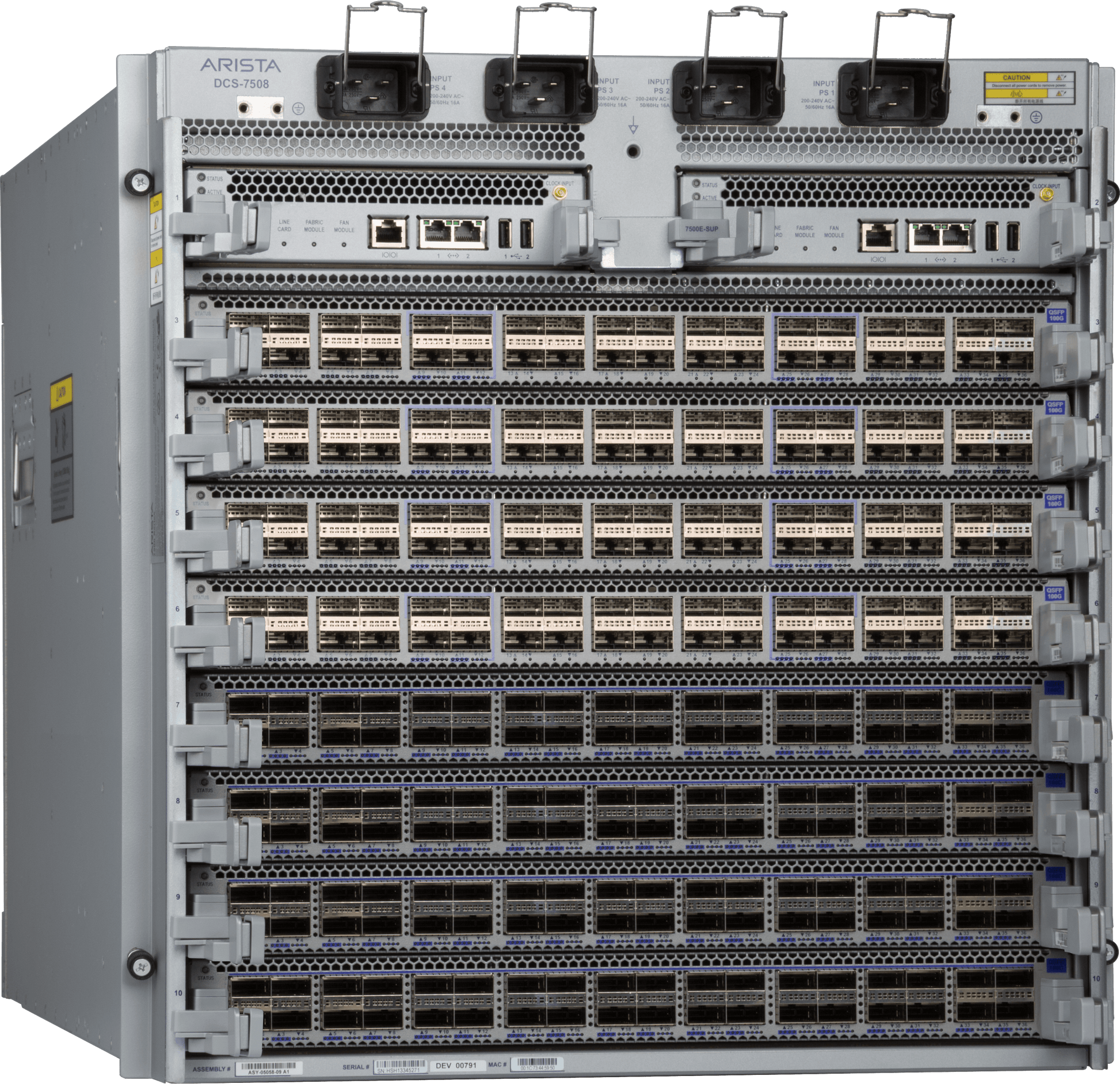

Arista DCS-7508R3-BND-D | 7500R3 7508N 8-Slot Modular Chassis Switch, 6x 3kW AC PSU, Sup2-D

Arista DCS-7508R3-BND-D | 7500R3 7508N 8-Slot Modular Chassis Switch, 6x 3kW AC PSU, Sup2-D

Authorised Arista Partner

SKU:DCS-7508R3-BND-D

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7508R3-BND-D is an 8-slot, 13 RU modular chassis switch bundle from the 7500R3 Series, built for data centre spine, internet peering and data centre interconnect roles. It combines the 7508N chassis with six 3kW AC power supplies, six R3 fabric modules (FM-R) and one Sup2-D supervisor with SSD, and supports up to 192 x 400G or 768 x 100G ports at maximum density with system throughput up to 153 Tbps.

The chassis runs Arista EOS and provides redundant, hot-swappable supervisor, power, fabric and cooling modules. It offers deep packet buffers and large routing tables, with advanced L2/L3, MPLS, EVPN-VXLAN, segment routing and multicast support, plus streaming telemetry, LANZ and CloudVision management for large-scale, always-on networks.

Features

- Arista EOS single binary image with state-sharing architecture and self-healing resiliency
- Redundant supervisor, power, fabric and cooling modules, all hot swappable
- Deep packet buffers and large routing tables for internet peering and DCI
- Advanced L2/L3, MPLS, EVPN-VXLAN, segment routing and multicast support
- Precision timing with IEEE 1588 PTP and SyncE
- Advanced monitoring with LANZ, sFlow, IPFIX and streaming telemetry
- CloudVision management, eAPI, NETCONF, RESTCONF, gNMI and OpenConfig
- Typical power under 25 W per 100G port for a fully configured chassis

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Chassis: DCS-7508N, 8 line card slots, 13 RU
- 2 supervisor slots, 6 fabric module slots, 8 power supply slots
- Included: 6x 3kW AC power supplies, 6x DCS-7508R3-FM fabric modules, 1x Supervisor-2 with SSD (Sup2-D)
- System throughput: up to 153 Tbps / 32 Bpps
- Maximum density: 192 x 400G, 768 x 100G, 288 x 40G, 1536 x 10G/25G/50G ports
- Maximum power consumption: 9,024 W (40C ambient, 100% load, excluding optics)
- Dimensions (HxWxD): 57.8 x 44.1 x 79.5 cm (22.75 x 17.3 x 31.3 in)
- Weight: 43.1 kg chassis only, 182 kg full system
- Front-to-rear airflow, hot-swappable components
- Management: 100/1000 management port, RS-232 serial console, USB port

FAQs

Q: What is included in the DCS-7508R3-BND-D bundle?
A: The bundle includes the DCS-7508N 8-slot chassis, six 3kW AC power supplies, six DCS-7508R3-FM fabric modules and one Sup2-D supervisor with SSD. Line cards are ordered separately.

Q: How many line cards can this chassis hold?
A: The 7508N provides 8 line card slots, supporting up to 192 x 400G or 768 x 100G ports at maximum density.

Q: Does the chassis support supervisor redundancy?
A: Yes. The chassis has two supervisor slots. This bundle ships with one Sup2-D, and a second supervisor can be added for redundancy.

Q: What operating system does it run?
A: It runs Arista EOS, a single binary image across the platform, managed via CLI, eAPI, NETCONF, RESTCONF, gNMI or CloudVision.

Q: What is the airflow direction and rack space required?
A: Airflow is front-to-rear and the chassis occupies 13 RU. Plan for a full system weight of around 182 kg when populated.

Q: What is the maximum system throughput?
A: The 7500R3 platform delivers up to 153 Tbps and 32 Bpps of system throughput.
