Arista

Arista DCS-7508R3-BND | 7500R3 7508N 8-Slot Switch Chassis, 6x 3kW AC PSU, Sup2

Arista DCS-7508R3-BND | 7500R3 7508N 8-Slot Switch Chassis, 6x 3kW AC PSU, Sup2

Authorised Arista Partner

SKU:DCS-7508R3-BND

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

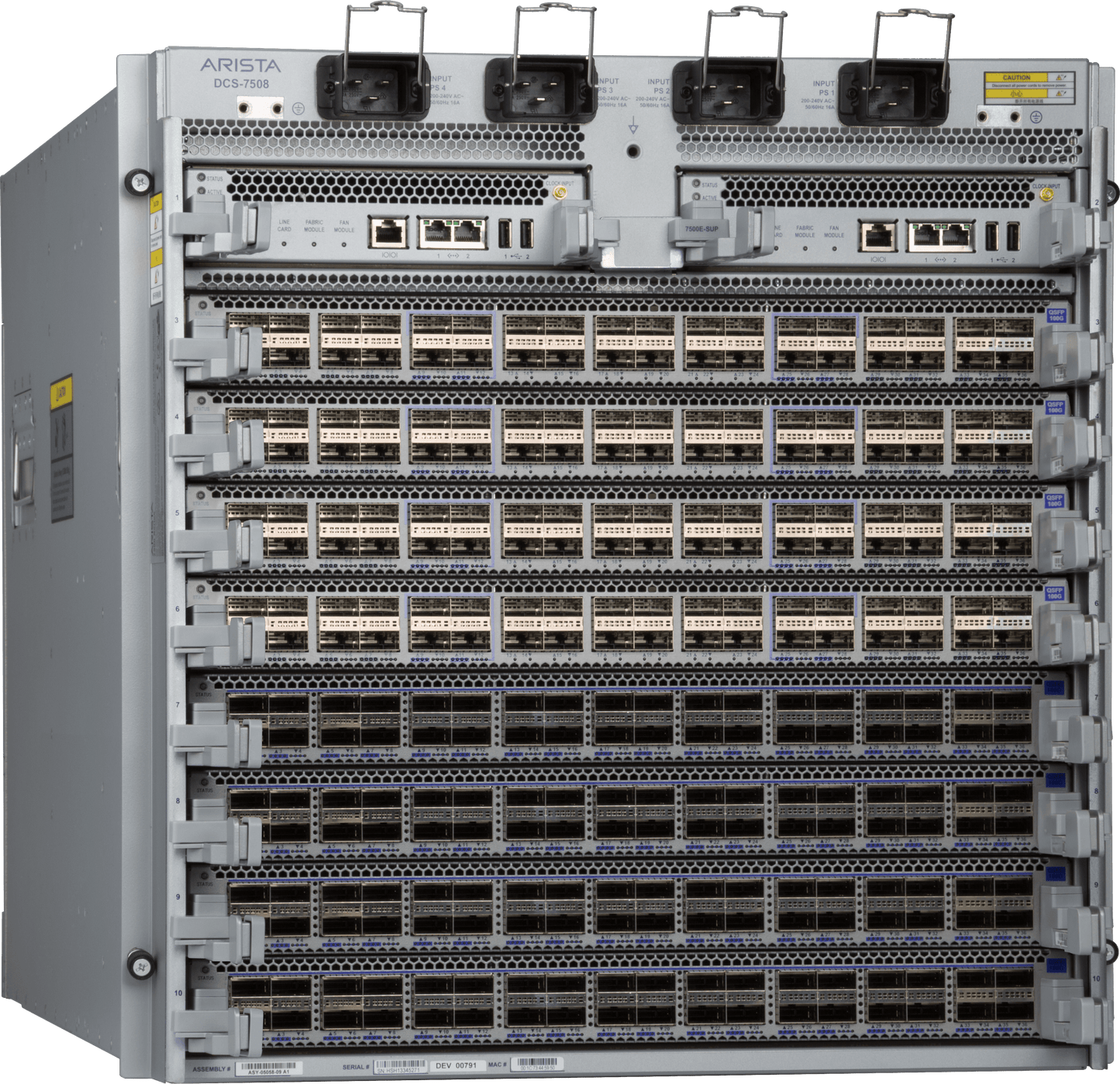

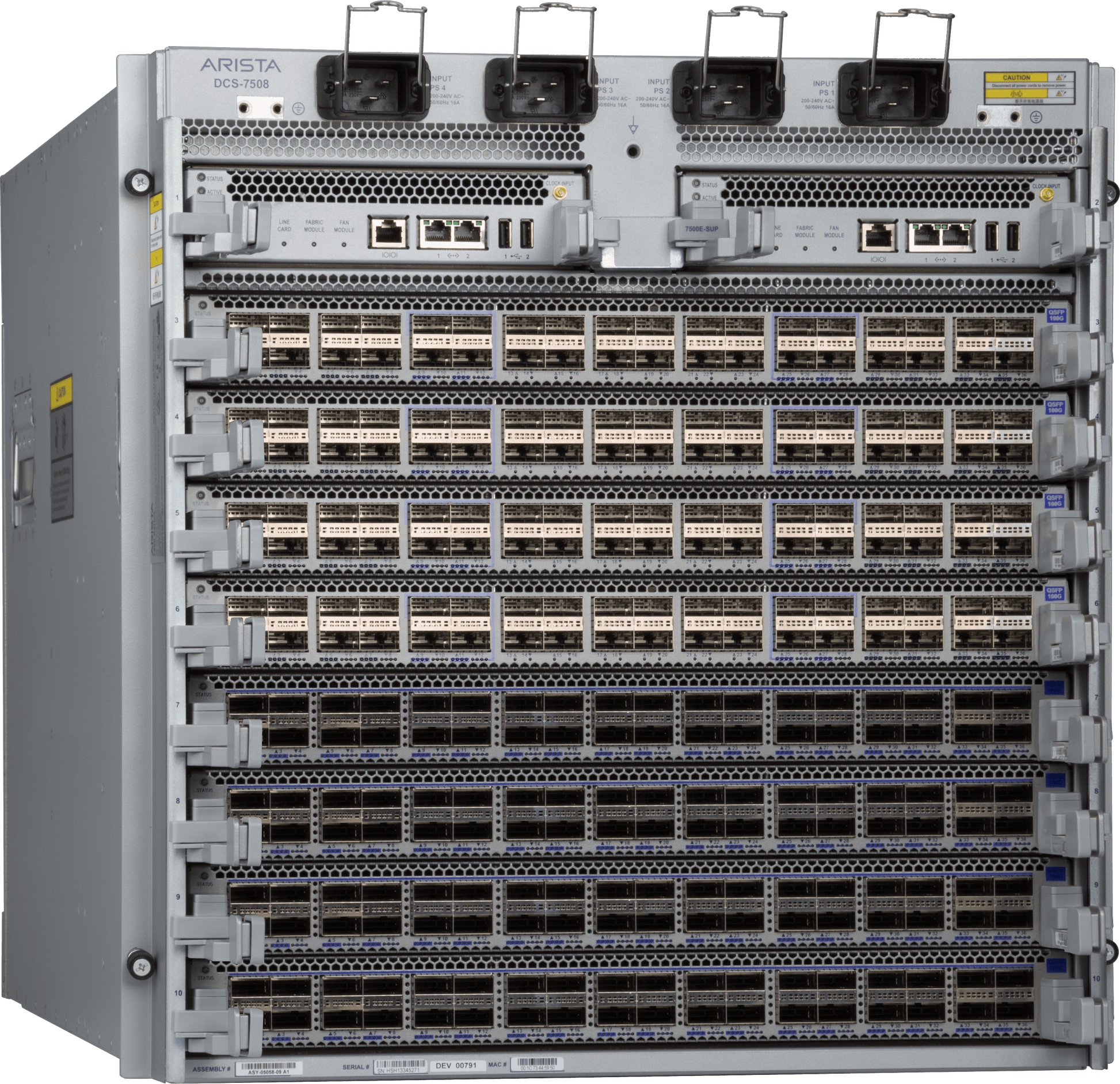

The Arista DCS-7508R3-BND is a modular data centre switch chassis bundle built on the 7508N 8-slot, 13 RU chassis from the 7500R3 series. It ships with six 3kW AC power supplies, six R-series fabric modules and one Sup2 supervisor module, giving you the core platform needed to build a high-density spine or routing layer.

The chassis supports up to eight line cards, which are ordered separately so you can size port density and speeds to the deployment. As part of the 7500R3 data centre switch router family, it is designed for flexible scale and open programmability in large data centre fabrics.

Features

- 8-slot 13 RU chassis supporting up to 8 line cards
- Six 3kW AC power supplies included
- Six R-series fabric modules with integrated fan module included
- Sup2 supervisor module included
- Part of the 7500R3 series data centre switch router family, built for flexible scale and open programmability

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Chassis: 7508N, 8-slot, 13 RU
- Line card slots: up to 8 (line cards ordered separately)
- Power supplies included: 6 x 3kW AC
- Fabric modules included: 6 x FM-R (DCS-7508R3-FM)
- Supervisor included: 1 x Sup2
- Fabric module integrated fan module: Yes
- Fabric module dimensions (H x W x D): 2.5 x 14 x 10.25 in (6.4 x 35.6 x 26 cm)
- Fabric module weight: 13.25 lbs (6.0 kg)
- Fabric module typical (max) power: 225 W (380 W)

FAQs

Q: What is included in the DCS-7508R3-BND bundle?
A: The bundle includes the 7508N 8-slot chassis, six 3kW AC power supplies, six FM-R fabric modules and one Sup2 supervisor module.

Q: Are line cards included?
A: No. Line cards are ordered separately. The chassis supports up to eight line cards.

Q: How many rack units does the chassis occupy?
A: The 7508N chassis is 13 RU.

Q: Does this bundle use AC or DC power?
A: This bundle includes six 3kW AC power supplies.

Q: Which supervisor module is included?
A: One Sup2 supervisor module is included in the bundle.

Q: Do the fabric modules include cooling?
A: Yes. The FM-R fabric modules have an integrated fan module.
