Arista DCS-7508R-BND-DC | 7508R 8-Slot Modular Chassis Switch, DC, 6x DC PSU, 6x FM-R, Sup2
Arista DCS-7508R-BND-DC | 7508R 8-Slot Modular Chassis Switch, DC, 6x DC PSU, 6x FM-R, Sup2
Authorised Arista Partner
SKU:DCS-7508R-BND-DC
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

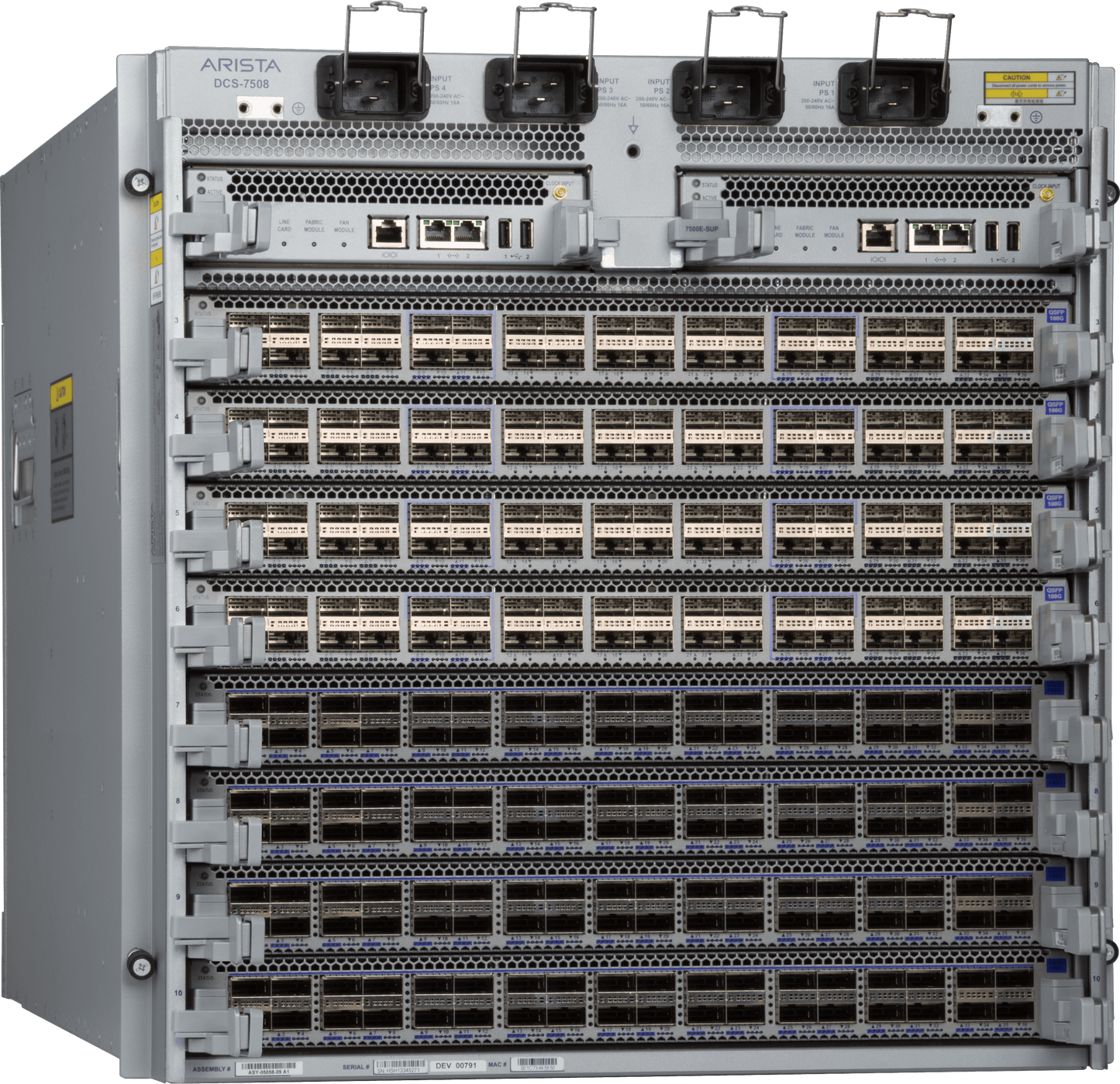

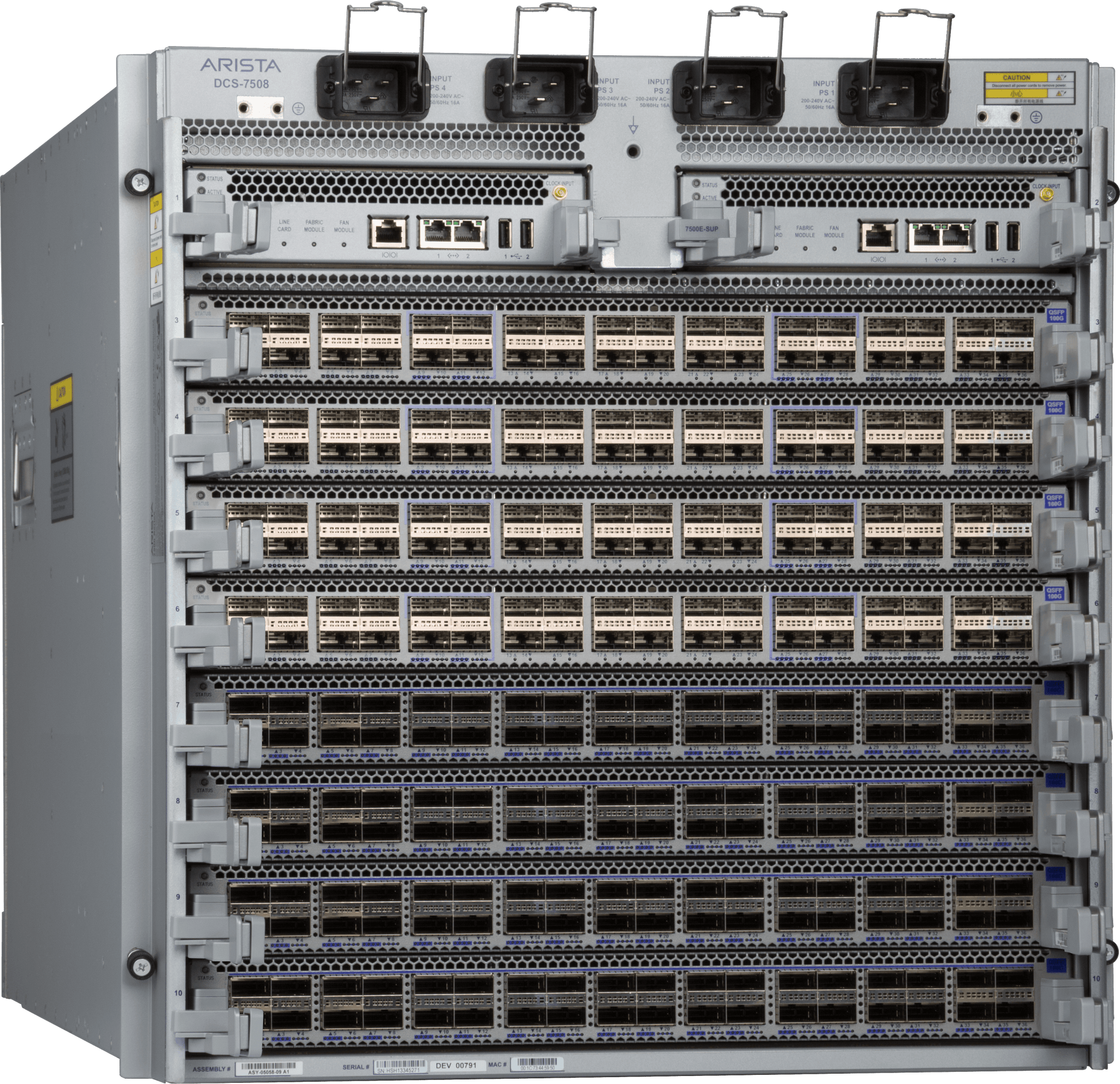

The Arista 7508R DC modular chassis switch is a 13RU, 8-slot data centre platform from the Arista 7500R Series, supplied as a DC-powered bundle. It includes the 7508N chassis, six DC power supplies, six R-series fabric modules (FM-R) and one Supervisor-2 (Sup2) module, delivering up to 75 Tbps and 34.5 Bpps of throughput with densities of up to 288 x 100GbE or 1,152 x 10GbE/25GbE ports once line cards are fitted.
The chassis accepts 7500R and 7500E line cards (ordered separately) and provides a second supervisor slot for 1+1 supervisor redundancy. N+N grid redundant power, N+1 fabric module and N+1 fan module redundancy, front-to-rear airflow and a lossless fabric with virtual output queueing suit core, spine and DC-powered facility deployments running Arista EOS with eAPI and automation support.
Features
Features
- DC-powered bundle with six 3000 W DC power supplies for DC-fed data centres and facilities
- N+N grid redundant power system
- 1+1 supervisor redundancy with a second supervisor slot
- N+1 fabric module redundancy and N+1 fan module redundancy
- Front-to-rear airflow optimised for data centre cooling
- Lossless fabric with virtual output queueing (18,432 VOQs per port)
- Runs Arista EOS with eAPI and automation support
- Compatible with 7500R and 7500E line cards
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Bundle contents: 7508N chassis, 6 x DC power supplies, 6 x 7508R fabric modules (FM-R), 1 x Supervisor-2 (Sup2)
- 8 line card slots (7500R/7500E line cards, ordered separately)
- 2 supervisor slots, 1 x Sup2 included
- 6 fabric module slots, 5+1 fabric module redundancy
- 8 power supply slots, 6 x PWR-3K-DC-RED installed (3000 W each)
- DC power supply input: -48 to -60V DC, 69A max at -48V, AWG #2 max input connector
- Up to 75 Tbps / 34.5 Bpps throughput
- Maximum density: 288 x 100GbE, 288 x 40GbE, 576 x 50GbE, 1,152 x 25GbE, 1,152 x 10GbE
- Maximum power consumption: 11,000 W
- Control plane: multi-core x86 CPU, 32GB DRAM, 4GB flash
- Dimensions (H x W x D): 22.75 x 19 x 31.3 in (57.8 x 48.3 x 79.5 cm), 13RU
- Weight: 95 lbs (43.1 kg) chassis only, 400 lbs (182 kg) full system
- Front-to-rear airflow
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
FAQs
Q: Does this bundle include line cards?
A: No. The bundle contains the 7508N chassis, six DC power supplies, six FM-R fabric modules and one Sup2 supervisor. Compatible 7500R and 7500E line cards are ordered separately to populate the 8 line card slots.
Q: What power input does this DC model require?
A: The six PWR-3K-DC-RED power supplies take a -48 to -60V DC input, drawing up to 69A at -48V, and each delivers 3000 W. The input connector accepts up to AWG #2 cabling.
Q: Can I add a second supervisor?
A: Yes. The chassis has two supervisor slots, and this bundle includes one Sup2. Adding a second supervisor provides 1+1 supervisor redundancy.
Q: What redundancy does the chassis provide?
A: It supports N+N grid redundant power, 1+1 supervisor redundancy, N+1 fabric module redundancy (5+1 with the fabric modules) and N+1 fan module redundancy.
Q: How many ports can the 7508R support?
A: With line cards fitted, the chassis scales to up to 288 x 100GbE or 40GbE ports, 576 x 50GbE ports, and 1,152 x 10GbE or 25GbE ports, with up to 75 Tbps and 34.5 Bpps of throughput.
Q: What is the airflow direction?
A: The chassis uses front-to-rear airflow, optimised for data centre hot and cold aisle cooling.
