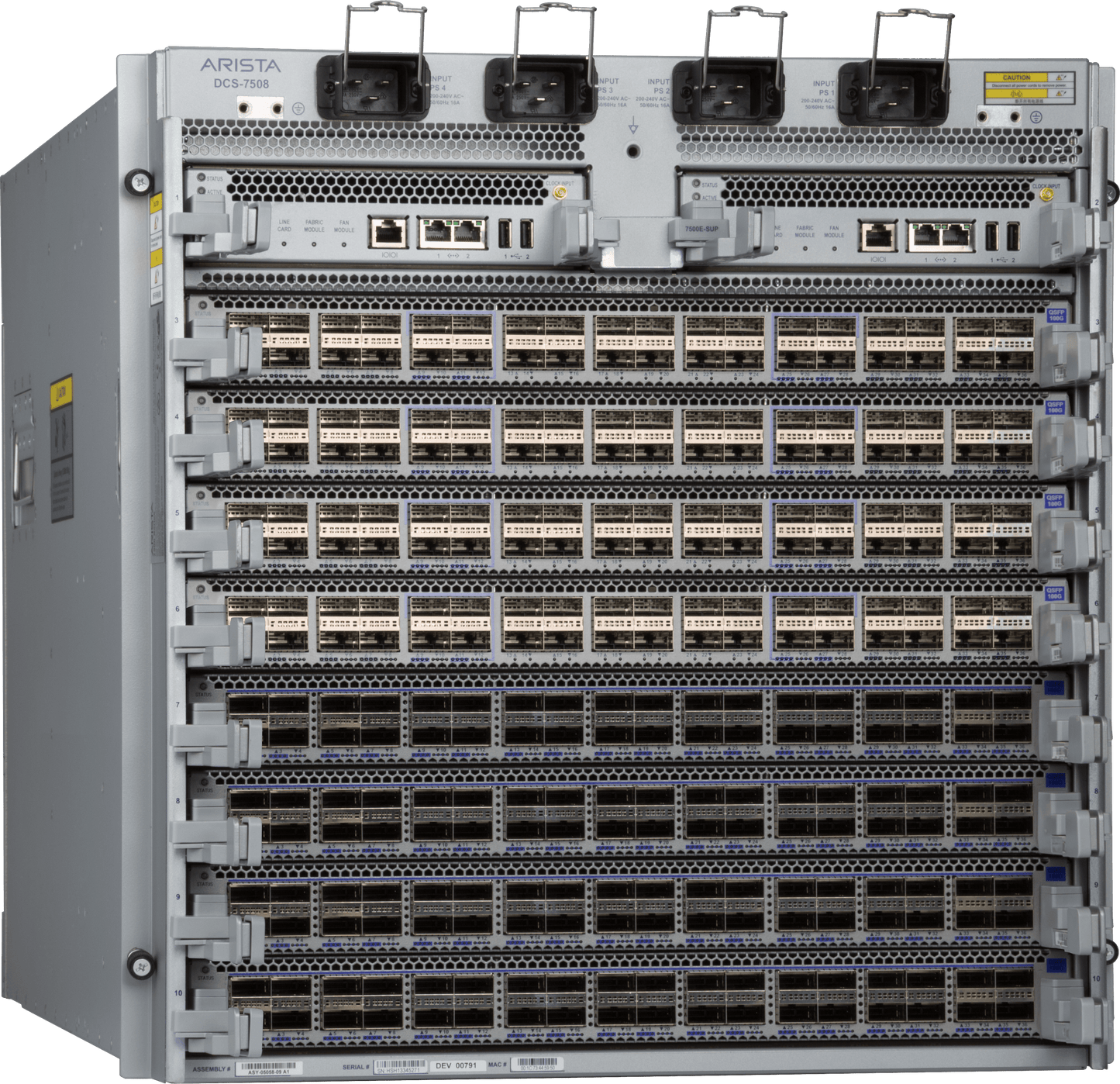

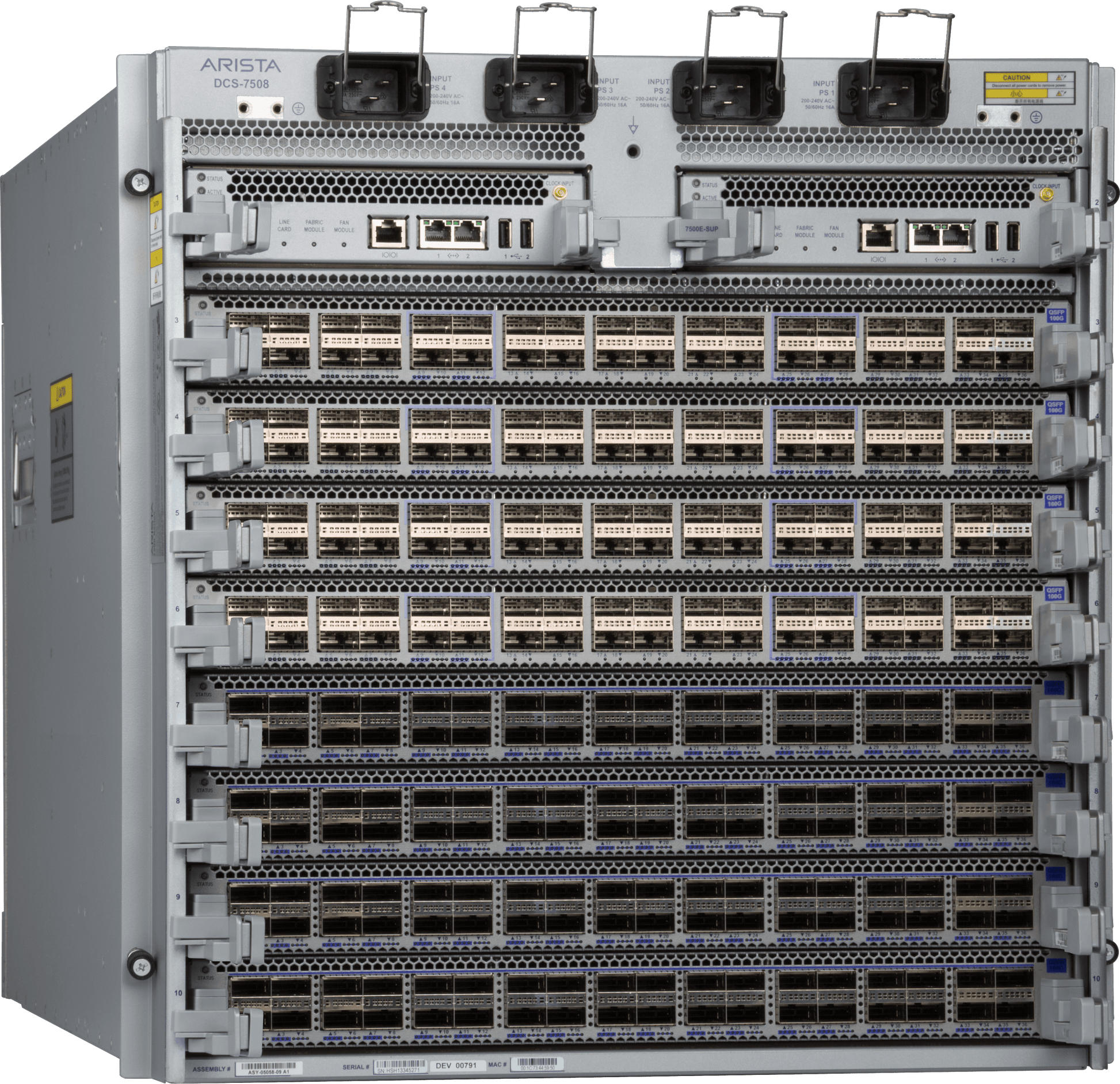

Arista DCS-7508E-BND | 7500E 8-Slot Modular Switch Chassis, Supervisor-E, 6x Fabric-E, 4x 2900W PSU

Arista DCS-7508E-BND | 7500E 8-Slot Modular Switch Chassis, Supervisor-E, 6x Fabric-E, 4x 2900W PSU

Authorised Arista Partner

SKU:DCS-7508E-BND

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7508R-BND.

Description

The 7508E chassis bundle is an 8-slot modular data centre switch chassis built for high-density leaf-spine and core deployments. This bundle includes the 7508 chassis, one Supervisor-E (no SSD), six Fabric-E modules and four 2900W AC power supplies. With line cards ordered separately, it scales to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports and delivers up to 30 Tbps of throughput.

The chassis uses a deep-buffer virtual output queue architecture for line-rate, non-blocking switching, with 5+1 fabric redundancy and N+N power redundancy. It runs Arista EOS with eAPI, ZTP and automation tools, and supports VXLAN gateway functions, LANZ and DANZ congestion monitoring, and IEEE 1588 PTP timing. It accepts 100M to 100G line cards, including QSFP, MXP, CFP2, SFP+ and 10GBASE-T options.

Features

- Line-rate non-blocking switching with deep-buffer VOQ architecture that eliminates head-of-line blocking
- Supports 100M to 100G line cards including 12x100GbE QSFP, 12x100GbE MXP, 6x100GbE CFP2, 36x40GbE QSFP+ and 48x10GbE SFP+/10GBASE-T
- 64-way ECMP and 128-way MLAG for leaf-spine designs
- VXLAN gateway and virtualisation support
- LANZ and DANZ for latency and congestion monitoring
- IEEE 1588 PTP precision timing
- Arista EOS with eAPI, ZTP/ZTR and AEM automation
- Redundant 5+1 fabric and N+N power design
- Includes four C19-C20 2m power cables

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Bundle contents: 7508 chassis, 1x Supervisor-E, 6x DCS-7508E-FM Fabric-E modules, 4x PWR-2900AC 2900W AC power supplies
- 8 line card slots, 2 supervisor slots, 6 fabric module slots, 4 power supply slots
- Up to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports (with line cards)
- Maximum throughput: 30 Tbps / 14.4 Bpps
- Fabric redundancy: 5+1
- Supervisor-E: 2.6GHz quad-core x86 64-bit processor, 16GB RAM, 4GB flash
- Supervisor ports: 1x RJ-45 RS-232 serial, 2x RJ-45 100/1000 management, 2x USB 2.0
- Maximum power consumption: 5,790W
- PSU input: 200-240V, 16A (20A UL), 50-60 Hz, IEC 320 C19 connector
- Dimensions (H x W x D): 19.1 x 19 x 30 in (48.5 x 48.3 x 76.2 cm)
- Weight: 95 lbs (43.1 kg) chassis only, 300 lbs (136 kg) fully configured
- Operating temperature: 0 to 40 C, humidity 5 to 95%
- Airflow: maximum 800 CFM at 40 C
- Compliance: FCC Part 15 Class A, ICES-003 Class A, VCCI Class A, CE, UL, cTUVus, TUV, RoHS

FAQs

Q: Does this bundle include line cards?
A: No. The bundle contains the chassis, one Supervisor-E, six Fabric-E modules and four 2900W AC power supplies. Line cards are ordered separately.

Q: How many ports can the 7508E support?
A: With line cards installed it supports up to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports, across 8 line card slots.

Q: Does the chassis support redundancy?
A: Yes. It uses 5+1 fabric module redundancy and an N+N power design, and has two supervisor slots.

Q: What power supplies are included?
A: Four PWR-2900AC 2900W AC supplies with IEC 320 C19 inputs, rated for 200-240V. Four C19-C20 2m power cables are included.

Q: What is the maximum throughput?
A: The chassis delivers up to 30 Tbps and 14.4 Bpps of maximum throughput.

Q: What operating system does it run?
A: It runs Arista EOS, with eAPI, ZTP/ZTR and AEM automation support.
