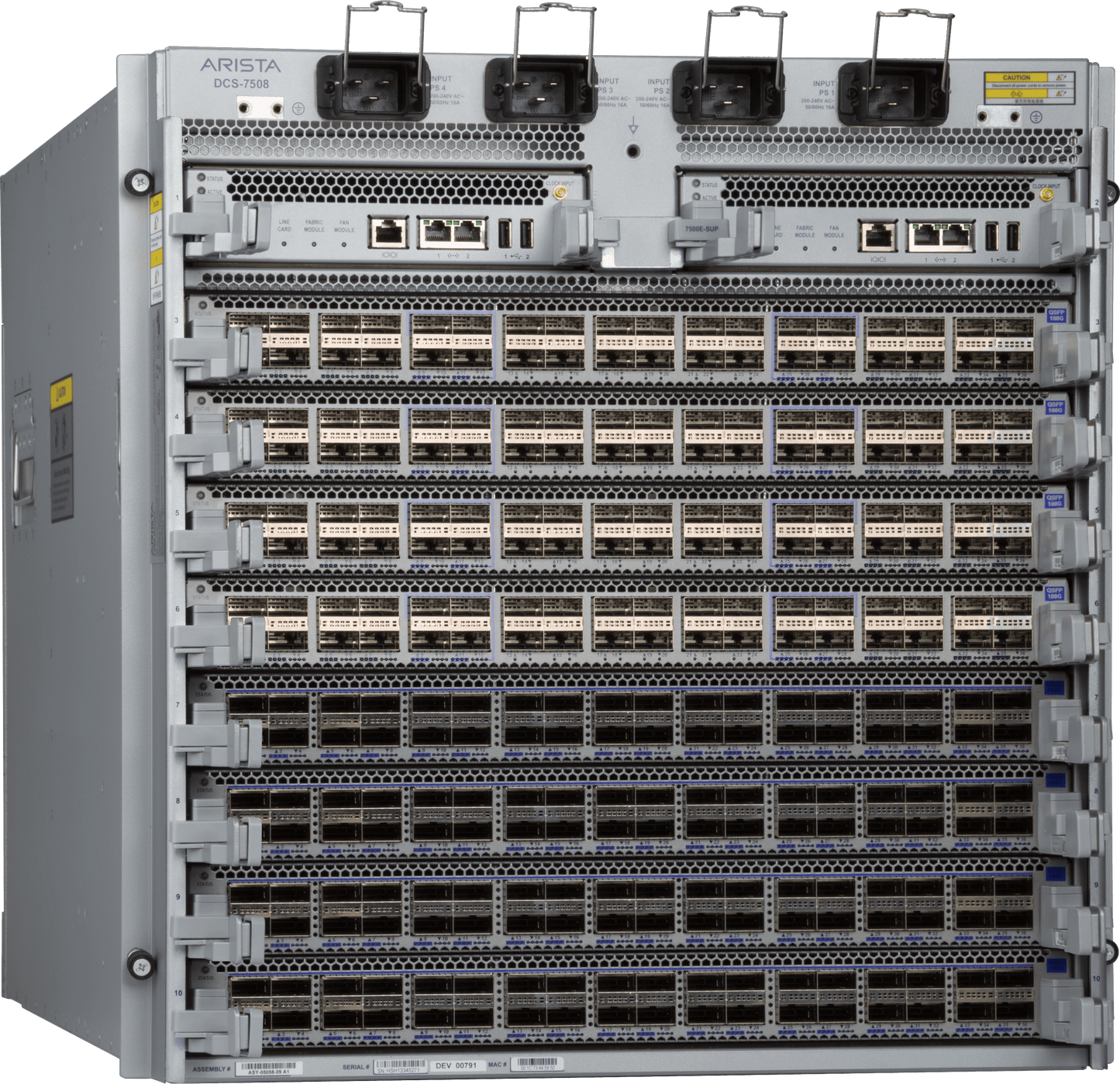

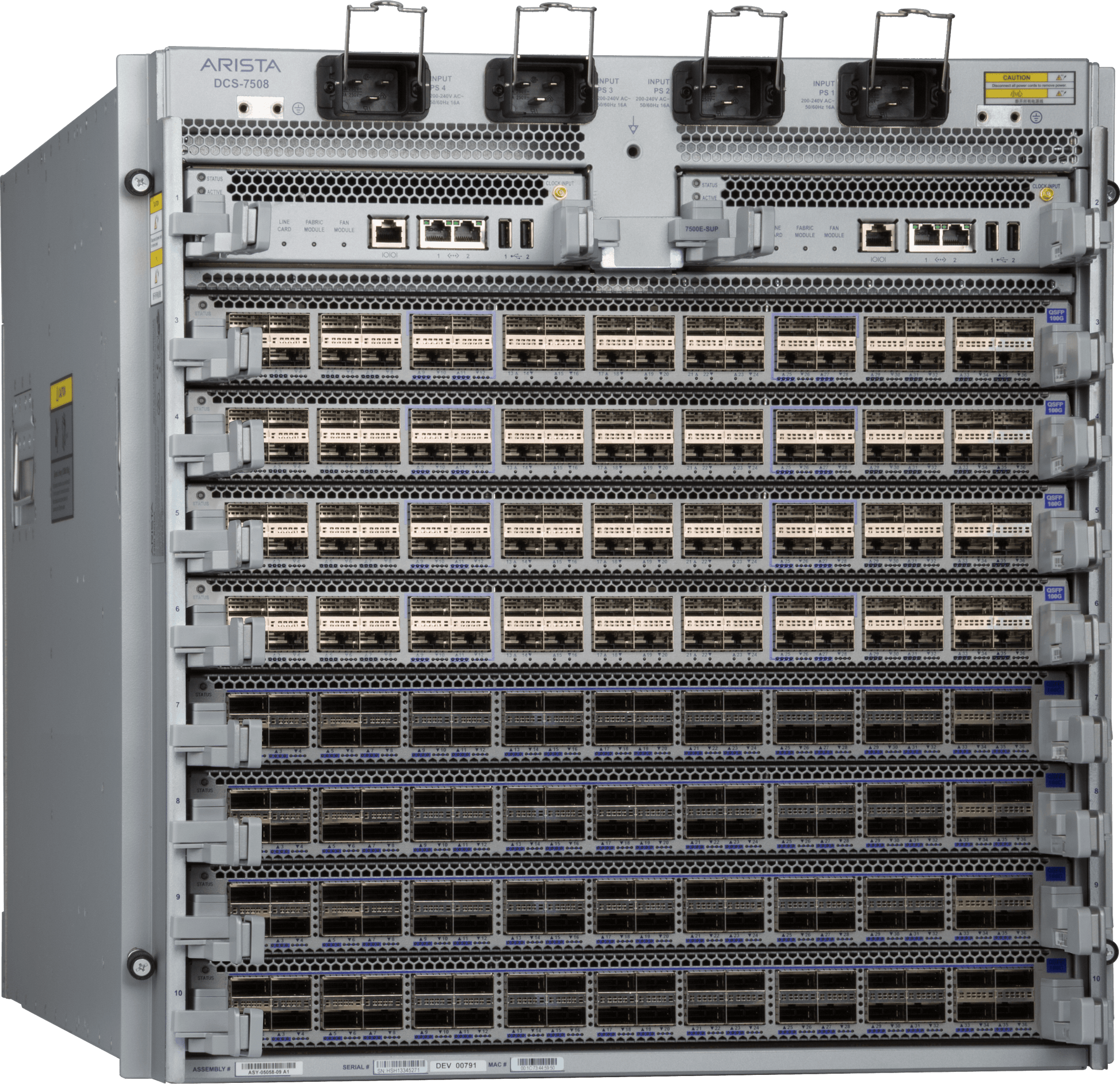

Arista DCS-7508-CH | 7500E 8-Slot Modular Chassis Switch, 11U, 6 Fabric Slots

Arista DCS-7508-CH | 7500E 8-Slot Modular Chassis Switch, 11U, 6 Fabric Slots

Authorised Arista Partner

SKU:DCS-7508-CH

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7508N-CH.

Description

The Arista DCS-7508-CH is an empty 8-slot modular chassis switch for the Arista 7500E Series, built for data centre spine and core deployments. It provides 8 line card slots, 2 supervisor slots and 6 fabric module slots in an 11U chassis, and scales to up to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports with up to 30 Tbps and 14.4 Bpps of throughput. This is the chassis only, so supervisors, line cards, fabric modules and power supplies are ordered separately.

The chassis accepts any combination of 7500E Series line cards, with fabric modules connecting to every line card in a non-blocking full mesh and running in 5+1 redundancy. Four power supply slots support PWR-2900AC supplies, and supervisors, fabric modules and power supplies are hot-swappable, helping keep a modular data centre fabric running through maintenance and upgrades.

Features

- Works with any combination of 7500E Series line cards
- Fabric modules connect to all line cards in a non-blocking full mesh
- Hot-swappable fabric modules, supervisors and power supplies
- Integrated fan assembly in each fabric module for redundant cooling
- Supervisor and line card modules install from the front, fabric and power supply modules from the rear
- Supports PWR-2900AC power supplies, 2900 W output each
- Dual supervisor slots for control plane redundancy

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Supervisor slots: 2
- Line card slots: 8
- Fabric module slots: 6 (5+1 redundancy)
- Power supply slots: 4
- Throughput: up to 30 Tbps / 14.4 Bpps
- Maximum port density: 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE
- Rack space: 11U
- Dimensions (H x W x D): 48.5 x 48.3 x 76.2 cm (19.1 x 19 x 30 in)
- Weight (chassis only): 43.1 kg (95 lbs)
- Weight (fully configured): 136 kg (300 lbs)
- Maximum power consumption: 5,790 W
- Operating temperature: 0 to 40 C (32 to 104 F)
- Operating altitude: 0 to 3,000 m (10,000 ft)
- Airflow: maximum 800 CFM at 40 C, typical 600 CFM at 25 C
- Compliance: FCC Part 15 Class A, ICES-003 Class A, VCCI Class A, CE, UL, cTUVus, TUV Mark, RoHS

FAQs

Q: Does the DCS-7508-CH include supervisors, line cards or power supplies?
A: No. This is the empty chassis only. Supervisors, line cards, fabric modules and power supplies are ordered separately.

Q: How many slots does the Arista 7508 chassis have?
A: It has 8 line card slots, 2 supervisor slots, 6 fabric module slots and 4 power supply slots in an 11U chassis.

Q: What port densities can the 7508 chassis support?
A: Depending on the line cards installed, it scales to up to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports, with up to 30 Tbps of throughput.

Q: Which power supplies are compatible with this chassis?
A: The chassis supports PWR-2900AC power supplies, each providing 2900 W of output, across its four power supply slots.

Q: Are the fabric modules redundant?
A: Yes. The 6 fabric module slots support 5+1 redundancy, and fabric modules are hot-swappable with an integrated fan assembly each.

Q: Are power cords and rack mounting brackets included?
A: No. The KIT-7508 spare accessory kit, which contains 4 x C19-C20 power cords plus 2-post and 4-post mounting brackets, is a separate item.
