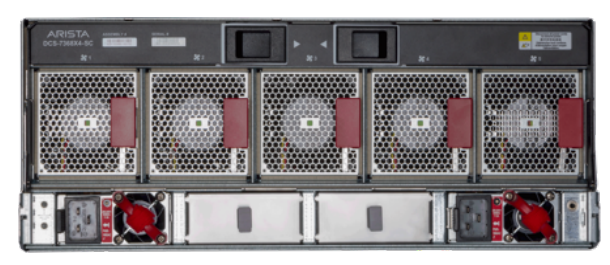

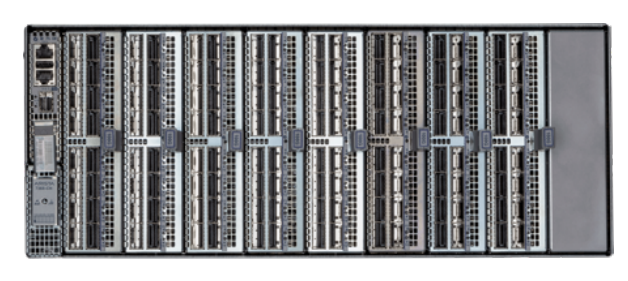

Arista DCS-7368X-BND-D-R | 7368X4 Modular Switch Chassis Bundle, AC PS, SSD

Arista DCS-7368X-BND-D-R | 7368X4 Modular Switch Chassis Bundle, AC PS, SSD

Authorised Arista Partner

SKU:DCS-7368X-BND-D-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7368X-BND-D-R is a 7368X4 modular data centre switch chassis bundle in a 4RU form factor, supplied with AC power supplies, a Supervisor-SSD, X4-SC and fans. Built on a single 12.8 Tbps packet processor, the 7368X4 series scales to up to 128 x 100G or 32 x 400G ports, with wire-speed Layer 2 and Layer 3 forwarding and latency from 700ns for 400G.

All active components are field removable, so IO modules, supervisor, power supplies and fans can be mixed, matched and replaced without disturbing the rest of the chassis. The platform runs Arista EOS with full access to the Linux shell and supports 100G QSFP, 400G OSFP and QSFP-DD interfaces for hyperscale and high-density leaf-spine deployments.

Features

- All active components field removable
- Mix and match IO modules
- 128-way ECMP for hyperscale networks
- Dynamic Load Balancing for advanced multi-pathing
- Stateful Fault Containment (SFC) and Stateful Fault Repair (SFR)
- Full access to Linux shell and tools
- Extensible platform supporting bash, python and C++
- Tool-less rails for simple installation
- Runs Arista EOS

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Modular data centre switch chassis, 4RU
- Up to 128 x 100G or 32 x 400G ports
- Up to 25.6 Tbps system capacity
- Up to 8 billion packets per second
- Wire-speed L2 and L3 forwarding
- Latency from 700ns for 400G
- Typical power under 10W per 100G port
- Over 93% efficient power supplies
- N+N redundant hot-swappable power
- N+1 redundant hot-swappable fans
- Front-to-rear and rear-to-front cooling supported
- Bundle includes AC power supplies, Supervisor-SSD, X4-SC and fans

FAQs

Q: What is included in the DCS-7368X-BND-D-R bundle?
A: The bundle comprises the 7368X4 chassis with AC power supplies, a Supervisor-SSD, the X4-SC module and fans. IO modules are selected separately to suit your port requirements.

Q: What port speeds does the 7368X4 chassis support?
A: The 7368X4 series supports 100G QSFP, 400G OSFP and QSFP-DD interfaces, scaling up to 128 x 100G or 32 x 400G ports depending on the IO modules installed.

Q: Does the chassis support redundant power and cooling?
A: Yes. It supports N+N redundant hot-swappable power supplies and N+1 redundant hot-swappable fans, so components can be replaced without taking the switch offline.

Q: Which operating system does it run?
A: It runs Arista EOS, with full access to the Linux shell and tools, and is extensible using bash, python and C++.

Q: How many rack units does the chassis occupy?
A: The 7368X4 chassis is a 4RU unit and ships with tool-less rails for simple rack installation.

Q: What is the typical power draw per port?
A: Typical power consumption is under 10W per 100G port, supported by power supplies that are over 93% efficient.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
