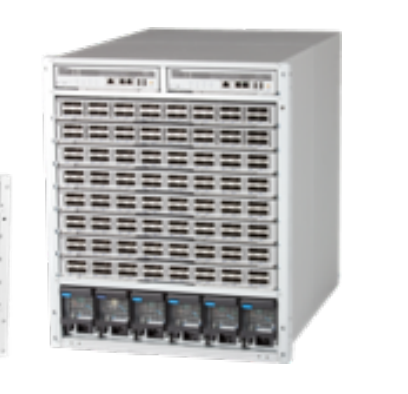

Arista DCS-7328X-BND-DC-F | 7300X 7308 Chassis Switch, 4x 3kW DC PS, 4x Fabric/Fan

Arista DCS-7328X-BND-DC-F | 7300X 7308 Chassis Switch, 4x 3kW DC PS, 4x Fabric/Fan

Authorised Arista Partner

SKU:DCS-7328X-BND-DC-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7328X-BND-DC-F is a modular 8-slot, 13RU 7308 chassis switch bundle from the Arista 7300X series, built for high-density data centre spine and core deployments. It is supplied with four 3kW DC power supplies (-48 to -60V DC) and four 7328X fabric modules with integrated fans, configured for front-to-rear airflow. With linecards installed, the platform scales to 1,024 x 10GbE or 256 x 40GbE ports and up to 20 Tbps / 15 Bpps of throughput.

The chassis provides two supervisor slots for 1+1 redundancy, eight linecard slots, and hot-swappable supervisors, power supplies, fabric and cooling modules. Grid-redundant DC power with load sharing and fabric graceful degradation help maintain availability, while Arista EOS delivers wire-speed L2 and L3 forwarding with stateful fault repair. Linecards and supervisors are ordered separately.

Features

- Hot-swappable supervisors, power supplies, fabric and cooling modules
- 1+1 supervisor redundancy
- N+N grid redundant power system with load sharing
- Fabric redundancy with graceful degradation
- Integrated fans with N+1 redundancy
- Arista EOS with stateful fault repair
- Wire-speed L2 and L3 forwarding

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Chassis: DCS-7308, 13RU, 8 linecard slots, 2 supervisor slots
- 4x 3000W DC power supplies, -48 to -60V DC input
- 4x 7328X fabric modules with integrated fans
- Airflow: front-to-rear
- Up to 1,024 x 10GbE or 256 x 40GbE ports (with linecards)
- Throughput: up to 20 Tbps / 15 Bpps
- Power supply slots: 6, fan modules: 16
- Maximum power consumption: 6000W
- Supervisor: 2.6GHz quad-core x86 64-bit, 16 GB memory, 4 GB flash
- Dimensions (H x W x D): 57.2 x 44.1 x 60.3 cm
- Weight: 49.9 kg chassis only, 135.6 kg fully configured

FAQs

Q: Are linecards included with the DCS-7328X-BND-DC-F?
A: No. The bundle includes the 7308 chassis, four DC power supplies and four 7328X fabric/fan modules. Linecards are ordered separately.

Q: What power input does this bundle use?
A: It ships with four 3000W DC power supplies operating from a -48 to -60V DC input. The chassis supports N+N grid redundant power.

Q: What airflow does this configuration provide?
A: Front-to-rear airflow, delivered by the fabric modules with integrated fans.

Q: How many ports can the 7308 chassis support?
A: With suitable linecards installed, up to 1,024 x 10GbE or 256 x 40GbE ports, with chassis throughput up to 20 Tbps.

Q: Does the chassis support supervisor redundancy?
A: Yes. It has two supervisor slots supporting 1+1 redundancy, and supervisors are hot-swappable.

Q: How much rack space does it need?
A: The 7308 chassis occupies 13RU and weighs 49.9 kg empty, rising to 135.6 kg when fully configured.
