Arista DCS-7308X3-BND-DC-F | 7308X3 Modular Chassis Switch Bundle, DC Power, 4x Fabric

Arista DCS-7308X3-BND-DC-F | 7308X3 Modular Chassis Switch Bundle, DC Power, 4x Fabric

Authorised Arista Partner

SKU:DCS-7308X3-BND-DC-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This product is end of life. Contact us for alternatives.

Description

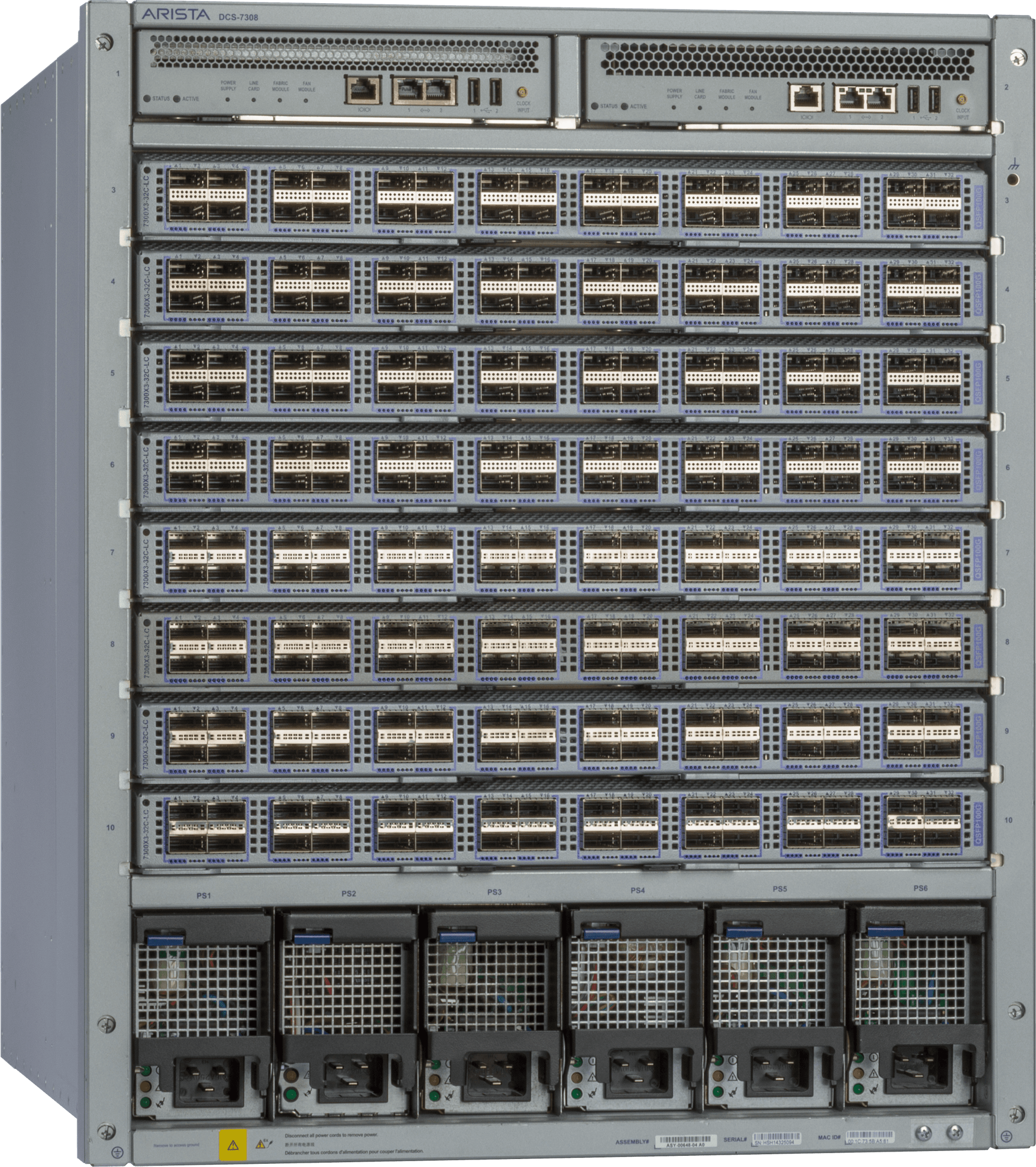

The Arista 7308X3 chassis bundle is a modular data centre chassis switch for spine and Spline deployments, built on the 13RU, 8-slot DCS-7308 chassis. This DC-powered bundle includes four 3000W DC power supplies, four 7300X3 fabric modules with fans and one Supervisor, with front-to-rear airflow. With compatible line cards it scales to 256 x 100GbE or 1,024 x 25GbE/10GbE ports and up to 51.2 Tbps of throughput.

The chassis supports N+N grid-redundant power, N+1 fan redundancy, redundant fabric modules and 1+1 Supervisor redundancy, with hot-swappable supervisor, fabric, power and cooling modules. It runs Arista EOS with a single binary image, CloudVision, ZTP, LANZ and eAPI, and is suited to telco and data centre sites that run on -48V DC power. Line cards are ordered separately.

Features

- N+N grid-redundant power, N+1 fan redundancy and redundant fabric modules
- 1+1 Supervisor redundancy
- Hot-swappable supervisor, fabric, power and cooling modules
- Wire-speed L2/L3 forwarding with latency below 2.5 usec
- 32 MB dynamic shared packet buffer
- Runs Arista EOS with a single binary image, CloudVision, ZTP, LANZ, DANZ, sFlow and eAPI
- VXLAN routing and bridging, OpenFlow and VM Tracer
- 128-way ECMP and 64-way MLAG
- Front-to-rear airflow optimised for data centre cooling

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 13RU 8-slot modular chassis (DCS-7308)
- 4x 3000W DC power supplies included (PWR-3K-DC-BLUE)
- DC input: -48 to -60V DC, 69A max at -48V
- 4x 7300X3 fabric modules with fans included (DCS-7308X3-FM)
- 1x Supervisor included (DCS-7300-SUP)
- Supervisor: 2.6GHz quad core x86 64-bit CPU, 16 GB system memory, 4 GB flash
- Supervisor ports: 1x RS-232 serial (RJ-45), 2x 100/1000 management (RJ-45), 2x USB 2.0
- Slots: 2 supervisor, 8 line card, 4 fabric module, 6 power supply
- Up to 256 x 100GbE, 512 x 50GbE, 1,024 x 25GbE/10GbE ports (with line cards)
- Up to 51.2 Tbps / 32 Bpps throughput
- Front-to-rear airflow
- Maximum power consumption: 6500 W
- Dimensions (HxWxD): 57.2 x 44.1 x 60.3 cm
- Weight: 49.9 kg chassis only, 132.5 kg fully configured
- Operating temperature: 0 to 40 C

FAQs

Q: What is included in the DCS-7308X3-BND-DC-F bundle?
A: The bundle includes the 13RU 8-slot DCS-7308 chassis, four 3000W DC power supplies (PWR-3K-DC-BLUE), four 7300X3 fabric modules with fans (DCS-7308X3-FM) and one DCS-7300-SUP Supervisor.

Q: Are line cards included?
A: No. The chassis has eight line card slots, and compatible 7300X3 line cards are ordered separately to provide 100GbE, 40GbE, 25GbE or 10GbE ports.

Q: What DC input does this bundle require?
A: Each DC power supply accepts -48 to -60V DC input at up to 69A maximum at -48V, and delivers 3000W output.

Q: What airflow direction does this chassis use?
A: This bundle uses front-to-rear airflow, which suits standard hot and cold aisle data centre layouts.

Q: What port density and throughput can the 7308X3 reach?
A: With line cards installed, the 7308X3 supports up to 256 x 100GbE or 1,024 x 25GbE/10GbE ports and up to 51.2 Tbps / 32 Bpps.

Q: Does the bundle provide redundancy?
A: Yes. The chassis supports N+N grid-redundant power, N+1 fan redundancy, redundant fabric modules and 1+1 Supervisor redundancy, with hot-swappable modules.
