Arista DCS-7308X3-BND-D-F | 7300X3 7308X3 Modular Chassis Switch, 13RU, 4x 3KW AC PS, Supervisor & SSD
Arista DCS-7308X3-BND-D-F | 7300X3 7308X3 Modular Chassis Switch, 13RU, 4x 3KW AC PS, Supervisor & SSD
Authorised Arista Partner
SKU:DCS-7308X3-BND-D-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

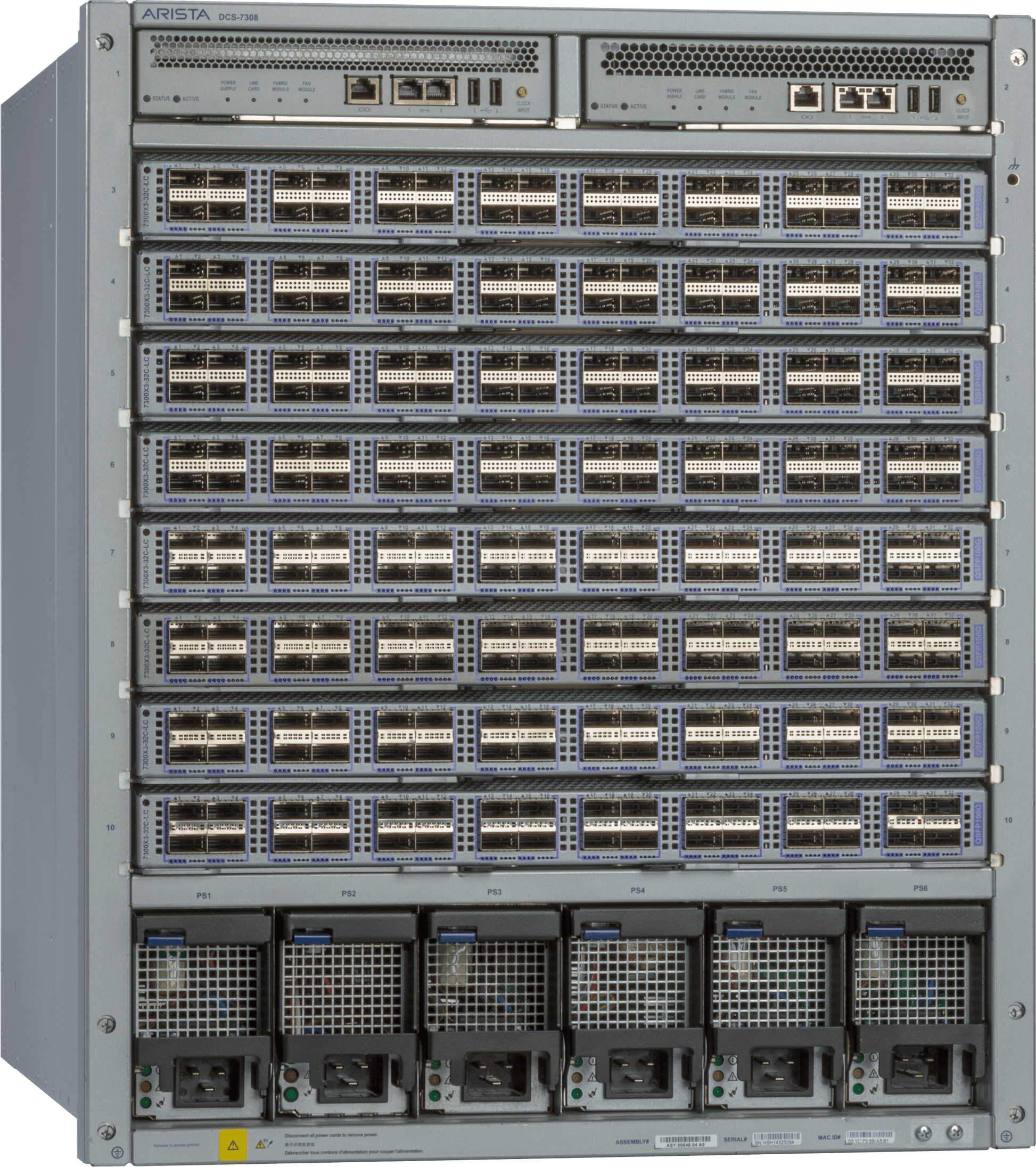

The Arista 7308X3 modular chassis switch bundle is an 8-slot, 13RU data centre spine and spline platform from the 7300X3 Series. This bundle ships with 4x 3000W AC Titanium power supplies, 4x 7300X3 fabric modules with fans, and one supervisor module with SSD, with front-to-rear airflow to suit hot and cold aisle designs. With line cards fitted, the chassis scales to 256 x 100GbE or 1,024 x 25/10GbE ports and up to 51.2 Tbps of throughput.
Line cards are ordered separately, so the chassis can be matched to your port speed and density requirements. Redundancy is built in with 1+1 supervisor support, N+N grid redundant power, N+1 fan redundancy and redundant fabric modules. The platform runs Arista EOS, with CloudVision, zero touch provisioning, LANZ microburst detection and VXLAN support for modern leaf-spine and cloud-scale networks.
Features
Features
- Over 50 Tbps fabric capacity and up to 32 billion packets per second
- 1+1 supervisor redundancy, N+N grid redundant power, N+1 fan redundancy and redundant fabric modules
- Wire-speed L2/L3 forwarding with latency below 2.5 usec
- 32 MB dynamic buffer per port group
- Arista EOS with CloudVision, ZTP, LANZ microburst detection, DANZ advanced mirroring and sFlow
- VXLAN, VM Tracer, OpenFlow, DirectFlow and eAPI support
- Under 1.7W per 10Gb of performance
- Front-to-rear airflow optimised for data centre cooling
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 8-slot modular chassis, 13RU
- 4 x 3000W AC Titanium power supplies (PWR-3KT-AC-BLUE)
- 4 x DCS-7308X3-FM fabric modules with fans
- 1 x supervisor module (DCS-7300-SUP) with SSD
- Supervisor slots: 2, linecard slots: 8, fabric module slots: 4, power supply slots: 6
- Fan modules (chassis capacity): 16
- Up to 51.2 Tbps / 32 Bpps throughput
- Up to 256 x 100GbE, 256 x 40GbE, 512 x 50GbE or 1,024 x 25/10GbE ports (with line cards)
- Supervisor: 2.6GHz quad core x86 64-bit, 16 GB system memory, 4 GB flash, 100 GB SSD
- Supervisor management: 2 x 100/1000 RJ-45, 1 x RS-232 serial RJ-45, 2 x USB 2.0
- PSU: 200-240V input, IEC 320 C19 connector, over 94% typical efficiency
- Maximum power consumption: 6500W
- Front-to-rear airflow
- Dimensions (H x W x D): 57.2 x 44.1 x 60.3 cm
- Weight: 49.9 kg chassis only, 132.5 kg fully configured
- Operating temperature: 0 to 40 C, relative humidity 5 to 95%
- Certifications: BSMI, CE, KCC, NRTL, RCM (AU/NZ), UKCA, VCCI
FAQs
Q: Does this bundle include line cards?
A: No. The bundle includes the 13RU chassis, 4x 3KW AC power supplies, 4 fabric modules with fans, and one supervisor with SSD. Line cards are ordered separately to suit your port speed and density needs.
Q: What airflow direction does this bundle use?
A: This bundle uses front-to-rear airflow, designed for data centre hot and cold aisle layouts.
Q: What power supplies are included and what supply do they need?
A: The bundle includes four 3000W AC Titanium power supplies (PWR-3KT-AC-BLUE). They require 200-240V single phase input at 50/60 Hz and use an IEC 320 C19 connector.
Q: How many ports can the chassis support?
A: With line cards installed, the chassis supports up to 256 x 100GbE ports or up to 1,024 x 25/10GbE ports, with up to 51.2 Tbps of throughput.
Q: Does the chassis support supervisor redundancy?
A: Yes. The chassis has two supervisor slots and supports 1+1 supervisor redundancy. This bundle includes one supervisor with SSD, and a second can be added for redundancy.
Q: What software runs on this switch?
A: It runs Arista EOS, which supports CloudVision, zero touch provisioning, LANZ, VXLAN, OpenFlow and eAPI automation.
