Arista

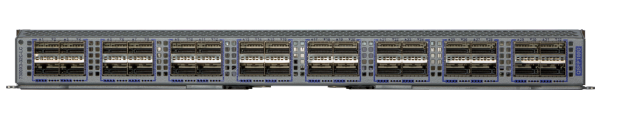

Arista DCS-7300X3-32C-LC | 7300X3 Line Card, 32 x 100GbE QSFP100, 6.4 Tbps

Arista DCS-7300X3-32C-LC | 7300X3 Line Card, 32 x 100GbE QSFP100, 6.4 Tbps

Authorised Arista Partner

SKU:DCS-7300X3-32C-LC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7300X3-32C-LC is a 7300X3 Series line card providing 32 x 100GbE QSFP100 ports at wire speed. It is built for high-density data centre spine and leaf deployments, delivering up to 6.4 Tbps and up to 4 billion packets per second of forwarding per line card, with up to 32MB of buffer memory.

The card plugs into the front of the 7300X3 modular chassis alongside the supervisor and power supply modules, and connects to all fabric modules through a passive mid-plane. The ports support 10GbE, 25GbE, 40GbE, 50GbE and 100GbE speeds, and the 7300X3 platform pairs a single-stage architecture with fair forwarding and wire-speed L2 and L3 performance.

Features

- Single-stage architecture with fair forwarding
- Wire-speed L2 and L3 forwarding
- Plugs into the front of the 7300X3 chassis alongside supervisor and power supply modules
- VXLAN, OpenFlow, DirectFlow and eAPI support
- CloudVision, Zero Touch Provisioning, LANZ microburst detection, DANZ advanced mirroring and sFlow
- Redundant fabric, fan, supervisor and grid power architecture at the chassis level

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 x 100GbE QSFP100 ports at wire speed
- Supports 10GbE, 25GbE, 40GbE, 50GbE and 100GbE speeds
- Up to 6.4 Tbps per line card
- Up to 4 billion packets per second forwarding per line card
- Up to 32MB of buffer memory per line card
- Connects to all fabric modules via passive mid-plane
- Latency below 2.5 usec (7300X3 Series)
- Front-to-rear airflow (chassis)

FAQs

Q: Which chassis does the DCS-7300X3-32C-LC fit?
A: It is a line card for the Arista 7300X3 Series modular chassis, installing in the front alongside the supervisor and power supply modules.

Q: How many ports and what speeds does this line card support?
A: It provides 32 x 100GbE QSFP100 ports at wire speed, and supports 10GbE, 25GbE, 40GbE, 50GbE and 100GbE speeds.

Q: What is the forwarding capacity of this line card?
A: Each line card delivers up to 6.4 Tbps and up to 4 billion packets per second, with up to 32MB of buffer memory.

Q: How does the line card connect to the chassis fabric?
A: It connects to all fabric modules via a passive mid-plane, so no cabling is needed between the line card and the fabric.

Q: Which management and telemetry features are supported on the platform?
A: The 7300X3 platform supports CloudVision, Zero Touch Provisioning, LANZ microburst detection, DANZ advanced mirroring, sFlow, VXLAN, OpenFlow, DirectFlow and eAPI.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
