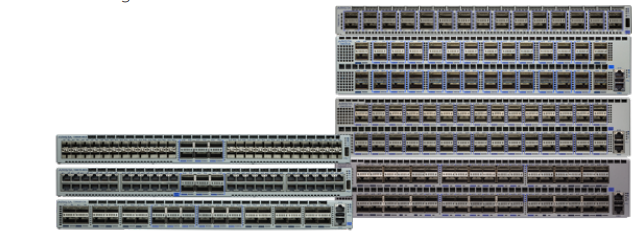

Arista DCS-7280TRA-48C6-M# | 7280R 48-Port 10GbE RJ45 Data Centre Switch, 6x 100G QSFP, 32GB, SSD
Arista DCS-7280TRA-48C6-M# | 7280R 48-Port 10GbE RJ45 Data Centre Switch, 6x 100G QSFP, 32GB, SSD
Authorised Arista Partner
SKU:DCS-7280TRA-48C6-M#
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista 7280TRA-48C6 is a fixed 1RU data centre switch router from the 7280R Series, built for top-of-rack and leaf deployments that need 10GBASE-T copper connectivity with high-speed uplinks. It provides 48 wire-speed 100Mb/1G/10G RJ45 ports and six QSFP100 uplink ports, with 2.16 Tbps of throughput and 720 Mpps forwarding. This -M# variant adds expanded memory and an SSD, with configurable fans and power supplies so airflow direction and AC or DC power can be chosen at order.
Running Arista EOS with AlgoMatch, the switch delivers scalable ACLs, policy-based forwarding and deep telemetry on a 4 GB packet buffer with virtual output queues. The QSFP100 ports operate in 100GbE, 40GbE, 25GbE or 10GbE modes for flexible uplink and breakout designs. Redundant hot-swap power supplies and fans support resilient, always-on operation.
Features
Features
- Ultra-deep packet buffer with virtual output queues per port to eliminate head-of-line blocking
- Wire-speed Layer 2 and Layer 3 forwarding
- 128-way ECMP, MLAG, VXLAN bridging and routing, VRF, BGP, OSPF and IS-IS
- Arista AlgoMatch for scalable ACLs, policy-based forwarding and telemetry
- LANZ microburst detection, DANZ advanced mirroring and TAP aggregation
- CloudVision, Zero Touch Provisioning, Advanced Event Management and VM Tracer
- IEEE 1588 PTP precision timing
- Arista EOS single-binary image with Linux shell, Python, eAPI and OpenConfig extensibility
- Hot-swappable redundant power supplies and fans with reversible airflow
- Optional SSD for logging and data capture
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 48 x 10GBASE-T RJ45 ports (100Mb/1G/10G)
- 6 x QSFP100 uplink ports (6x100GbE, 24x25GbE, 6x40GbE or 24x10GbE modes)
- 2.16 Tbps throughput (full duplex)
- 720 Mpps packet forwarding rate
- Latency from 3.8 us
- 4 GB packet buffer memory
- Quad-core x86 CPU with expanded system memory and SSD storage
- 4 GB flash storage
- AlgoMatch supported
- EOS feature license group 2, minimum EOS 4.19.0
- 2 x USB ports, 1 x 100/1000 management port, 1 x RJ-45 RS-232 serial port
- 1RU form factor, 19 x 1.75 x 16 in (48.3 x 4.4 x 40.6 cm), 10.1 kg
- 2 hot-swap power supplies (1+1) and 4 hot-swap fans (N+1)
- Configurable front-to-rear or rear-to-front airflow
- Typical power draw 290 W, maximum 405 W
- MAC address table 768K, IPv4/IPv6 host routes 768K, 24K ACL entries per forwarding engine
- Operating temperature 0 to 40 C
FAQs
Q: How many ports does the DCS-7280TRA-48C6-M# provide?
A: It provides 48 x 10GBASE-T RJ45 ports supporting 100Mb, 1G and 10G speeds, plus 6 x QSFP100 uplink ports.
Q: What speeds can the QSFP100 uplink ports run at?
A: Each QSFP100 port supports 100GbE, and the ports can also operate in 40GbE, 25GbE or 10GbE modes using appropriate optics or breakout cables, up to 24 x 25GbE or 24 x 10GbE across the six ports.
Q: What does the -M# variant add?
A: The -M# variant adds expanded system memory and an SSD for logging and data capture, and uses configurable fans and power supplies so airflow direction and AC or DC power can be selected at order.
Q: Does this switch support redundant power and cooling?
A: Yes. It has two hot-swap power supplies in a 1+1 redundant configuration and four hot-swap fans in an N+1 configuration, with reversible front-to-rear or rear-to-front airflow.
Q: What operating system does it run?
A: It runs Arista EOS, a single-binary network operating system with a Linux shell, Python scripting, eAPI and OpenConfig support. The platform requires EOS 4.19.0 or later.
Q: Is the switch suited to Layer 3 and policy-heavy designs?
A: Yes. It forwards at wire speed at Layer 2 and Layer 3 and supports AlgoMatch for scalable ACLs and policy-based forwarding, along with VXLAN, VRF, MLAG, ECMP and BGP/OSPF/IS-IS routing.
