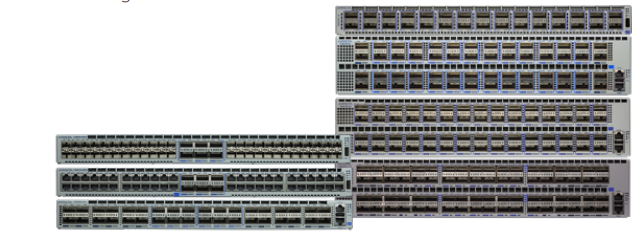

Arista DCS-7280TRA-48C6# | 7280R 48-Port 10GbE RJ45 Switch, 6x 100G QSFP, AlgoMatch

Arista DCS-7280TRA-48C6# | 7280R 48-Port 10GbE RJ45 Switch, 6x 100G QSFP, AlgoMatch

Authorised Arista Partner

SKU:DCS-7280TRA-48C6#

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7280R 48-port 10GbE RJ45 switch router pairs 48 10GBASE-T ports (100Mb/1G/10G) with 6 QSFP100 uplinks in a 1U fixed-configuration chassis. Built for data centre top-of-rack and aggregation roles, it delivers 2.16 Tbps throughput, 720 Mpps forwarding and latency from 3.8 us, with AlgoMatch technology and deep packet buffers. This is the configurable fans and PSU model, so you select the fan trays and power supplies to suit your airflow and power requirements.

The 7280R architecture combines a 4 GB packet buffer with a quad-core x86 CPU and 8 GB of system memory (32 GB optional), and runs Arista EOS. Uplink ports support 100GbE, 50GbE, 40GbE and 25GbE operation, and the chassis supports 1+1 redundant hot-swap power supplies and N+1 redundant hot-swap fans with reversible airflow.

Features

- AlgoMatch technology for scalable, flexible ACL and forwarding table use
- Deep-buffer 7280R series switch router architecture
- 48 multi-rate 10GBASE-T ports for existing copper cabling
- 6 x QSFP100 uplinks with 100G, 50G, 40G and 25G port modes
- Reversible airflow with N+1 redundant hot-swap fans
- 1+1 redundant hot-swap AC or DC power supplies
- Runs Arista EOS
- Configurable fans and PSU so airflow direction and power type can be matched to the rack

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 48 x 10GBASE-T RJ45 ports (100Mb/1G/10G)
- 6 x QSFP100 uplink ports
- Up to 6 x 100GbE, 12 x 50GbE, 6 x 40GbE or 24 x 25GbE ports
- Throughput: 2.16 Tbps
- Packet forwarding: 720 Mpps
- Latency: from 3.8 us
- Packet buffer memory: 4 GB
- CPU: quad-core x86
- System memory: 8 GB (32 GB optional)
- Flash storage: 4 GB, SSD storage option available
- 2 x USB ports, 1 x 100/1000 management port, 1 x RS-232 serial port (RJ-45)
- 2 hot-swap power supplies (1+1 redundant), 500W AC or 500W DC options
- 4 hot-swap fans (N+1 redundant), fan tray FAN-7000H-F/R, reversible airflow
- Typical / maximum power draw: 290 W / 405 W
- Form factor: 1U, 48.3 x 4.4 x 40.6 cm (W x H x D)
- Weight: 10.1 kg
- EOS feature licence: Group 2, minimum EOS 4.19.0

FAQs

Q: Does this switch include fans and power supplies?
A: This is the configurable fans and PSU model, so the fan trays and power supplies are selected separately to suit your airflow direction and AC or DC power requirements. The chassis supports 2 hot-swap power supplies (1+1) and 4 hot-swap fans (N+1).

Q: What speeds do the 48 RJ45 ports support?
A: The 48 10GBASE-T RJ45 ports support 100Mb, 1G and 10G operation over copper.

Q: What can the QSFP100 uplinks run at?
A: The 6 QSFP100 ports support 100GbE, and the platform supports up to 12 x 50GbE, 6 x 40GbE or 24 x 25GbE port configurations.

Q: Which operating system does it run?
A: It runs Arista EOS, with a minimum release of EOS 4.19.0 and a Group 2 feature licence.

Q: Is the airflow direction adjustable?
A: Yes. The platform supports reversible airflow, selected through the fan tray (FAN-7000H-F/R) and power supply choice.

Q: What is AlgoMatch?
A: AlgoMatch is Arista's algorithmic table technology on the 7280R series, enabling scalable and flexible ACL and forwarding table use without relying only on dedicated TCAM resources.
