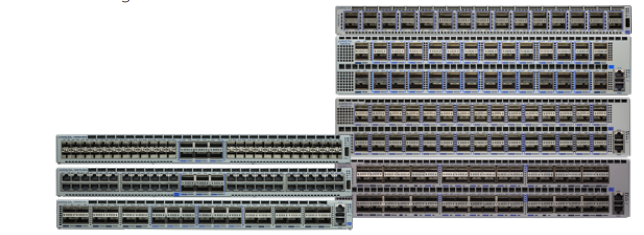

Arista DCS-7280SRA-48C6-M# | 7280RA 48x10G SFP+ Switch, 6x100G QSFP, SSD
Arista DCS-7280SRA-48C6-M# | 7280RA 48x10G SFP+ Switch, 6x100G QSFP, SSD
Authorised Arista Partner
SKU:DCS-7280SRA-48C6-M#
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista 7280RA 48-port 10G SFP+ data centre switch router delivers 48 x 1/10GbE SFP+ ports and 6 x 100GbE QSFP100 uplinks in a 1RU chassis, with 2.16 Tbps of wire-speed throughput and 720 Mpps forwarding. Built for leaf, spine and edge roles, it pairs AlgoMatch policy and ACL scaling with a deep 4 GB packet buffer and Arista EOS. This -M# variant adds expanded system memory and an SSD, with airflow direction and power supply type selected at order.
The QSFP100 uplinks can run in 100G, 50G, 40G, 25G or 10G modes, so the switch adapts to mixed-speed deployments. Hot-swap 1+1 redundant power supplies, N+1 redundant fans and reversible airflow support resilient operation, and NEBS compliance suits demanding facilities. EOS provides VXLAN, MLAG, BGP, OSPF, IS-IS, VRF, CloudVision integration and Zero Touch Provisioning.
Features
Features
- Arista AlgoMatch for scalable ACL, policy-based forwarding and telemetry
- Deep-buffer virtual output queue (VOQ) architecture eliminating head-of-line blocking
- Arista EOS with single binary image, stateful fault containment and repair, and full Linux shell access
- VXLAN bridging and routing, VM Tracer and CloudVision integration
- LANZ microburst detection, DANZ advanced mirroring and TAP aggregation, IEEE 1588 PTP and sFlow
- 128-way ECMP, MLAG, BGP, OSPF, IS-IS, VRF and PBR
- Zero Touch Provisioning and Advanced Event Management
- Flexible QSFP100 uplinks supporting 10/25/40/50/100GbE modes
- Hot-swap redundant PSUs and fans with reversible airflow
- Supports 100M/1G/10G/25G/40G/100G optics, DACs and AOCs per the supported optics list
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 48 x SFP+ (1/10GbE) ports
- 6 x QSFP100 ports (6x100GbE, 12x50GbE, 6x40GbE, 24x25GbE or 24x10GbE modes)
- 2.16 Tbps wire-speed throughput (full duplex)
- 720 Mpps packet forwarding rate
- Latency from 3.8 us
- 4 GB packet buffer memory
- System memory: 8 GB standard (32 GB optional); -M variant includes expanded memory
- SSD storage included in -M variant, plus 4 GB flash
- CPU: Quad-Core x86
- MAC addresses: 768K; IPv4/IPv6 host routes: 768K each
- Management: 1 x 100/1000 port, 1 x RS-232 (RJ-45) console, 2 x USB
- 2 hot-swap power supplies (1+1 redundant), 500W AC or 500W DC
- 4 hot-swap fans (N+1 redundant), reversible airflow (front-to-rear or rear-to-front)
- Typical / max power draw: 313 W / 410 W
- 1RU, 19 x 1.75 x 16 in (48.3 x 4.4 x 40.6 cm), 8.9 kg
- NEBS compliant
- Operating temperature: 0 to 40 C
- EOS feature license: Group 2, minimum EOS version 4.19.0
FAQs
Q: What does the -M# suffix mean on this Arista 7280RA?
A: The -M variant includes expanded system memory and an SSD. The # indicates that airflow direction and power supply type (500W AC or DC) are selected at order.
Q: What port speeds does the 7280RA 48x10G switch support?
A: The 48 SFP+ ports support 1G and 10G. The 6 QSFP100 ports can operate as 6x100G, 12x50G, 6x40G, 24x25G or 24x10G, depending on the optics or breakout cables used.
Q: Does this switch support AlgoMatch?
A: Yes. AlgoMatch is supported, enabling scalable ACL, policy-based forwarding and telemetry.
Q: How much packet buffer does it have?
A: It has 4 GB of packet buffer memory with a deep-buffer VOQ architecture that avoids head-of-line blocking.
Q: Is the power supply and cooling redundant?
A: Yes. It has two hot-swap 500W power supplies in a 1+1 redundant arrangement and four hot-swap fans in an N+1 arrangement, with reversible airflow.
Q: Which operating system does it run?
A: It runs Arista EOS, with a minimum version of 4.19.0 and an EOS Group 2 feature licence.
