Arista DCS-7280SRA-48C6-F | 7280RA 48-Port 10G SFP+ Switch, 6x 100G QSFP, AC, Front-to-Rear
Arista DCS-7280SRA-48C6-F | 7280RA 48-Port 10G SFP+ Switch, 6x 100G QSFP, AC, Front-to-Rear
Authorised Arista Partner
SKU:DCS-7280SRA-48C6-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

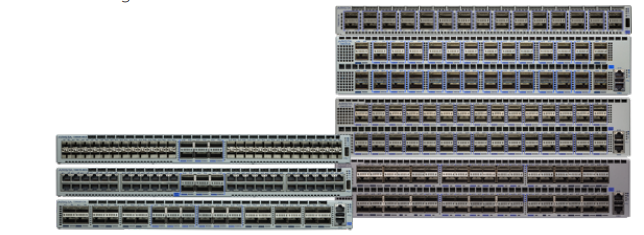

The Arista 7280RA 48-port 10G SFP+ data centre switch with 6x 100G QSFP100 uplinks is a fixed-configuration 1RU switch router built for leaf and spine, edge and routing roles. It delivers 2.16 Tbps of wire-speed throughput with deep 4 GB packet buffers, AlgoMatch policy scaling and large routing tables. This SKU ships with front-to-rear airflow and two hot-swap 500W AC power supplies in a 1+1 redundant configuration, without the optional expansion memory or SSD.
The 6 QSFP100 ports support 100GbE, 50GbE, 40GbE and 25GbE/10GbE breakout modes, so one platform can serve both 10G server access and high-speed uplinks. Arista EOS provides a single binary image with Linux shell access and programmability through eAPI, Python, Go and OpenConfig, with support for Zero Touch Provisioning and CloudVision.
Features
Features
- Virtual Output Queue (VoQ) architecture with deep packet buffers eliminates head-of-line blocking
- AlgoMatch for scalable access control, policy-based forwarding and telemetry
- 768K MAC addresses and 768K IPv4/IPv6 host routes, over 1M IPv4 unicast LPM routes
- 128-way ECMP and MLAG support
- VXLAN bridging and routing, VM Tracer VMware integration
- LANZ microburst detection, DANZ advanced mirroring and TAP aggregation
- IEEE 1588 PTP precision timing
- Zero Touch Provisioning and CloudVision support
- Arista EOS single binary image with Linux shell access and extensibility (Python, Go, C++, OpenConfig, eAPI)
- Hot-swap redundant power supplies and fans, NEBS compliant, tool-less rails
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 48 x SFP+ (1/10GbE) ports
- 6 x QSFP100 ports (6x100GbE, 6x40GbE, 12x50GbE or 24x25GbE/10GbE breakout modes)
- 2.16 Tbps wire-speed throughput (full duplex)
- 720 Mpps packet forwarding rate
- 4 GB packet buffer memory
- Latency from 3.8 us
- Quad-core x86 CPU, 8 GB system memory
- 4 GB flash storage, 2 x USB ports
- 1 x 100/1000 management port, 1 x RS-232 serial port (RJ-45)
- 2 x hot-swap 500W AC power supplies (1+1 redundant), 100-240V AC, 50/60 Hz
- 4 x hot-swap fans (N+1 redundant), front-to-rear airflow
- Typical power draw 313 W, maximum 410 W
- 1RU form factor, 48.3 x 4.4 x 40.6 cm, 8.9 kg
- NEBS compliant
- Operating temperature 0 to 40 C
- EOS feature license Group 2, minimum EOS 4.19.0
FAQs
Q: What airflow direction does the DCS-7280SRA-48C6-F use?
A: This SKU uses front-to-rear airflow with four hot-swap N+1 redundant fans (FAN-7000H-F/R), so it suits racks where the port side faces the cold aisle.
Q: How are the 100G QSFP100 ports used?
A: Each of the 6 QSFP100 ports can run as 100GbE, or in breakout modes of 40GbE, 50GbE or 25GbE/10GbE, giving up to 12 x 50GbE or 24 x 25GbE/10GbE ports from the uplinks.
Q: Are the power supplies redundant?
A: Yes. The switch includes two hot-swap 500W AC power supplies (100-240V AC, 50/60 Hz) in a 1+1 redundant configuration.
Q: Do the SFP+ ports support 1G optics?
A: The 48 SFP+ ports are 1/10GbE capable, so they accept both 1G and 10G SFP/SFP+ modules.
Q: What is AlgoMatch and why does it matter?
A: AlgoMatch is Arista's algorithmic match technology that scales access control lists, policy-based forwarding and telemetry far beyond traditional TCAM limits, which is useful in large data centre and edge deployments.
Q: Does this model include the optional expansion memory or SSD?
A: No. This SKU ships with the standard 8 GB system memory and 4 GB flash. The 32 GB memory and SSD are optional upgrades on the platform.
