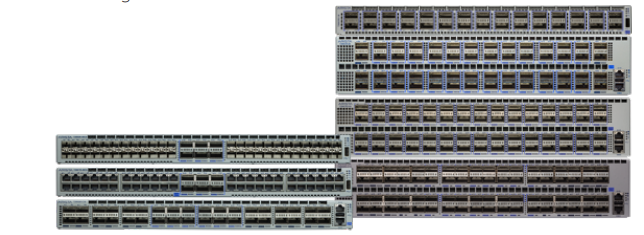

Arista DCS-7280SRA-48C6# | 7280R 48-Port 10G SFP+ Switch, 6x 100G QSFP100, AlgoMatch
Arista DCS-7280SRA-48C6# | 7280R 48-Port 10G SFP+ Switch, 6x 100G QSFP100, AlgoMatch
Authorised Arista Partner
SKU:DCS-7280SRA-48C6#
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista 7280SRA-48C6 is a 1RU 7280R Series data centre switch router with 48 SFP+ ports for 1/10GbE and six QSFP100 ports for 100GbE uplinks. It delivers 2.16 Tbps of full-duplex throughput and 720 Mpps forwarding, with deep packet buffers and AlgoMatch for wire-speed L2/L3 forwarding and large-scale policy, ACL and telemetry capacity. This variant has configurable fans and power supplies.
The QSFP100 ports support 100/50/40/25/10GbE breakout flexibility, allowing a mix of 25G and 100G server and spine connections. It runs Arista EOS with CloudVision, Zero Touch Provisioning and full Linux shell access, and includes hot-swap redundant power supplies and fans with selectable airflow direction for flexible rack deployment.
Features
Features
- Deep packet buffers with virtual output queue (VoQ) architecture to eliminate head-of-line blocking
- AlgoMatch for scalable access control, policy-based forwarding and telemetry
- Wire-speed L2 and L3 forwarding with up to 128-way ECMP
- VXLAN bridging and routing gateway with VM Tracer integration
- LANZ microburst detection and DANZ advanced mirroring and TAP aggregation
- IEEE 1588 PTP precision timing
- Arista EOS with CloudVision, Zero Touch Provisioning, Advanced Event Management and full Linux shell access
- Hot-swappable redundant power supplies and fans with selectable front-to-rear or rear-to-front airflow
- QSFP100 ports support 100/50/40/25/10GbE breakout flexibility
- Designed for NEBS compliance
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 48 x SFP+ ports (1/10GbE)
- 6 x QSFP100 ports (6x100GbE, 12x50GbE, 6x40GbE, 24x25GbE or 24x10GbE)
- 2.16 Tbps throughput (full duplex)
- 720 Mpps forwarding rate
- 4 GB packet buffer memory
- Latency from 3.8 us
- Quad-core x86 CPU, 8 GB system memory (32 GB optional)
- 4 GB flash storage, SSD option available
- 2 x USB ports, 1 x 100/1000 management port, 1 x RJ-45 RS-232 serial port
- 2 x 500W hot-swap power supplies (1+1 redundant)
- 4 hot-swap fans (N+1 redundant), reversible airflow
- MAC address table: 768K entries
- IPv4 unicast LPM routes: over 1M
- Typical / max power draw: 313 W / 410 W
- 1RU, 19 x 1.75 x 16 in (48.3 x 4.4 x 40.6 cm), 8.9 kg
- Operating temperature: 0 to 40 C
- Minimum EOS version: 4.19.0
FAQs
Q: What port speeds does the DCS-7280SRA-48C6# support?
A: The 48 SFP+ ports support 1GbE and 10GbE. The six QSFP100 ports support 100GbE, 50GbE, 40GbE, 25GbE and 10GbE, with breakout options of up to 24 x 25GbE or 24 x 10GbE.
Q: What does AlgoMatch provide on this switch?
A: AlgoMatch is Arista's algorithmic lookup technology. It enables scalable access control lists, policy-based forwarding and telemetry at wire speed, with up to 24K ACL entries per forwarding engine.
Q: Are the power supplies and fans redundant?
A: Yes. It has two hot-swap 500W power supplies in a 1+1 arrangement and four hot-swap fans in an N+1 arrangement. Airflow can be configured front-to-rear or rear-to-front.
Q: What does the # suffix in the part number mean?
A: The # suffix denotes the variant with configurable fans and power supplies, so you can select the airflow direction and power supply type for your rack.
Q: What operating system does it run?
A: It runs Arista EOS, which includes CloudVision integration, Zero Touch Provisioning and full Linux shell access. The minimum supported EOS version is 4.19.0.
Q: Is it suitable for 100G spine or uplink connectivity?
A: Yes. The six QSFP100 ports provide 100GbE uplinks, and together with the deep packet buffers and 2.16 Tbps throughput, make it suited to leaf and aggregation roles in data centre networks.
