Arista

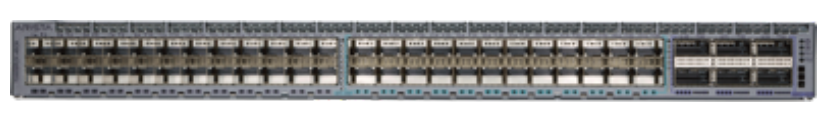

Arista DCS-7280SR2K-48C6-M-R | 7280R2 Data Centre Switch, 6x100G QSFP, 24x25G, 24x10G, SSD, Rear-to-Front

Arista DCS-7280SR2K-48C6-M-R | 7280R2 Data Centre Switch, 6x100G QSFP, 24x25G, 24x10G, SSD, Rear-to-Front

Authorised Arista Partner

SKU:DCS-7280SR2K-48C6-M-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7280SR2K-48C6 is a 1RU data centre switch router built for high-density 10G, 25G and 100G environments. It provides 24 x 1/10GbE SFP+ ports, 24 x 1/10/25GbE SFP ports and 6 x 100GbE QSFP100 uplinks, delivering 2.88 Tbps of throughput and 835 Mpps forwarding with latency from 3.8 us. This -M-R variant adds expanded memory and an SSD, with rear-to-front airflow and two hot-swap AC power supplies.

A deep-buffer virtual output queue architecture with 4 GB of packet buffer eliminates head-of-line blocking, while 32 GB of system memory and large routing tables suit demanding leaf, spine and edge roles. It runs Arista EOS with VXLAN, MLAG, 128-way ECMP and VRF support, and includes AlgoMatch and Accelerated sFlow. The chassis is NEBS compliant with redundant hot-swap power supplies and fans.

Features

- Deep-buffer virtual output queue (VOQ) architecture eliminates head-of-line blocking
- Runs Arista EOS, a single-binary, modular Linux-based network OS with stateful fault containment and repair
- SFP25 ports configurable for 25G or 10G/1G in groups of 4, with FC and RS FEC
- QSFP100 ports support 10/25/40/50/100GbE speeds
- AlgoMatch for scalable ACL, policy-based forwarding and telemetry
- VXLAN bridging and routing, MLAG, 128-way ECMP and VRF support
- LANZ microburst detection, DANZ advanced mirroring and TAP aggregation, IEEE 1588 PTP and Accelerated sFlow
- Zero Touch Provisioning, CloudVision integration, eAPI and Advanced Event Management
- Hot-swappable redundant power supplies and fans, with tool-less rails

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 24 x SFP+ (1/10GbE) ports
- 24 x SFP25 (1/10/25GbE) ports
- 6 x QSFP100 ports (100GbE, 40GbE, 25GbE or 10GbE modes)
- Throughput: 2.88 Tbps full duplex, 835 Mpps
- Latency: from 3.8 us
- CPU: Quad-Core x86
- System memory: 32 GB, packet buffer: 4 GB, flash: 4 GB, SSD included
- Scale: 768K MAC addresses, 768K IPv4/IPv6 host routes, 2M IPv4 LPM routes, 1.4M IPv6 LPM routes
- 1 x 100/1000 management port, 1 x RS-232 RJ-45 console, 1 x USB port
- 2 x hot-swap AC power supplies (1+1 redundant), 4 x hot-swap fans (N+1)
- Rear-to-front airflow
- Power draw: 215 W typical, 370 W maximum
- Dimensions: 48.3 x 4.4 x 40.6 cm (W x H x D), 1RU, weight 9 kg
- NEBS compliant
- EOS feature license group: Group 2, minimum EOS 4.20.4
- Operating temperature: 0 to 40 C

FAQs

Q: What airflow direction does this model use?
A: This SKU uses rear-to-front airflow (the -R variant). Make sure the airflow direction matches your hot and cold aisle layout before deployment.

Q: How does the -M variant differ from the standard model?
A: The -M variant includes expanded memory (32 GB of system memory) and an SSD, in addition to the standard 4 GB packet buffer.

Q: What port speeds does this switch support?
A: The 24 SFP+ ports run at 1/10GbE, the 24 SFP25 ports run at 1/10/25GbE, and the 6 QSFP100 ports support 10/25/40/50/100GbE speeds.

Q: Are the power supplies redundant and hot-swappable?
A: Yes. This SKU includes two AC power supplies in a 1+1 redundant arrangement, plus four hot-swap fans in N+1 redundancy.

Q: What operating system does it run?
A: It runs Arista EOS, which supports VXLAN, MLAG, VRF, 128-way ECMP, Zero Touch Provisioning and CloudVision integration. The minimum supported EOS version is 4.20.4.

Q: Can the 100G ports be broken out?
A: Yes. The QSFP100 ports can operate in 6x100GbE, 24x25GbE, 6x40GbE or 24x10GbE modes, giving flexibility for mixed-speed uplink and server connectivity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
