Arista

Arista DCS-7280QRA-C36S# | 7280R 36-Port 40GbE QSFP+ Data Centre Switch, AlgoMatch

Arista DCS-7280QRA-C36S# | 7280R 36-Port 40GbE QSFP+ Data Centre Switch, AlgoMatch

Authorised Arista Partner

SKU:DCS-7280QRA-C36S#

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

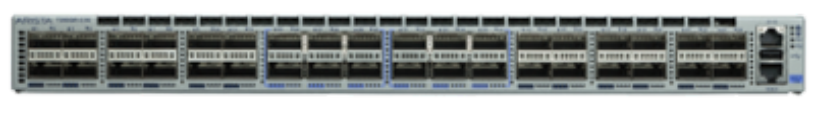

The Arista 7280RA (7280QRA-C36S) is a 1RU data centre switch router with 24 x 40GbE QSFP+ and 12 x QSFP100 ports, delivering up to 3.84 Tbps of throughput and a 1.44 Bpps forwarding rate. With 8 GB of packet buffer and AlgoMatch support, it suits deep-buffer leaf, spine and routing roles where flexible, large-scale ACL and lookup handling matters.

This SKU is the configurable chassis: fan trays and power supplies are ordered separately, so you can choose front-to-rear or rear-to-front airflow and AC or DC power to suit the rack. The switch runs Arista EOS, supports flexible 10GbE, 25GbE, 40GbE and 100GbE port combinations through breakout, and offers hot-swap redundant PSUs and N+1 fans.

Features

- Flexible QSFP+ (40GbE) and QSFP100 (100GbE) port combinations with breakout to 4x10GbE and 4x25GbE
- AlgoMatch technology for flexible, large-scale ACL and lookup handling
- 8 GB packet buffer for demanding data centre traffic patterns
- Reversible airflow with front-to-rear or rear-to-front fan trays
- Redundant hot-swap AC or DC power supplies and N+1 fans
- Optional SSD and 32 GB system memory
- Runs Arista EOS
- NEBS compliant

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 24 x 40GbE QSFP+ and 12 x QSFP100 ports (36 x QSFP total)
- Up to 12x100GbE, 36x40GbE, 24x50GbE, 48x25GbE or 120x10GbE
- Throughput: 3.84 Tbps (full duplex)
- Forwarding rate: 1.44 Bpps
- Latency: from 3.8 us
- Packet buffer: 8 GB
- System memory: 8 GB (32 GB optional), quad-core x86 CPU
- Flash storage: 4 GB, SSD option available
- Management: 1 x 100/1000 port, 1 x RS-232 serial (RJ-45), 2 x USB
- 1RU, reversible airflow, 2 x hot-swap PSU (1+1), 4 x hot-swap fans (N+1)
- Fan tray: FAN-7000H-F/R
- Power supplies: 747W AC or 1900W DC (ordered separately)
- Typical/max power draw: 419 W / 570 W
- Dimensions (WxHxD): 48.3 x 4.4 x 52.3 cm
- Weight: 10.7 kg
- EOS feature license: Group 2, minimum EOS 4.19.0
- Operating temperature: 0 to 40 C
- NEBS compliant

FAQs

Q: Does this switch include fans and power supplies?
A: No. This is the configurable chassis, so fan trays (FAN-7000H-F/R) and power supplies (747W AC or 1900W DC) must be ordered separately.

Q: Which port speeds does the DCS-7280QRA-C36S support?
A: It has 24 x 40GbE QSFP+ and 12 x QSFP100 ports. Depending on optics and breakout it supports up to 12x100GbE, 36x40GbE, 48x25GbE or 120x10GbE.

Q: Does it support AlgoMatch?
A: Yes. AlgoMatch is supported for flexible, large-scale ACL and lookup handling.

Q: Can I choose the airflow direction?
A: Yes. Airflow is reversible and is set by selecting front-to-rear or rear-to-front fan trays.

Q: How much packet buffer and memory does it have?
A: It has 8 GB of packet buffer and 8 GB of system memory, with 32 GB system memory and an SSD available as options.

Q: What software does it run?
A: It runs Arista EOS, with a minimum release of 4.19.0 and a Group 2 EOS feature license.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
