Arista

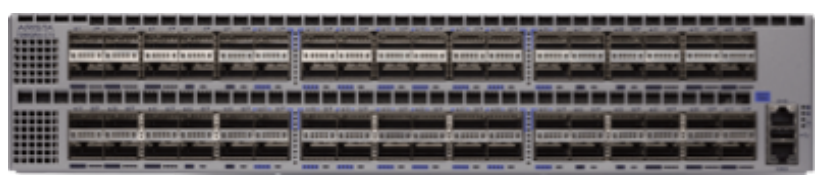

Arista DCS-7280QR-C72-R | 7280R 72x 40G QSFP+ Switch, 16x 100G, Rear-to-Front, 2x AC

Arista DCS-7280QR-C72-R | 7280R 72x 40G QSFP+ Switch, 16x 100G, Rear-to-Front, 2x AC

Authorised Arista Partner

SKU:DCS-7280QR-C72-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7280R 72-port 40G QSFP+ data centre switch router delivers up to 16 x 100GbE QSFP100 ports, 6.4 Tbps of full-duplex throughput and a 16GB deep packet buffer in a 2RU chassis. This SKU ships with rear-to-front airflow, dual 1900W AC hot-swap power supplies and two C19-C20 power cords, suiting hot-aisle-intake rack layouts, internet peering and inter-DC deployments.

Running Arista EOS, it provides wire-speed Layer 2 and Layer 3 forwarding, virtual output queues to avoid head-of-line blocking, large IPv4 and IPv6 route tables, VXLAN gateway functions and CloudVision integration. Hot-swappable N+1 fans, 1+1 redundant power and NEBS design support resilient, always-on operation.

Features

- Ultra-deep packet buffer with virtual output queues (VoQ) per port to eliminate head-of-line blocking
- Wire-speed L2 and L3 forwarding with 768K MAC addresses and 768K IPv4/IPv6 host routes
- Over 1M IPv4 and 928K IPv6 unicast LPM routes for internet peering and inter-DC use
- QSFP100 ports support 10/25/40/50/100GbE speeds (some modes not yet supported in EOS)
- Arista EOS with single binary image, stateful fault repair and in-service software updates
- VXLAN bridging and routing gateway, VM Tracer and CloudVision integration
- LANZ microburst detection, DANZ advanced mirroring and TAP aggregation, sFlow and IEEE 1588 PTP
- 128-way ECMP, MLAG, VRF, BGP, OSPF, IS-IS and PIM multicast support
- Zero Touch Provisioning, Advanced Event Management, eAPI, Python, Go and OpenConfig extensibility
- Over 93% efficient Platinum power supplies, hot-swappable PSUs and fans, designed for NEBS

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 72 x QSFP ports (56 x QSFP+ and 16 x QSFP100)
- Up to 16 x 100GbE, 72 x 40GbE or 160 x 10GbE (max 96 x 10GbE currently supported in EOS)
- Throughput: 6.4 Tbps (full duplex)
- Forwarding rate: 2.88 Bpps
- Latency: from 3.8 microseconds
- Packet buffer memory: 16GB
- System memory: 8 GB, flash storage: 4 GB
- Management: 1 x 100/1000 port, 1 x RS-232 serial (RJ-45), 1 x USB
- Power: 2 x 1900W AC hot-swap power supplies (1+1 redundant), typical 696W, maximum 1200W
- Cooling: 4 x hot-swap fans (N+1 redundant), rear-to-front airflow
- Included: 2 x C19-C20 power cables (2m)
- Form factor: 2RU, 19 x 3.5 x 22.2 in (48.3 x 8.9 x 56.3 cm), 47.3 lbs (21.5 kg)
- EOS feature license group: Group 3, minimum EOS version 4.18.1
- NEBS compliant
- Operating temperature: 0 to 40 C (32 to 104 F)

FAQs

Q: How many 100GbE ports does the DCS-7280QR-C72-R provide?
A: It has 16 QSFP100 ports that can run at 100GbE. The remaining 56 ports are QSFP+ for 40GbE, giving 72 QSFP ports in total.

Q: What airflow direction does this model use?
A: This SKU is rear-to-front airflow, supplied with the FAN-7002H-F/R fan tray, so air is drawn in at the port-side rear and exhausted at the front. Check it matches your rack's hot and cold aisle layout before ordering.

Q: What power supplies and cables are included?
A: It ships with two 1900W AC hot-swap power supplies in a 1+1 redundant arrangement, plus two 2m C19-C20 power cables.

Q: Can the QSFP ports be broken out to 10GbE?
A: Yes, the ports support 10GbE operation using breakout optics or cabling, up to 160 x 10GbE in hardware, with a maximum of 96 x 10GbE currently supported in EOS.

Q: How much packet buffer does it have?
A: It has 16GB of packet buffer memory with virtual output queues per port, which suits bursty data centre and peering traffic.

Q: What EOS version and licence group does it need?
A: It requires EOS 4.18.1 or later and falls under EOS feature licence Group 3.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
