Arista

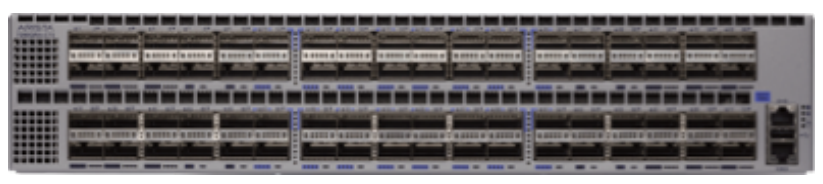

Arista DCS-7280QR-C72# | 7280R 72x 40GbE QSFP+ Data Centre Switch, Configurable Fans/PSU, 16x 100GbE

Arista DCS-7280QR-C72# | 7280R 72x 40GbE QSFP+ Data Centre Switch, Configurable Fans/PSU, 16x 100GbE

Authorised Arista Partner

SKU:DCS-7280QR-C72#

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The 7280QR-C72 is a 2U fixed-configuration data centre switch router from the Arista 7280R series, providing 72 QSFP ports (56 QSFP+ and 16 QSFP100) with up to 16 x 100GbE or 72 x 40GbE connectivity. With 6.4 Tbps full-duplex throughput, 2.88 Bpps forwarding and 16GB of deep packet buffer, it suits leaf, spine and aggregation roles in demanding data centre networks.

This is the configurable variant: fans and power supplies are selected separately, so you can choose the airflow direction and PSU option to suit your rack design. Running Arista EOS with CloudVision, LANZ and DANZ support, it delivers wire-speed unicast and multicast through a VOQ architecture that avoids head-of-line blocking, and is NEBS compliant.

Features

- Flexible 10/25/40/50/100GbE speeds using optics or breakout cables on QSFP100 ports
- Wire-speed unicast and multicast with VOQ architecture, avoiding head-of-line blocking
- 16GB deep dynamic packet buffering for bursty data centre traffic
- Arista EOS single-binary modular network OS with full Linux shell access
- Supports CloudVision, LANZ latency analysis and DANZ advanced mirroring
- Hot-swap redundant power supplies and fans with reversible airflow option
- NEBS compliant 2U design
- Configurable fan and PSU selection to match rack airflow and power requirements

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 72 x QSFP ports (56 x QSFP+ and 16 x QSFP100)
- Up to 16 x 100GbE, 32 x 50GbE, 72 x 40GbE, 64 x 25GbE or 160 x 10GbE
- 6.4 Tbps throughput (full duplex)
- 2.88 Bpps forwarding rate
- Latency from 3.8 us
- 16 GB packet buffer memory
- System memory: 8 GB (16 GB optional)
- Flash storage: 4 GB, SSD storage option available
- Multi-core x86 CPU
- Management: 1 x 100/1000 port, 1 x RS-232 serial (RJ-45), 1 x USB
- 2 x hot-swap power supplies (1+1 redundant)
- 4 x hot-swap fans (N+1 redundant), fan tray FAN-7002H-F/R
- Reversible airflow option
- Typical / maximum power draw: 696 W / 1200 W
- 2U, 48.3 x 8.9 x 56.3 cm (W x H x D), 21.5 kg
- Operating temperature 0 to 40 C, humidity 5 to 95%, altitude up to 3,000 m
- NEBS compliant
- EOS feature licence group 3, minimum EOS 4.18.1

FAQs

Q: What does the # at the end of the SKU mean?
A: The # denotes the configurable variant of the 7280QR-C72, where fans and power supplies are selected separately so you can choose the airflow direction and PSU option.

Q: Which port speeds does the DCS-7280QR-C72# support?
A: It has 72 QSFP ports (56 QSFP+ and 16 QSFP100), supporting up to 16 x 100GbE, 32 x 50GbE, 72 x 40GbE, 64 x 25GbE and 160 x 10GbE depending on optics and breakout cables used.

Q: How much packet buffer does this switch have?
A: It provides 16 GB of deep dynamic packet buffer memory, suited to bursty and high-fan-in data centre workloads.

Q: Does it support redundant power and cooling?
A: Yes. It supports 2 hot-swap power supplies in a 1+1 redundant arrangement and 4 hot-swap fans in an N+1 arrangement, with a reversible airflow option.

Q: What network operating system does it run?
A: It runs Arista EOS, a single-binary modular network OS with full Linux shell access, and supports CloudVision, LANZ and DANZ. The minimum EOS release is 4.18.1.

Q: What rack space and power does it need?
A: It is a 2U unit with typical power draw of 696 W and a maximum of 1200 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
