Arista

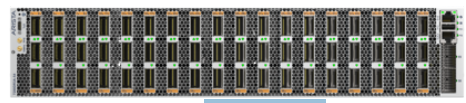

Arista DCS-7280DR3AK-54-DC-F | 7280R3A 54x400G QSFP-DD Switch Router, Large Routes, MACsec, Dual DC

Arista DCS-7280DR3AK-54-DC-F | 7280R3A 54x400G QSFP-DD Switch Router, Large Routes, MACsec, Dual DC

Authorised Arista Partner

SKU:DCS-7280DR3AK-54-DC-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7280R3A 54x400G QSFP-DD switch router is a 2RU fixed-configuration platform built for internet-edge, peering and WAN roles. It delivers 21.6 Tbps of throughput and 8.1 Bpps forwarding, with large routing table capacity and line-rate TunnelSec/MACsec encryption on all ports. This SKU is the dual DC power supply variant with front-to-rear airflow.

Breakout options extend the 54 QSFP-DD ports to up to 216 x 100G or 348 x 25/10G interfaces. A deep 24 GB packet buffer handles high-burst traffic, while PTP and SyncE precision timing, redundant hot-swap DC power supplies and N+1 hot-swap fans support demanding carrier and data centre deployments. The switch runs Arista EOS with accelerated sFlow.

Features

- Large route table capacity for internet-edge and peering/WAN roles
- Line-rate MACsec/TunnelSec encryption on all ports
- Precision timing with PTP and SyncE
- Deep 24 GB packet buffer for lossless, high-burst traffic handling
- Redundant hot-swap DC power supplies and N+1 hot-swap fans
- Flexible breakout to 100G, 50G, 40G and 25/10G interfaces
- Runs Arista EOS with accelerated sFlow

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 54 x QSFP-DD ports (up to 54 x 400G, 216 x 100G, 348 x 25/10G with breakouts)
- Throughput: 21.6 Tbps (43.2 Tbps FDX)
- Packet forwarding rate: 8.1 Bpps
- Latency: from 3.8 us
- Packet buffer memory: 24 GB
- CPU: eight-core x86, 64 GB system memory, 120 GB SSD
- Encryption: MACsec/TunnelSec on all ports
- Precision timing: PTP and SyncE with OCXO and PPS/10M/ToD inputs
- Power: 2 x hot-swap 3000W DC power supplies (1+1 redundant), PWR-3001-DC-RED
- Cooling: 4 x hot-swap fans (N+1 redundant), FAN-7012H, front-to-rear airflow
- Typical/max power draw: 933 W / 1715 W
- Management: 1 x 100/1000 management port, 1 x RJ-45 RS-232 serial, 1 x USB
- Form factor: 2RU, 43.99 x 8.79 x 76.39 cm, 27.94 kg
- Software: Arista EOS (minimum 4.29.1), Group 5 feature licences

FAQs

Q: What power supplies does this model use?
A: It ships with two hot-swap 3000W DC power supplies (PWR-3001-DC-RED) in a 1+1 redundant arrangement.

Q: What is the airflow direction?
A: This SKU uses front-to-rear airflow with four hot-swap N+1 redundant fans.

Q: How many 400G ports does it provide and can they be broken out?
A: It has 54 QSFP-DD ports supporting up to 54 x 400G, 216 x 100G or 348 x 25/10G interfaces using breakouts.

Q: Does it support encryption?
A: Yes. MACsec/TunnelSec encryption is supported on all ports at line rate.

Q: What does the K in the SKU indicate?
A: It denotes the variant with large routing table capacity and TunnelSec/MACsec encryption.

Q: What is the minimum EOS version?
A: The minimum supported Arista EOS release is 4.29.1.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
